    Liste der D|I|G|I|T|A|L (DEC) Module: M500 - M999:
    >Diese Listen dienen zur Information, welche Module der Hersteller produziert hat. Die Anzahl unserer lieferbaren Module werden in der Spalte "Lagerbestand" dokumentiert.
    These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".

    For further informations see:
    1. D|I|G|I|T|A|L Control handbook 1970, FLIP CHIP,
    2. D|I|G|I|T|A|L Control handbook 1969, Positive logic edition,
    3. D|I|G|I|T|A|L logic handbook 1975-76,

    4. all informations are printed by DIGITAL EQUIPMENT CORPORATION.

    These parts are used in INDAC8, PDP-8/L, PDP-8/I, PDP-9/L, PDP-9/I, PDP-10, PD-P11, PDP-12, PDP-14 and PDP-15
    Modulname width="65%">Bezeichnung System options QBUS Unibus Lagerbestand Bild
    M501 Schmitt trigger VT15, VL04 U 10 DEC UNIBUS Modul M501, Schmitt trigger
    M502 Negative input converter   U 0
    M503 Schmitt Trigger   U 0
    M506 Negative input converter   U 4 DEC UNIBUS Modul M506, Negative input converter
    M507 Medium speed negative bus converter PC15 U 0
    M508 Bus converter PC15 U 0
    M510 Positive bus receiver (for PC15) PC15 U 0
    M511 Positive bus receiver   U 0
    M514 Bus transceiver TU10 U 0
    M516 Positive bus receiver   U 0
    M517 Bus converter   U 0
    M518 Schmitt Trigger (PDP8)   U 0
    M521 K-Series to M-Series converter (Schmitt Trigger)   U 0

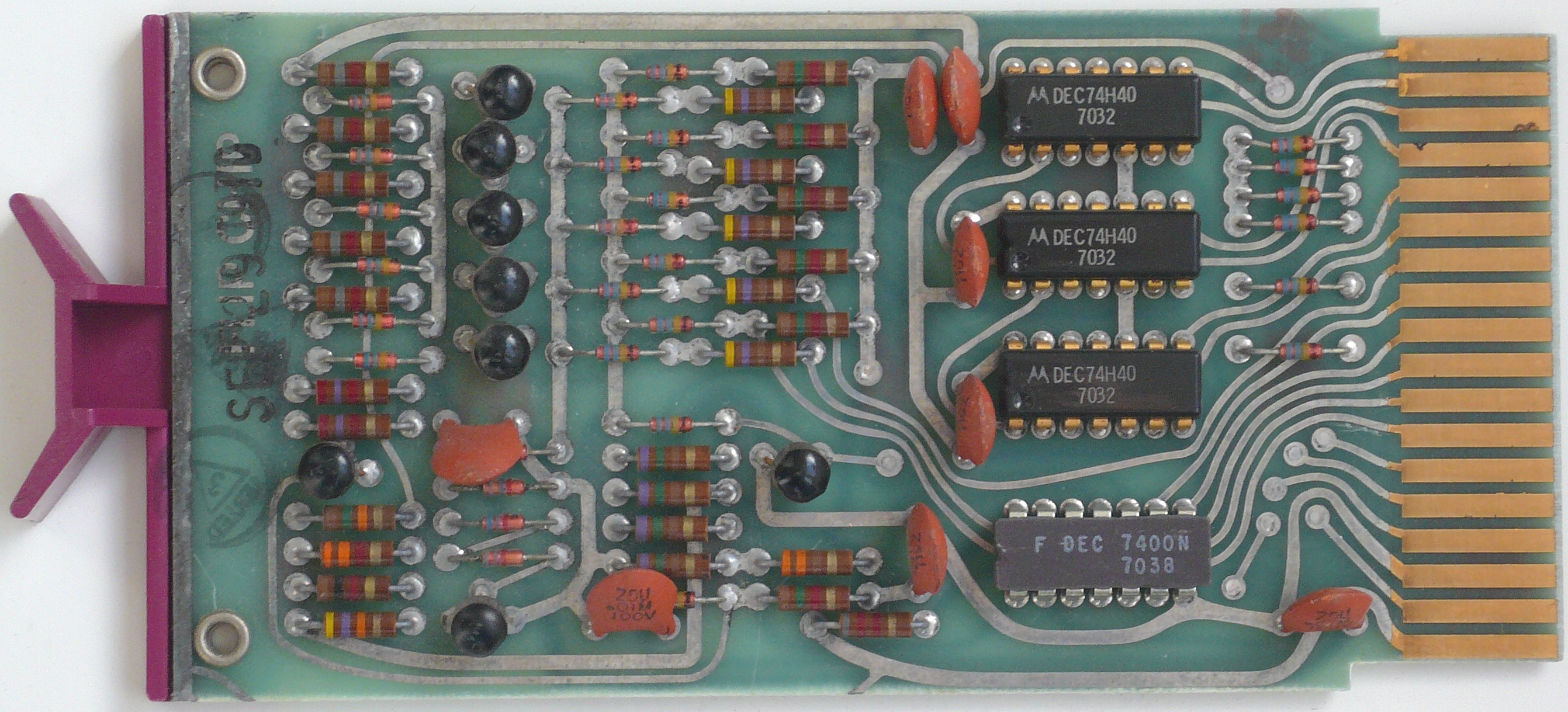

    M531 >Negative Bus converter   U 1 DEC UNIBUS Modul M531, Negative Bus converter
    M564 >-3V. I/O bus receiver   U 0
    M565 >Memory bus receiver   U 0
    M580 >Dry contact filters, UNIBUS   U 0
    M581 >Dry contact filters, UNIBUS   U 0
    M586 >Integral modem, 103 standard, UNIBUS DF11-BA U 0
    M587 >Async internal modem, answer-only, Bell CBS or CDT DF11-BB U 0
    M591 >5 Channel EIA to DEC, 4 Channel DEC to EIA   U 0
    M592 >I/O device select   U 0
    M594 >8 channel EIA-CCITT to DEC, 7 DEC to EIA-CCITT, 3V hysteresis DF11-A U 0
    M594-YB >M594 with 3V hysteresis DF11-A U 0
    M595 >Current mode Converter for 301 and 303 modem DF11 U 0
    M596 >20mA to DEC, DEC to 20mA, 4 channel each, replaced by M5960 DF11 U 0
    M597 >6 channel IBM receiver + bus DX11 U 0
    M598 >1 Channel optical coupled 20ma to DEC send/recv DF11-K U 0
    M599 >4 channel Xmit and Rec Western Union High Level, (+/6V 10mA) Telex DX11 U 0
    M602 >Pulse Generator (amplifier) VT15, VL04 U 0
    M603 >P.A. module   U 0
    M606 >Pulse Generator (for PC15) PC15 U 1 DEC UNIBUS Modul M606, Pulse Generator (for PC15) (18080 Byte)
    M611 >high speed Power inverter TM11
    KE15
    U 0
    M612 >Power driver module   U 0
    M616 >isolated AC switches   U 0
    M617 >4-input NOR buffers (x6)   U 6 DEC UNIBUS Modul M617, 4-input NOR buffers (x6)
    M621 >Data Bus Receiver (for LP15) LP15 U 1 DEC UNIBUS Modul M621, Data Bus Receiver (for LP15) (23211 Byte)
    M622 >Positive Pulse Receiver (for PC15) PC15 U 1 DEC UNIBUS Modul M622, Positive Pulse Receiver (for PC15) (23126 Byte)
    M623 >Bus driver   U 0 DEC UNIBUS Modul M623, Bus driver
    M624 >Bus driver PDP8 U 13 DEC UNIBUS Modul M624, Bus driver
    M627 >Power amplifier module TM11 U 0
    M629 >Bus drivers PC15 U 0
    M632 >positive input negative output Bus drivers PC15 U 0
    M633 >negative Bus drivers PC15 U 0
    M650 >Negative output converter   U 0
    M651 >Negative output converter   U 13 DEC UNIBUS Modul M651, Negative output converter
    M652 >Negative output converter   U 0
    M657 >DC driver   U 0
    M658 >DC driver   U 0
    M660 >Positive level cable driver   U 0
    M661 >Positive level driver U 0
    M663 >50 Ohm "OR" bus driver   U 0
    M664 >I/O bus driver   U 0
    M665 >Memory bus transmitter   U 0
    M666 >I/O bus reset   U 0
    M671 >M-series to K-series converter (One shot) multivibrator   U 0
    M684 >UDC Power   U 0
    M688 >UNIBUS POWER FAIL DRIVERS  width="65">  U 1 DEC UNIBUS Modul M688
    M700 >Manual timing generator   U 0
    M703 >Power fail   U 0
    M704 >Plotter Control   U 0
    M705 >Reader Control   U 0
    M706 >Teletype receiver (for PC15) PDP8
    PC15
    U 0 M706a.jpg (1068091 Byte)
    M707 >Teletype transmitter (for PC15) PDP8
    PC15
    U 0
    M708 >Clock control   U 0
    M709 >Clock counter   U 0
    M710 >Punch control   U 0
    M711 >Scope Control VC12 U 0
    M714 >Control for CR 81   U 0
    M715 >Reader clock   U 0
    M716 >Control for CR 81   U 0
    M717 >Display Control Card (for PC15)   U 0
    M718 >Bus interface for PDP-11   U 0
    M719 >KW-12 Clock Input Synchronizer   U 0
    M720 >Memory detection   U 0
    M721 >Bus interface 1, 8-bits gated in and out KA11 U 0
    M724 >11/20 bus and console control module KA11 U 0
    M725 >11/20 bus interface and IR module KA11 U 0
    M726 >11/20 IR decode module KA11 U 0
    M726-YA >M726 for KH11-A KH11-A U 0
    M727 >11/20 State control module KA11 U 0
    M727-YA >M727 for KH11-A KH11-A U 0
    M728 >11/20 Timing and states module KA11 U 0
    M728-YA >M728 for KH11-A KH11-A U 0
    M730 >Bus interface PDP-8 U 0
    M731 >Bus interface PDP-8 U 0
    M732 >Bus interface PDP-8 U 0
    M733 >Bus interface PDP-8 U 0
    M734 >I/O Bus input multiplexer, 3x12bit PDP-8 U 0 DEC UNIBUS Modul M734, I/O Bus input multiplexer, 3x12bit, von oben
    M735 >I/O Bus Transfer register PDP-8 U 0
    M736 >priority interrupt module PDP-8 U 0
    M737 >priority interrupt module, 12-bit eingabe interface PDP-8 U 0
    M738 >zählerpuffer interface PDP-8 U 0 DEC UNIBUS Modul M738, zählerpuffer interface, von oben
    M750 >Line I/O control   U 0
    M751 >Line register and control   U 0
    M752 >Instruction decoder   U 0
    M753 >Async modem line control   U 0
    M760 >A-D Control   U 0
    M763 >Write buffer TU10 U 0
    M765 >Read buffer TU10 U 0
    M767 >Clock and skew delay TU10 U 0
    M768 >Delay transmitter TU10 U 0
    M769 >Function control TU10 U 0
    M776 >Reader register (for PC15)   U 0
    M781 >UNIBUS, PC11 control board for KA11, (Requires M105 and M782 or M7820 or M7821) PC11 U 0
    M782 >UNIBUS interrupt controller, 6-bits, 1 per PDP11 peripheral KL11 U 0
    M783 >UNIBUS drivers, Bus transmitters 12 drivers, mixed logic DB11 U 1
    M784 >UNIBUS, Bus receiver (16 receivers), single in/single out DB11/TM11 U 0
    M784-YA > M784, non-inverting DB11/TM11 U 0
    M785 > Bus transceiver, 8 drivers/8 receivers (8-bit) DB11/TM11 U 0
    M786 > Device Register Interface KW11 U 0
    M787 > Line frequency clock (PDP11/45) KW11 U 0
    M788 > Control logic module MR11-A U 0
    M791 > LA30 interface for PDP-11 KW11 U 0
    M792 >UNIBUS 32-word, 16-bit ROM diode matrix, all diodes in (used in DD11) MR11 U 0
    M792-YA >ROM Diode Matrix, Papertape bootstrap loader for Teletype or high-speed papertape reader (PC11) MR11 U 0
    M792-YB >UNIBUS ROM Diode Matrix, Disk/DECtape bootstrap loader MR11 U 0
    M792-YC >UNIBUS ROM Diode Matrix, Card Reader bootstrap loader (CR11) CR11 U 0
    M792-YD >UNIBUS Bootstrap loader (11/45) (1 of 2) MR11-DB U 0
    M792-YE >UNIBUS Bootstrap loader (11/45) (2 of 2) MR11-DB U 0
    M792-YF >UNIBUS ROM Diode Matrix MF11 U 0
    M792-YH >UNIBUS TA11 bootstrap loader TA11 U 0
    M792-YJ >Bell special TM11 loader TM11 U 0
    M792-YK >VT20 bootstrap MR11 U 0
    M792-YL >RX11 floppy loader MR11 U 0
    M794 >Modem interface & control card DC11-D U 0
    M795 >WordCount & CurrentMemoryAddress Register TM11 U 0
    M796 >MASTER CONTROL, used with M782 TM11   1 DEC UNIBUS Modul m796
    M797 > Register Select Module, used with M105 TM11 U 0
    M798 > 16 non-inverting UNIBUS drivers TM11 U 0
    M799 >Display control for AA11 AA11 U 0
    M802 >replay output module UDC-15 U 0
    M803 >replay output module UDC-15 U 0
    M804 >replay output module UDC-15 U 0
    M805 >replay output module UDC-15 U 0
    M806 >replay output module UDC-15 U 0
    M807 >replay output module UDC-15 U 0
    M820 >11/20 data path control module KA11 U 0
    M821 >11/20 register control module KA11 U 0
    M822 >11/20 flag control module KA11 U 0
    M823 >11/20 codes data module KA11 U 0
    M824 11/20 priority module KA11 U 0
    M825 11/20 power failure and control module  KA11 U 0
    M826 75 to 250-ns clock with SR (8-phase clock) KE11-A U 0
    M827 CR-11/CM-11 card reader controller,(Requires M105 and M782 or M7820 or M7821) CR-11 U 0
    M832 Bus loads (always in last slot) PDP8 U 0
    M833 Timing generator PDP8 U/O 1 DEC UNIBUS Modul M833, Timing generator, von oben

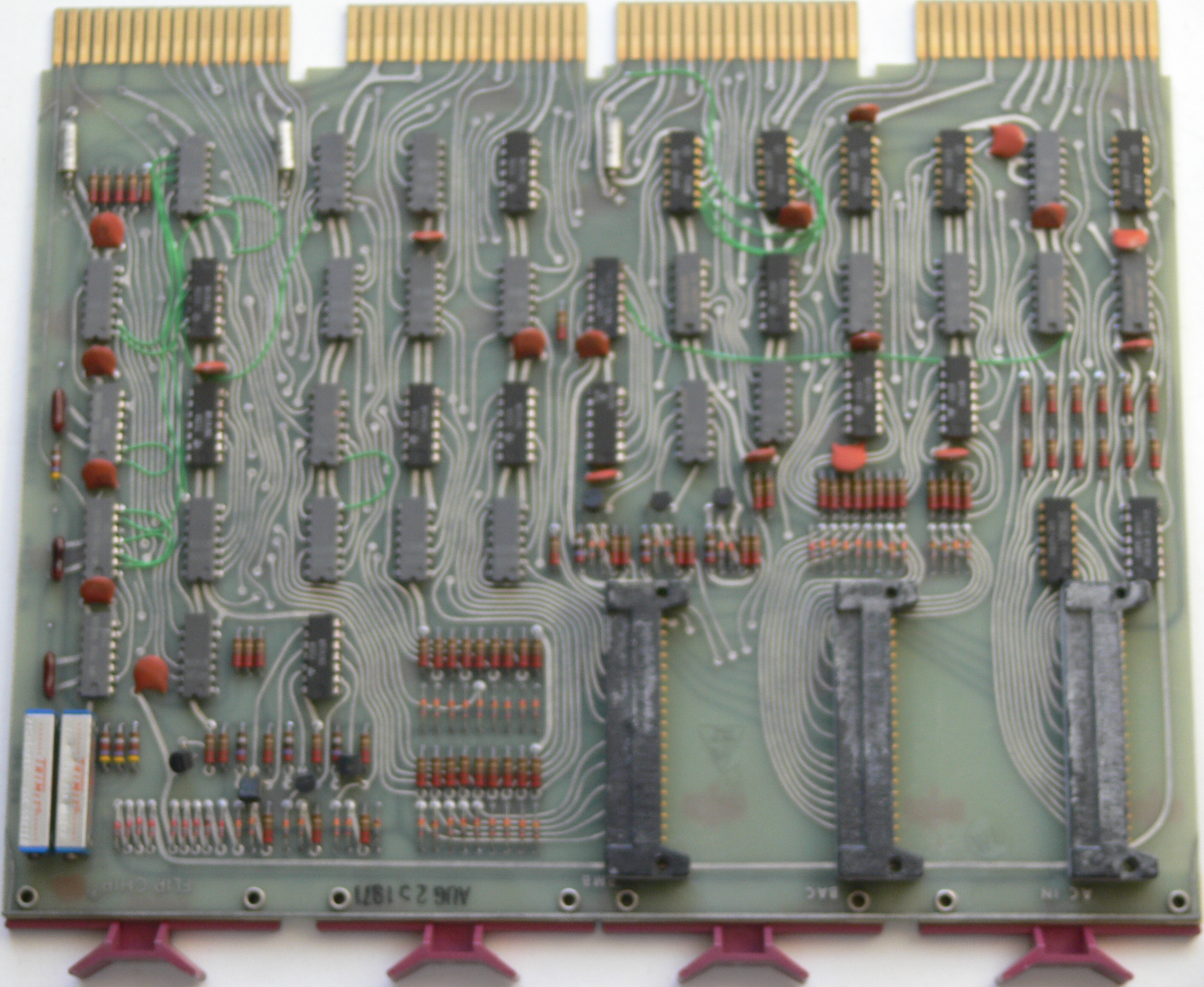

    M835 Positive I/O Bus interface M835C PDP8 U 0 M835.JPG (2313049 Byte)
    M837 EXTENSION, MEMORY FINE SHARE    U 0 M837.JPG (2550498 Byte)

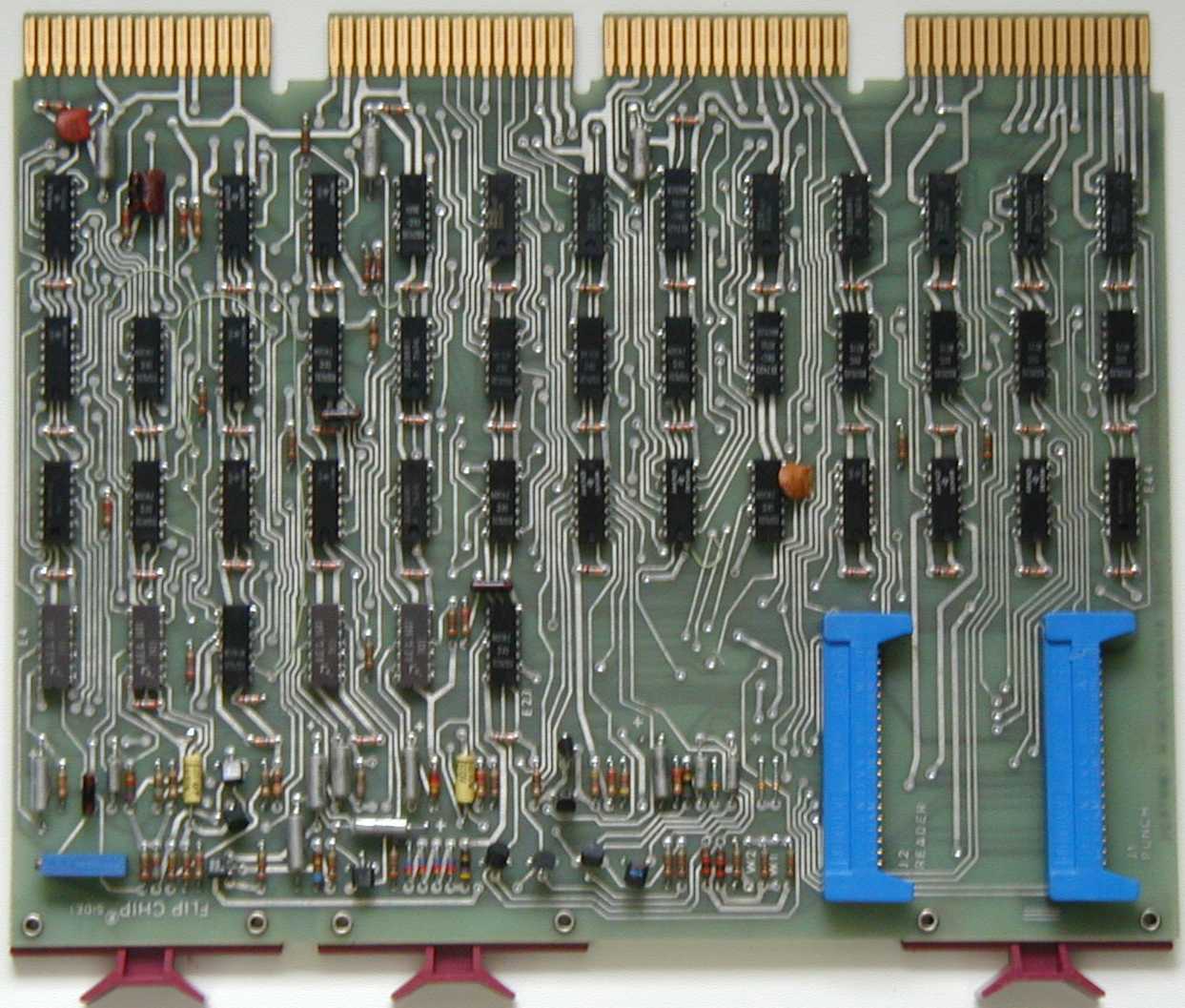

    M840 >High Speed Reader Punch Control   U 0 DEC UNIBUS Modul M840, High Speed Reader Punch Control (149435 Byte)

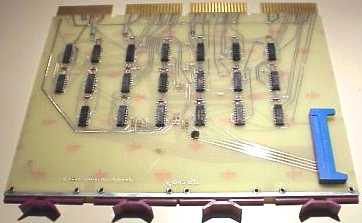

    M841 >PDP DATA PRODUCTS LINE PRINTER CTRLR   U 1 DEC UNIBUS Modul M841, PDP DATA PRODUCTS LINE PRINTER CTRLR (10887 Byte)
    M842E Plotter control XY8-E   U 1 M842.JPG (2495232 Byte)
    M847 Bootstrap loader   U 1 M847.JPG (2683084 Byte)
    M848 >Power fail & auto restart   U 1 M848.JPG (2213377 Byte)
    M849 RFI Shield   U 2 M849.JPG (2635397 Byte)
    M850 Converter and cable connector PDP8 U 0
    M860 Real time clock PDP8 U 0
    M863 Buffered Digital I/O

    12 CHANNEL I/O

      U 0 DEC UNIBUS Modul M863, 12 CHANNEL I/O (139774 Byte)
    M865 Console Teletype control PDP8E U 1 M865.JPG (2807802 Byte)
    M869 vc 8e pt Plot dspl cont   U 1 M869.JPG (2234664 Byte)
    M870 Simple Clock   U 0
    M873 UNIBUS restart with space for 4 ROMs (256 x 4)   U 0

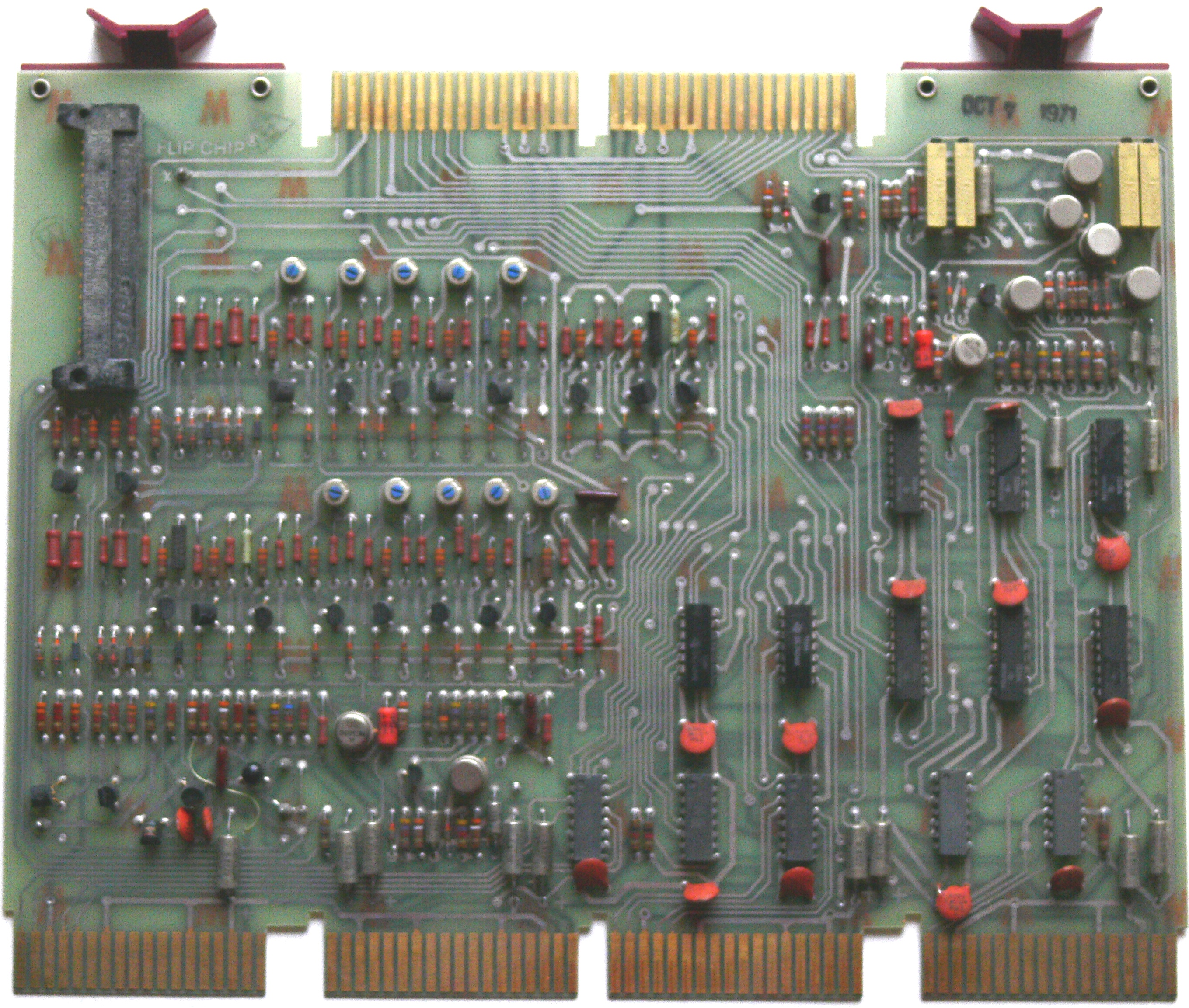

    M885 Digital to analog converter PDP8 U 1 M885.JPG (2734001 Byte)
    M890 >Motion control TU10 U 0
    M900 >PDP-8-I Console Connector   U 0
    M901 >Flexprint cable connector   U 0
    M902 -YA >Resistor terminator   U 0
    M903 >Flexprint connector   U 0
    M904 >Connector (coaxial)   U 0
    M906 >Cable terminator   U 0
    M907 >Diode clamp PDP-8 U 0
    M908 >RIBBON CONNECTOR MODULE    U 0

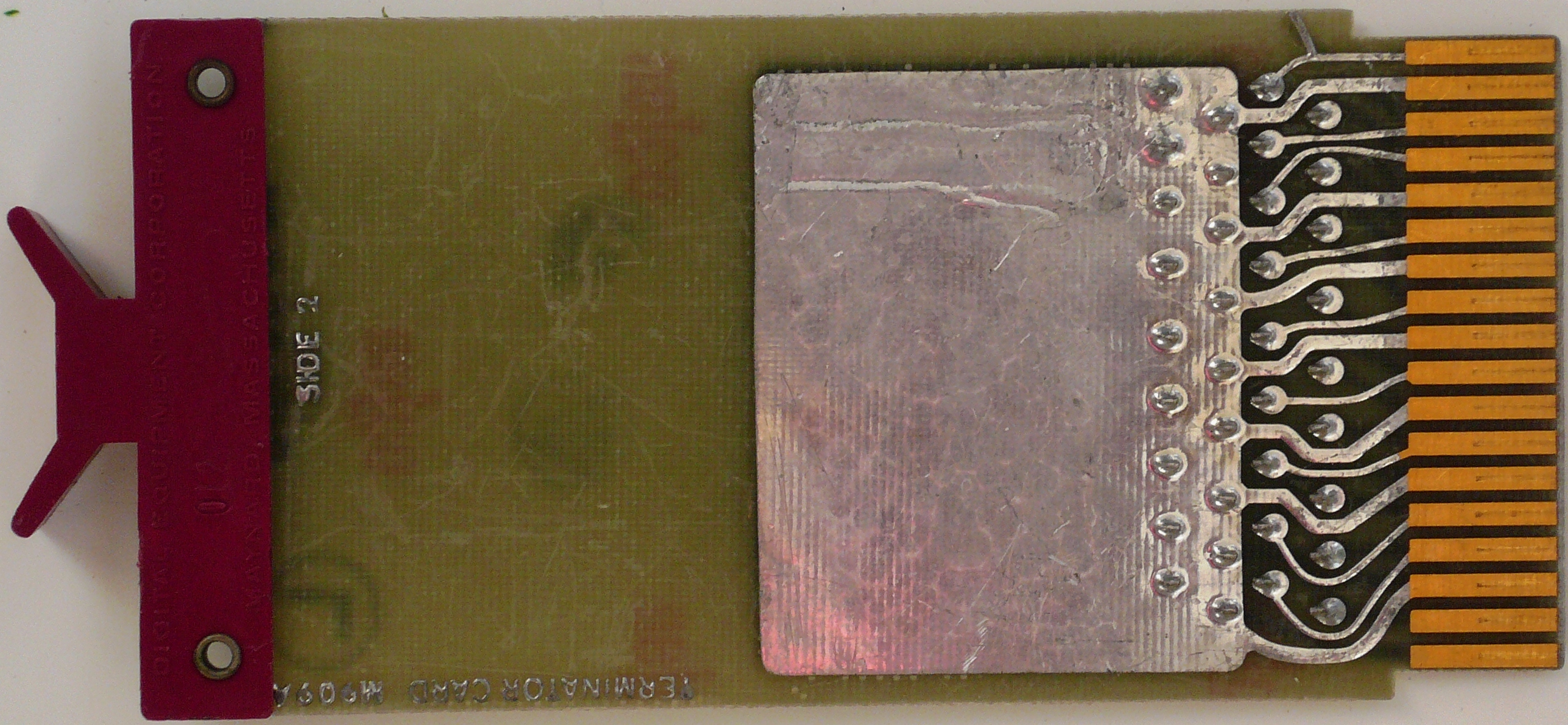

    M909A >Terminator card   U 1 DEC UNIBUS Modul M909, Terminator card (26107 Byte)
    M910 >Terminator card PDP-15 U 0
    M918 >flat mylar connector, 36-pol.   U 0
    M919 >Bus connector (UNIBUS) BA11 U 1 DEC UNIBUS Modul M919, Bus connector (pendant zu M929)

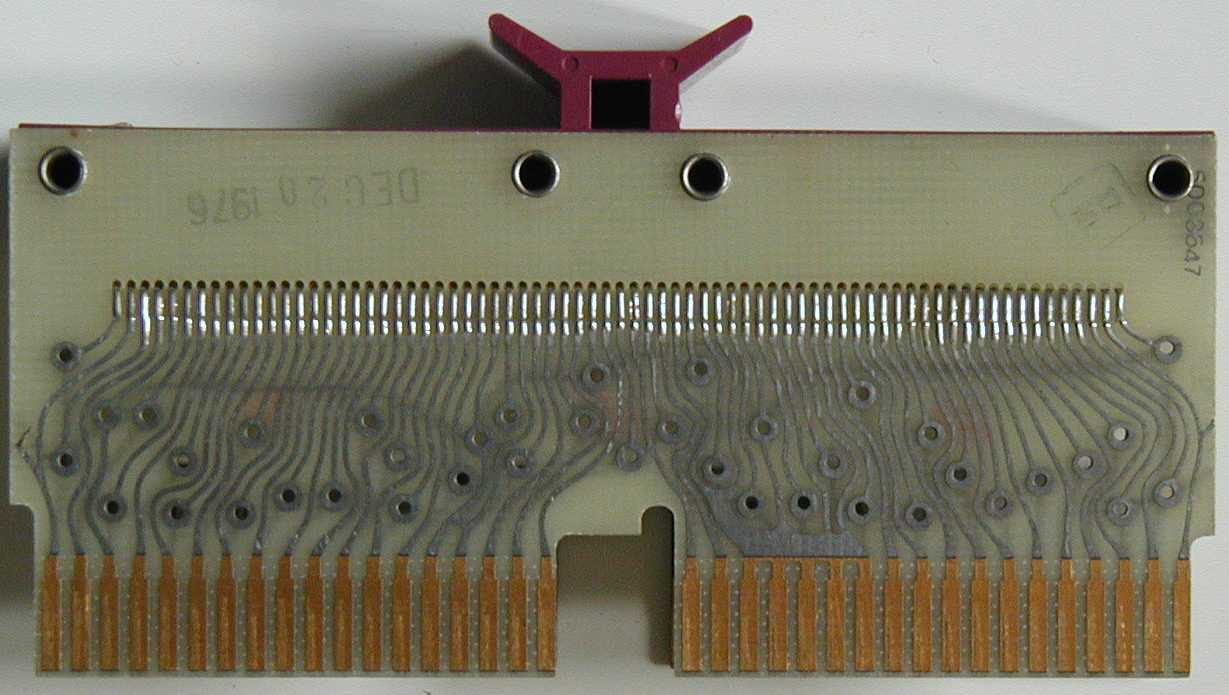

    M920 >INTERNAL BUS CONNECTOR (UNIBUS) KB11 U 3 DEC UNIBUS Modul M920, INTERNAL BUS CONNECTOR (73795 Byte)
    M921 >Device code jumper select   U 0
    M922 >Flexprint cable connector   U 0
    M926 >Flexprint cable connector   U 0
    M929 >UNIBUS Cable BA11 U 2 DEC UNIBUS Modul M929, Bus connector (pendant zu M919)

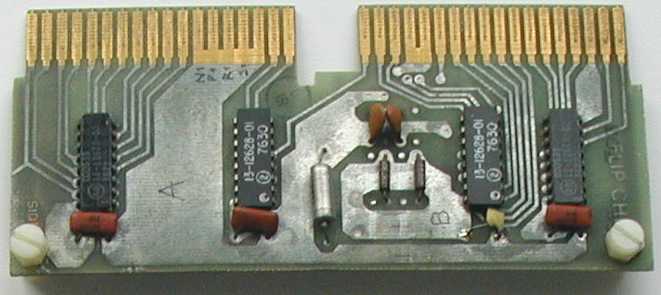

    M930 >PDP-11 BUS TERMINATOR (PDP11/34), Terminator for PDP11 bus, 120-ohm to +3V, 1000pf on BF1 & BF2 KB11,
    RK05
    U 0 DEC UNIBUS Modul M930, PDP-11 BUS TERMINATOR (25189 Byte)
    M931 >15 terminators with ind. res.   U 0
    M933 >RIBBON CONNECTOR MODULE, 20-pol.    U 0
    M935 >INTERNAL BUS CONNECTOR (OMNIBUS) KB11 O 0 M935.JPG (595414 Byte)
    M941 >Jumper/extender board   U 0
    M943 >flat mylar connector, 36-pol.,   U 0
    M947 >KI-10 indicator driver   U 0
    M948 >KI-10 indicator board   U 0
    M949 >Indicator cable conn.   U 0
    M950 > Indicator cable conn.   U 0
    M952 >Level terminator   U 0
    M953 >Ext. BUS cable conn (for M863 etc.)   U 0 DEC UNIBUS Modul M953, Ext. BUS cable conn (for M863 etc.) (63856 Byte)
    M956 18 terminators   U 0
    M957 >CONNECTOR CABLE    U 0
    M966 >Terminator PDP-15 U 1 DEC UNIBUS Modul M966
    M957 >CONNECTOR CABLE    U 0
    M969 >24 level terminators and thermistor   U 0
    M970 >Cable interface   U 0
    M971 >Cable interface Board, H854 mounted on single card, accepts BC08R DR11 U 1 DEC UNIBUS Modul M971, Cable interface Board, H854 mounted on single (158442 Byte)
    M973 >VT05 Interconnections DM11 U 0
    M975 >Cable interface on H854   U 0
    M976 >RIBBON CONNECTOR MODULE, 120-pol, similar to M919    U 0
    M974 >Test Connector (DH11) DH11 U 0
    M981 >for PDP11/34 PDP11/34 U 0
    M992-YB >Bootstrap diode matrix   U 0
    M993 >CABLE CONTROL (RK8-E)   U 0
