    Liste der D|I|G|I|T|A|L (DEC) Module: M1000-M3499:
    Diese Listen dienen zur Information, welche Module der Hersteller produziert hat. Die Anzahl unserer lieferbaren Module werden in der Spalte "Lagerbestand" dokumentiert.
    These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".
    Modulname Bezeichnung System options QBUS Unibus Lagerbestand Bild
    1000...
    M1000 Drive roller CR04 U 0
    M1091 Memory device selector, with jumpers, bits 11-17 PDP11/45 U 0
    M1103 2-input AND Gates   U 0
    M1125 Exclusive OR Gates   U 0
    M1131 2-input NAND Gates   U 0
    M1200 Drive roller CR04 U 0
    M1307 4-input AND Gates   U 0
    M1500 Bidirectional bus interfacing gates [pdp8/pdp11] PDP11/8 U 0
    M1501 Bus input interface (16 drivers) PDP11/45 U 0
    M1502 16-bit bus output interface PDP11/45 U 0
    M1621 Digital voltmeter data input interface for Fluke 8200A/8400A, H-P 3450A/3480A, Data Precision 2000, Systron-Donner 7110, Dana 4800 M105 or eqvt is required. May use M7820 PDP11/45 U 0
    M1623 Instrument remote control interface.Supports DVMs as M1621 + programmable PSUs:Fluke 4210A/4216A/4250A/4265A,H-P 6129B/6130B/ 6131B M105 or eqvt is required. May use M7820 PDP11/45 U 0

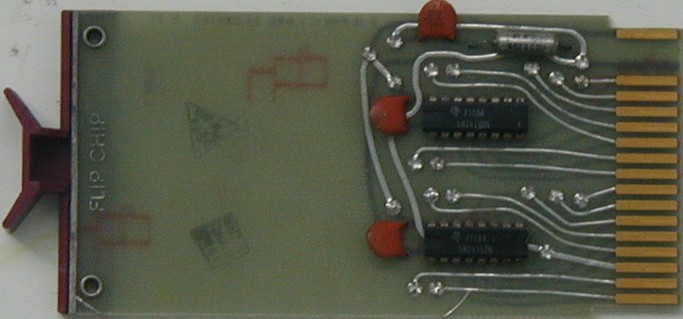

    M1701 2-16 PIN IC CARD   U 1 DEC UNIBUS Modul M1701, 2-16 PIN IC CARD (30995 Byte), von oben (30995 Byte)
    M1710 UNIBUS Interface Foundation PDP11/45 U 0

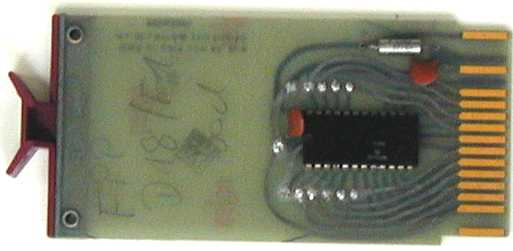

    M1713 24 Pin DIP mount with Pin 24 VCCand 12 GND   U 1 DEC UNIBUS Modul M1713, 24 Pin DIP mount with Pin 24 VCCand 12 GND (18400 Byte)
    M1801 16-Bit reed Relay Output Interface PDP11/45 U 0
    2000...
    M2001 Dual 4-Bit Tri-State registers CE11 U 0
    M2009 Set point register CE11 U 0
    M2010 2 Channel impulse counter CE11 U 0
    M2500 2 64-word 4-bit MOS FIFO memories (needs -12V)   U 0
    M2500-YA M2500 with filter cap on line U1   U 0
    M2501 Dual 8*4 bit RAM (4 74170's) DMA01-A U 0
    M2501-YA M2501 with 1.2K resistive pullups on RAM outputs DMA01-A U 0
    M2503 Dual 256 bit Schottky RAM (3106's) ADC01 U 0
    M2504 Dual 256*4 RAM, common address, separate data I/O   U 0
    3000...       0
    M3020 Dual Delay Multiovibrators   U 0
    M3070 Integrating one-shot     0
    M3100 EIA sync line unit for DECSA DECSA   0
    M3101 V.35 sync line unit for DECSA DECSA   0
    M3102 2-line async line unit for DECSA(DEC/DLC/DRCSA) DECSA   0
    M3103 LP line unit for DECSA DECSA   0

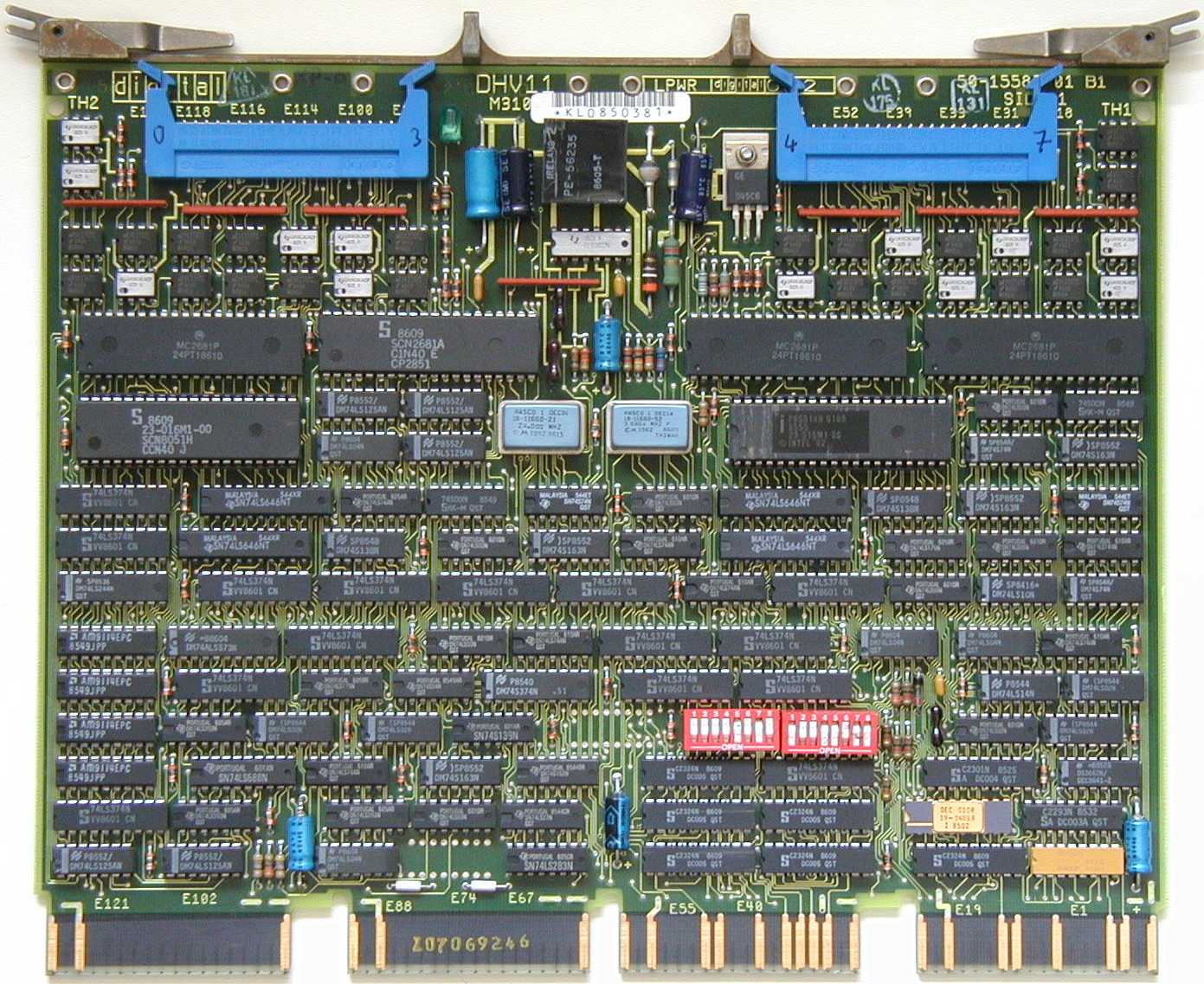

    M3104 8-LINE ASYNC MUX, DMA DHV11 Q 1 DEC QBUS Modul M3104, 8-LINE ASYNC MUX, von oben (249120 Byte)
    M3105 DHU11-A, 16-LN ASYNC MUX,DMA DHU11 Q 0

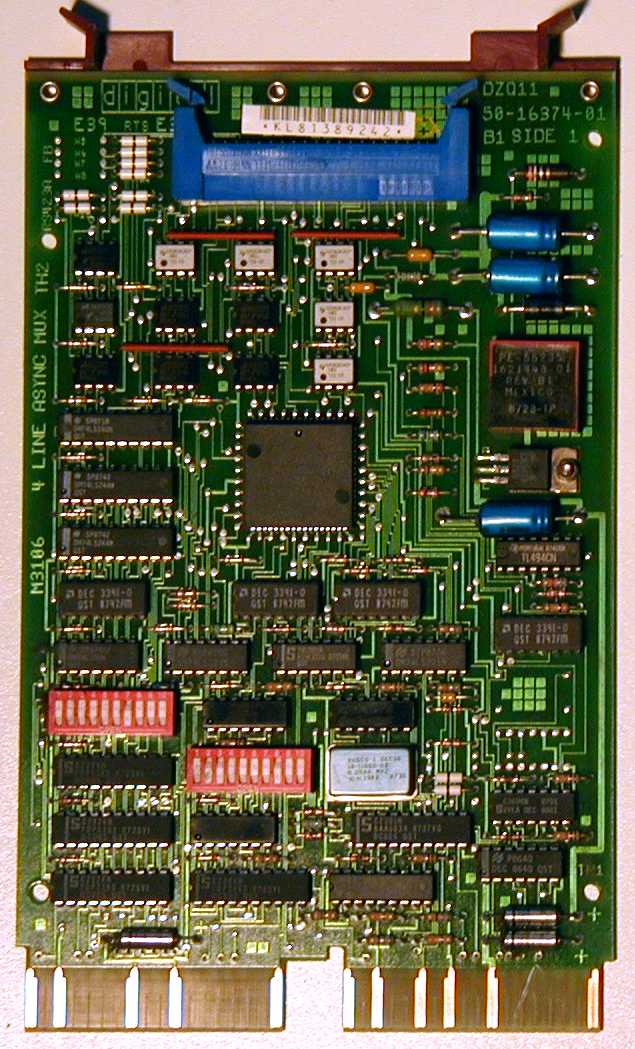

    M3106 DZQ11,4LN DBL BUF ASYNC MUX DZQ11 Q 2
    M3106-PA 4 LN DBL BFR ASYNC MUX W/HNDL DZQ11 Q 0

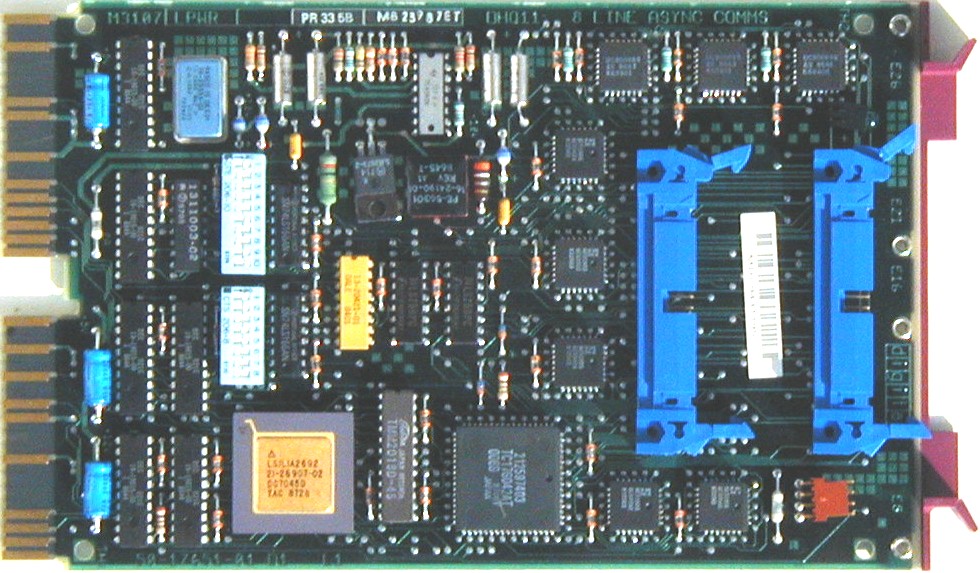

    M3107 8-LINE ASYNC Mux EIA, DHQ11-M DHQ11 Q 1
    M3108 2-line sync SLU for BA23/123 (-AA is first unit, -AB is second add-on unit) DSV11-A Q 0

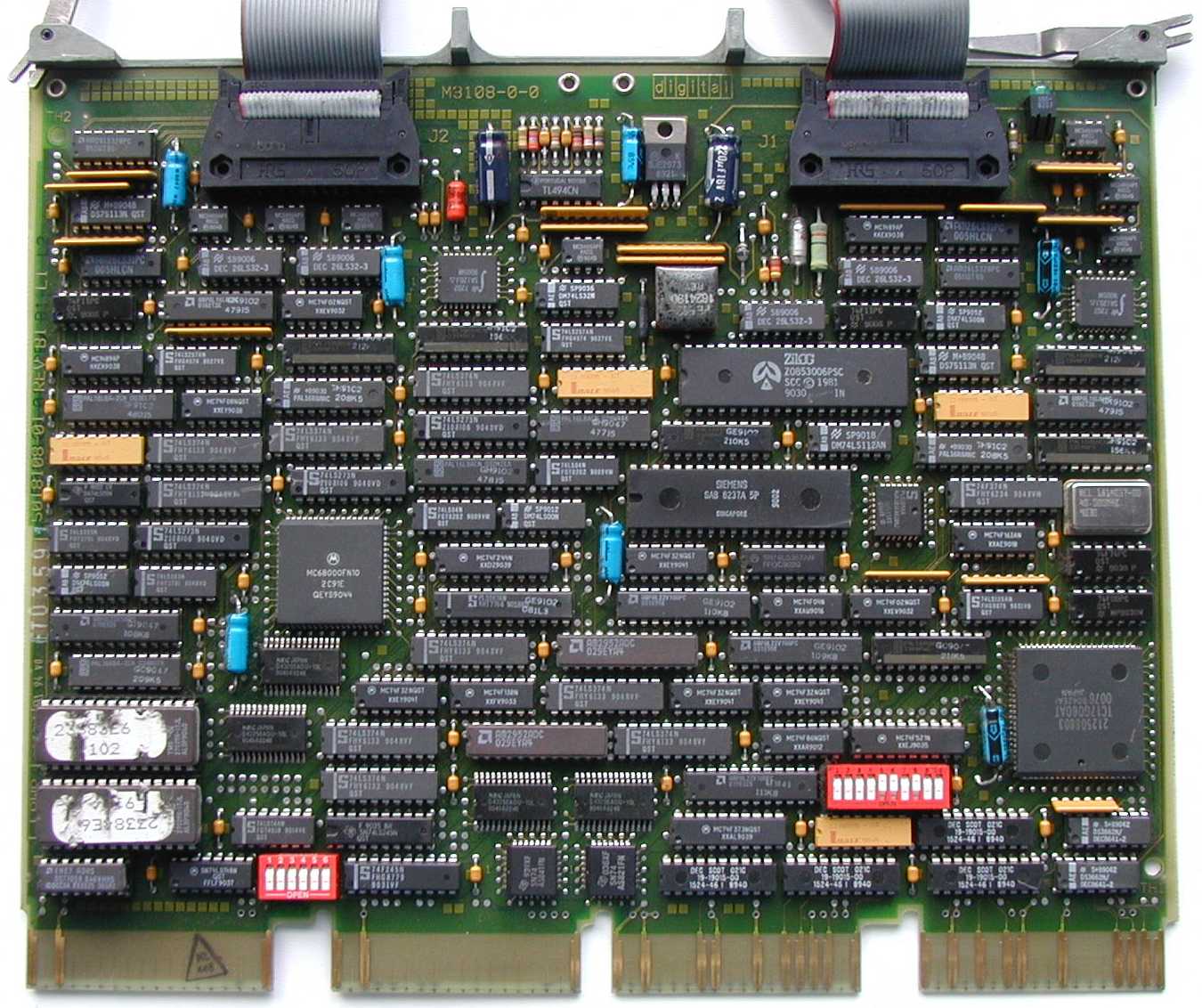

    M3108-PA 2-line sync SLU for BA223 (-SF is first unit,-SG is second add-on unit) DSV11-S Q 1 M3108.jpg (178839 Byte)
    M3109 +5V TO ISOLATED 5V      0
    M3110 PROTOCOL ASSIST #1 SPEC CHAR DRCSA U 0
    M3111 PROTOCOL ASSIST #2 SPEC CHAR DRCSA U 0
    M3112 CONSOLE BOOT TERMINATOR, HEX DRCSA U 0
    M3117 16-line Asynchronous Multiplexor  DHZ11 Q 0
    M3118-YA CXB16-AF to 16-Line DEC423, QUAD ASYNC 16 LINE MODULE,INT  CXB16 Q 0
    M3118-YB CXB16, QUAD ASYNC 16 LN,HNDL,RS422  CXB16 Q 0
    M3119-YA CXY08-SA to 8-Line RS232 (ASYNC) MUX,W/MODEM CNTR  CXY08 Q 0
    M3121-PA Dual integral modem with S-box handle, DF224 compatible, US/CAN DFA01-AA Q 0
    M3123 32-line Async MUX, Fiber optic I/O for BA223 DHF11 Q 0
    M3123-YA 32-line Async MUX, Fiber optic I/O, Q-BUS DHF11 Q 0
    M3124 8 line async MUX w/nmc, ITEG handle,w/DEC423 Out, Q-BUS  CXA08-M Q 0
    M3125 Q22 BUS, BITBUS to Qbus interface   Q 0
    M3125-PA Qbus interface to Intel BITBUS, Q22, RS485,with S-box handle   Q 0
    M3125-YA Qbus interface to Intel BITBUS, Q22, no handle   Q 0
    M3126 Dual integral modem with S-box handle, UK version, Q22 DFA01-BA Q 0

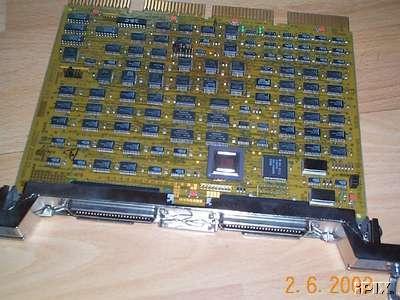

    M3127-PA DESQA-SA, Ethernet/thinwire adapter (DELQA+DESTA)with S-box handle,Q22 DESQA- SA/SF Q 0 M3127-pa.jpg (29284 Byte)
    M3127-PB M3127-PA with handle access thinwire pushbuttonswitch, Q22 DESQA- SA/SF Q 0
    M3128 Qbus interface to VMI CCIC QBIC  Q 0
    M3129 NRZI/RS422 data Converter for KMV11(renamed KMV1A), Q22 KMV11 Q 0
    M3130-GA 2 Port GE-Genius bus to Q-bus for GE-FANUC, Q22 IGQ11 Q 0
    M3130-GB 1 Port GE-Genius bus to Q-bus for GE-FANUC, Q22 IGQ11 Q 0
    M3130-PA Q22-bus interface to GE-Genius bus with S-box handle IGQ11 Q 0
    M3130-SA 2-Port GE-Genius bus to Q-bus IGQ11 Q 0
    M3130-SB 1-Port GE-Genius bus to Q-bus IGQ11 Q 0
    M3130-YA GE-Genius bus to Q-bus interface, standard handle IGQ11 Q 0
    M3133 RS-422 Signal conditioning module for DRQ3B DRB3B Q 0
    M3134-PA IBM Terminal server, 4 port (DECServer 500) DS500 Q 0
    M3135-01 DTC05-SA SPARE MODULE, Multi-line DECVoice, Q-bus for multiple channels,50 MHz clock   Q 0
    M3135-02 Multi-line DECVoice, Q-bus for multiple channels,60 MHz clock   Q 0
    M3136 Q-bus module connects M3135 to T1 telephone service   Q 0
    M3137-AA +12V power module for DEVIS (VAXCAMERA) DEVIS Q 0
    M3138-AA Data cipher module for Qbus KRQ11-AA Q 0

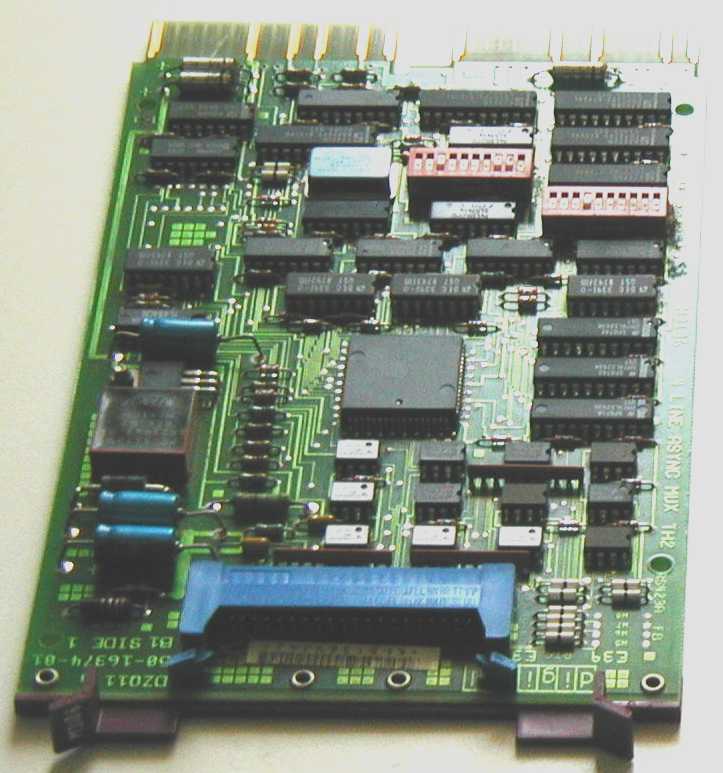

    M3196 ???     0 M3196a.jpg (59321 Byte)
