    Liste der D|I|G|I|T|A|L (DEC) Module: M7500-M7699:

    Diese Listen dienen zur Information, welche Module der Hersteller produziert hat. Die Anzahl unserer lieferbaren Module werden in der Spalte "Lagerbestand" dokumentiert.
    These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".

    For further informations see:
    1. D|I|G|I|T|A|L Control handbook 1970, FLIP CHIP,
    2. D|I|G|I|T|A|L Control handbook 1969, Positive logic edition,
    3. D|I|G|I|T|A|L logic handbook 1975-76,

    4. all informations are printed by DIGITAL EQUIPMENT CORPORATION.

    These parts are used in INDAC8, PDP-8/L, PDP-8/I, PDP-9/L, PDP-9/I, PDP-10, PD-P11, PDP-12, PDP-14 and PDP-15
    Modulname Bezeichnung System options QBUS Unibus Lagerbestand Bild

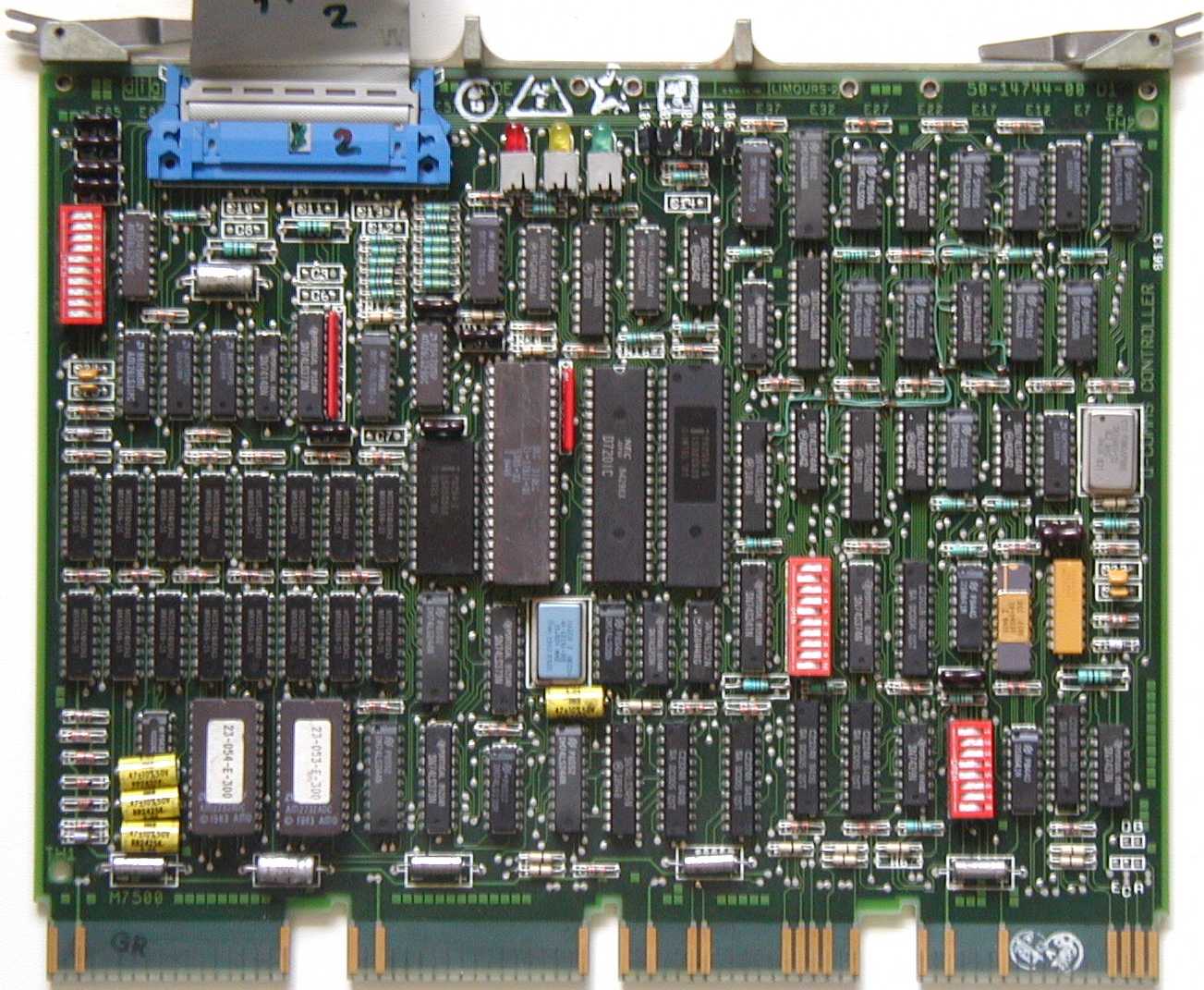

    M7500 KMV1A-M, Q-COMMS CONTROLLER, Programmable Communications Controller QBUS KMV11 Q 3 M7500.jpg (187484 Byte)
    M7500- PA,SF Q-COMM CONTROLLER (KMV1A-SA) (for BA200 series enclosures)RS232 KMV11 Q 0
    M7500- PB,SG Q-COMM CONTROLLER (KMV1A-SA), RS422 KMV11 Q 0
    M7500- PC,SH Q-COMM CONTROLLER (KMV1A-SA), RS423 KMV11 Q 0
    M7501 Programmable comms controller, dual line. KMV2A-S Q 0
    M7502 Single-line high speed intelligent communication interface KMV11 Q 0

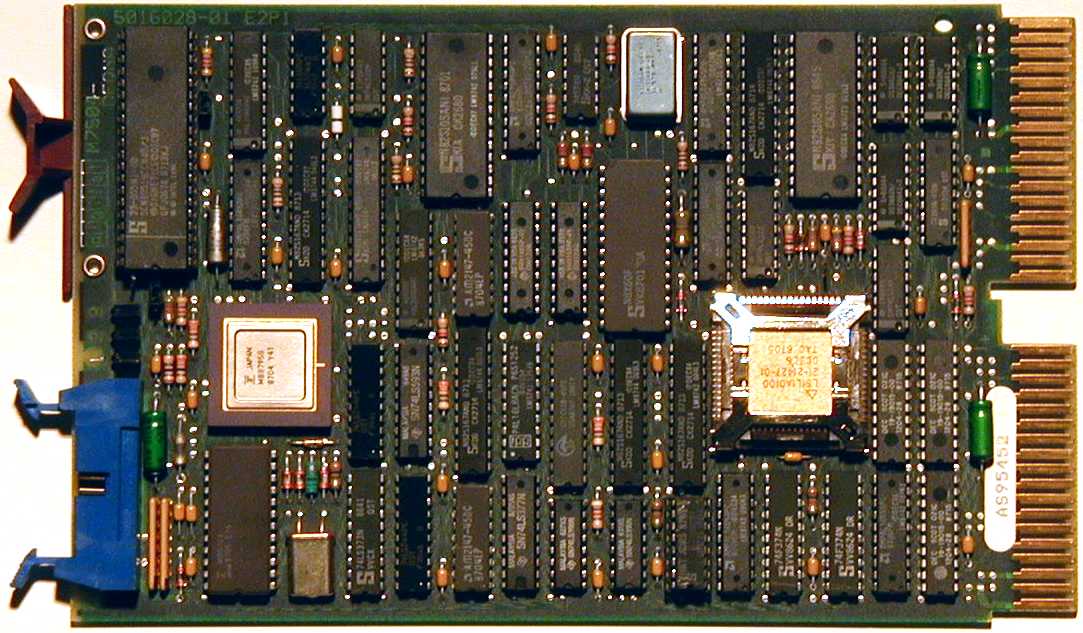

    M7504 DEQNA Q-BUS TO ETHERNET ADAPTER, obsolete for VMS 5.x and above (use DELQA) DEQNA Q 2 DEC QBUS Modul M7504, DEQNA Q-BUS TO ETHERNET ADAPTER, von oben (114293 Byte)
    M7504-PA Qbus to ethernet adapter, M7504-YA W/S-BOX BULKHEAD HND, (for BA200 series) DEQNA Q 0
    M7505 Conditioning module for BTR interface, Q-BUS BTR01 Q 0
    M7506-AA 512-Kbyte 18-bit RAM (Also M7506-AC,-AE, -AF,-AH, -AP) MSV11-MA Q 0
    M7506-AT 512-kbyte 22-bit parity/CSR MOS RAM (Also M7506-AU, -AV), Q-BUS MSV11-MA Q 0
    M7506-BA MSV11-MB 1MB RAM, 256K DIPS, Q-BUS MSV11-MB Q 0
    M7506-BC MSV11-MB 1MB RAM, Q-BUS MSV11-MB Q 0
    M7506-BE 1-Mbyte 22-bit parity/CSR MOS RAM, Q-BUS MSV11-MB Q 0
    M7506-BT 1Mb Memory 22-bit parity/CSR MOS RAM dual board, Q-BUS LNV11 Q 0
    M7507 Simplex 2.5MB full page bitmap memory for PDP, Q-BUS LNV11 Q 0 M7507.jpg (12220 Byte)
    M7507 Duplex 2.5MB full page bitmap memory for PDP, Q-BUS LNV11-A Q 0
    M7508 29116 IMAGE GEN. PROC. (IGP), Q-BUS LNV11-A Q 0
    M7509 Q-BUS/PRINT ENGINE INTERFACE, Q-BUS LNV11-A Q 0
    M7510 Horiz line proc, 256kB font RAM (HLP), Q-BUS LNV11-A Q 0
    M7510-AA H. LINE PROC W/256KB FONT RAM, Q-BUS LNV11-A Q 0
    M7511 Horiz line proc, 512kB font RAM (HLP), Q-BUS LNV11-A Q 0
    M7512 RQDX extender for RQDX1; must be the last item in the backplane, below the RQDX1, Q-BUS RQDXE Q 0
    M7513 RQDX extender for RQDX2/3 (-AA for BA23, -FA for BA123) RQDXE Q 0
    M7514 DC/DC Converter module, Q-BUS BTRXX-A Q 0
    M7515 3-plane bitmap video generator for Q-bus RQDXE Q 0

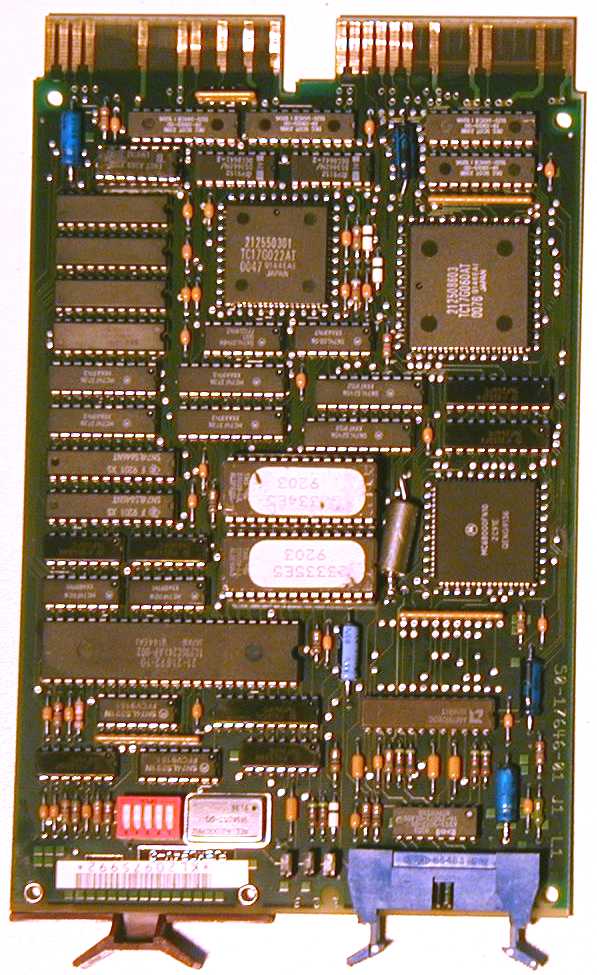

    M7516 Ethernet interface (replaces DEQNA), Q-BUS DELQA-M Q 0
    M7516-PA M7516 WITH S-BOX HANDLE, Q-BUS DELQA-S Q 0
    M7516-YM DELQA - TURBO MODULE, Q-BUS DELQA-M Q 6
    M7517  VSV90 Q-bus graphics module, Q-BUS VSV90 Q 0
    M7518  DELUA-AA ETHERNET LSI UNIBUS LNV11 U 0
    M7519-AA  DELUA-AA ETHERNET LSI UNIBUS LNV11 U 0

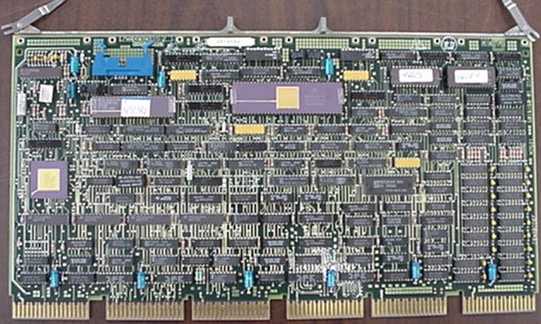

    M7521-AA  DELUA-AA ETHERNET LSI UNIBUS DELUA U 0
    M7522 RX50 CONTROL FOR UNIBUS,QUAD    U 0
    M7530-PA  TSV05 controller TSV05   0
    M7531-PA  DIV32 SPARE     0
    M7533-AB  DEQRA-CA, SPARE MOD  DEQRA   0
    M7534-AD DEFQA-DF SPARE  DEFQA   0
    M7534-AS  DEFQH-SF SPARE  DEFQH   0
    M7540 FP785,FLOAT PT FRACT NORMALIZ      0
    M7541 FP785,FMH,FLOAT PT FRACT MULT      0
    M7542 FP785,FML,FLOAT PT FRACT MULT      0
    M7543 FP785,FAD,FLOAT PT FRAC ADDER      0
    M7544 FP785,FCT,FLOAT PT ACC CONTRL      0

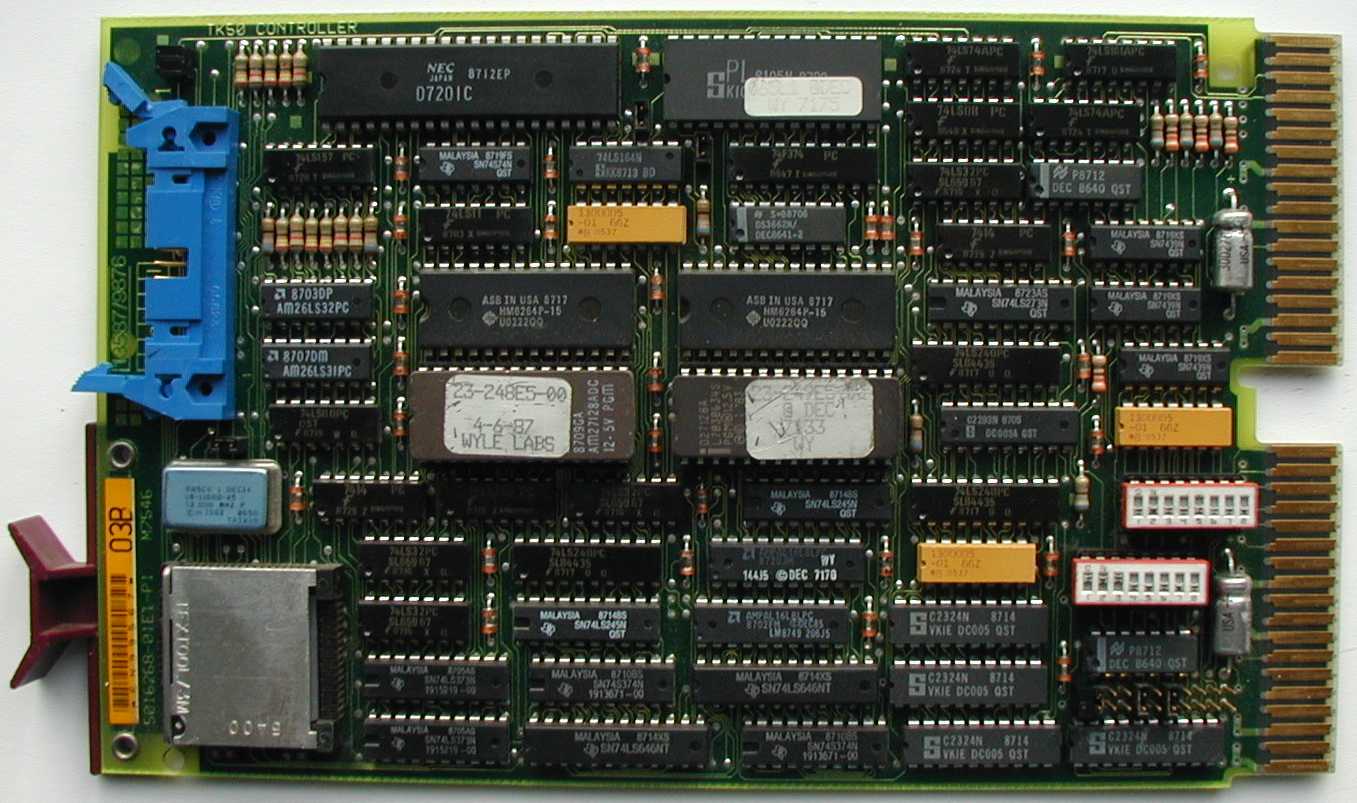

    M7546 TQK50-M, Q-BUS TAPE CNTRL, DBL 8.5  TQK50 Q 3 M7546.jpg (135581 Byte)
    M7547 UNIBUS TMSCP TAPE CONTLR,QUAD    U 0
    M7551-AA 1MB Q22 MEM,PAR,CSR,64K CHIPS, for PDP 11/23 MSV11 Q 0
    M7551-AV 1MB Q22 MOS Memory,PAR,CSR,64K CHIPS, for PDP 11/23 MSV11-QA Q 0 M7551.jpg (11818 Byte)
    M7551-BA 2MB Q22 MEM,PAR,CSR,256K CHIP, for PDP 11/23 MSV11 Q 0
    M7551-CA 4MB Q22 MEM,PAR,CSR,256K CHIP, for PDP 11/23 MSV11 Q 0
    M7551-CF 4MB Q22 MEM,PAR,CSR,256K CHIP, for PDP 11/23 MSV11-QC Q 0
    M7552 QBUS CONTROL FOR RRD50 (M7552 )   Q 0
    M7552-PA  M7552 WITH S-BOX HANDLE   Q 0
    M7553 Q-BUS CONSOLE MODULE   Q 0
    M7554-01 J11,CPU,15MHZ,512KB,2 SLU,LTC , KDJ11-DA PDP11/53 Q 1
    M7554-02 J11 CUP, 15MHZ, 1.5MB MEM 1 PDP11/53 Q 0
    M7554-PB J11 18MHZ CPU, MEM, 2 SLU'S PDP11/53 Q 1
    M7554-SD J11 18MHZ CPU,1.5MB,LAT ROM,S 1, KDJ11-DB PDP11/53 Q 0
    M7555 RD/RX CONTROL MODULE (RQDX3) RQDX3 Q 8 M7555.jpg (86480 Byte)
    M7555-PA S-BOX WINCHESTER CNTRL.  RQDX3 Q 0
    M7556 MINIMUM LOAD MODULE,+5V,1A-15   Q 0
    M7558-AA 2Mb Q_BUS Memory   Q 0

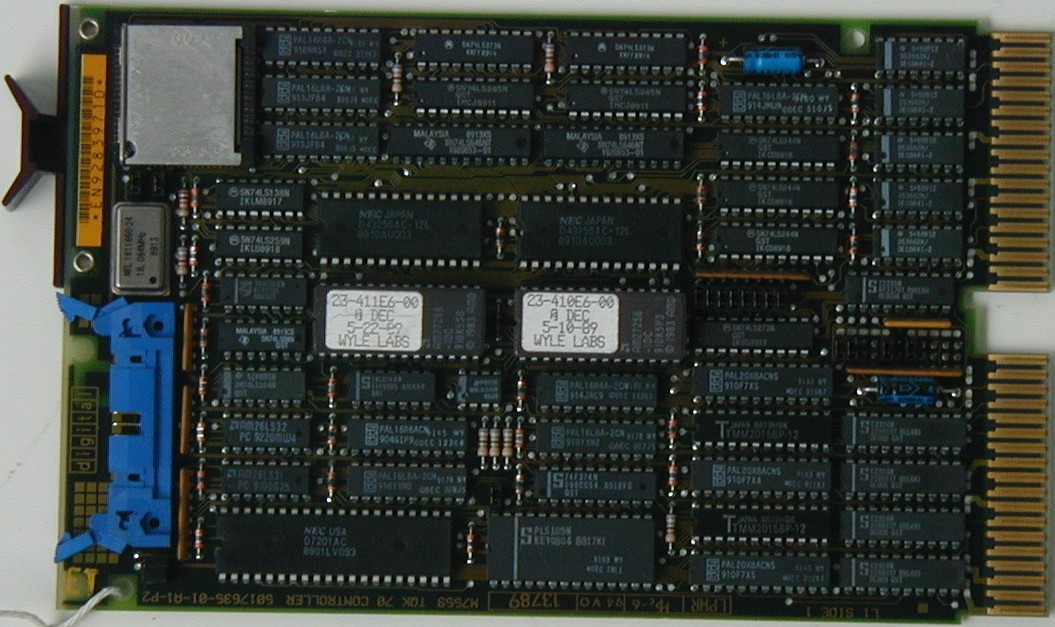

    M7559 TQK70-M,TK70 TAPE CONTROLLER TQK70 Q 1 M7559.JPG (192491 Byte)

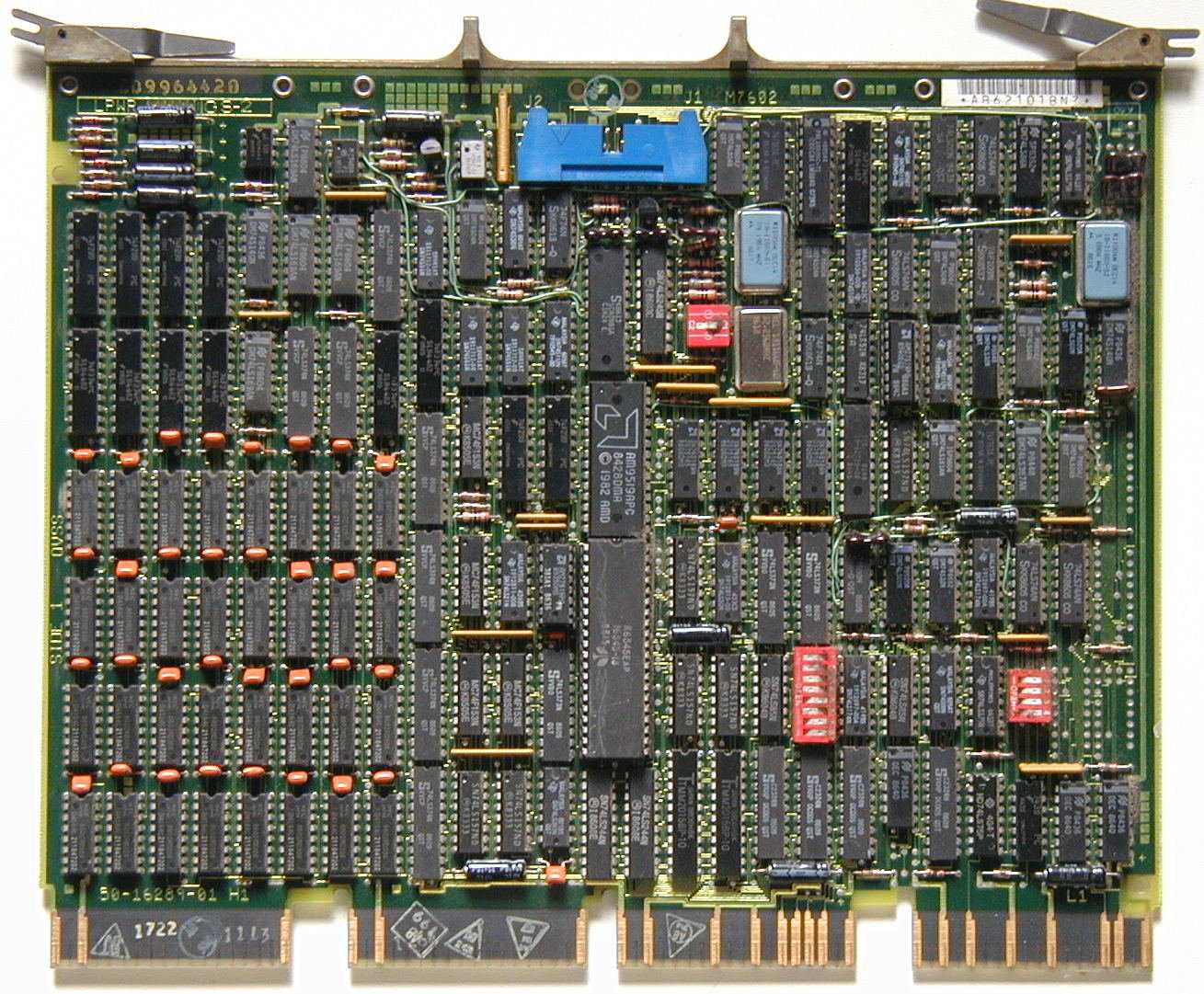

    M7602-YA QVSS BIT MAP GRAPHICS OPTION QVSS Q 1 M7602.jpg (228894 Byte)

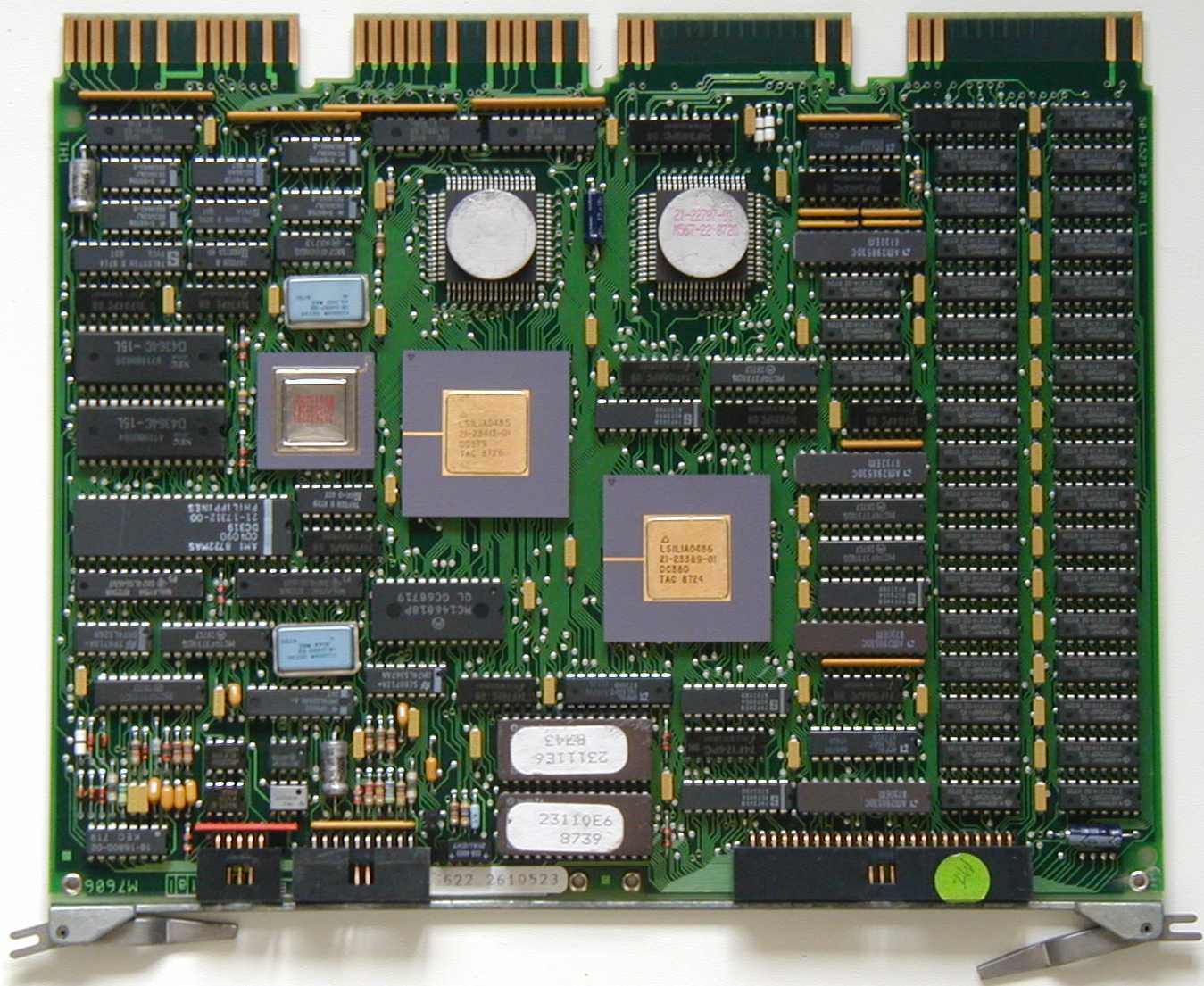

    M7606-AA MVII SYSTEM CPU MODULE KA630 Q 2
    M7606-BA M7606-AA W/O FP CPU KA630 Q 0
    M7606-BH H7606-BA CPU, 1MB NO FP KA630 Q 0
    M7606-E KDJ11-EA, MVII SYSTEM CPU, quad MODULE KA630 Q 0

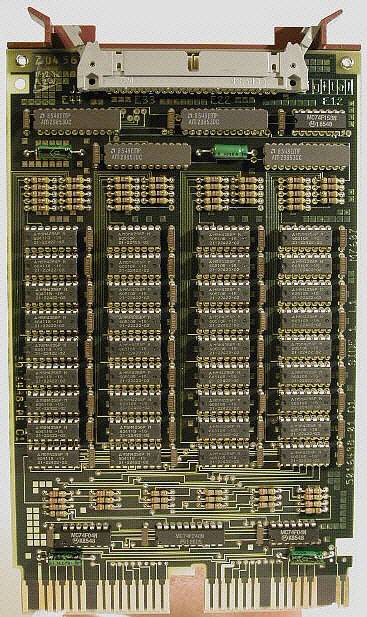

    M7607 PDP-11 Q-bus Module, Type M7607   Q 0 M7607.jpg (72728 Byte)
    M7607-AA 1MB MEMORY FOR MS630-AA, QBUS   Q 0
    M7608-AA 2MB MEMORY FOR MS630-BA, QBUS   Q 0

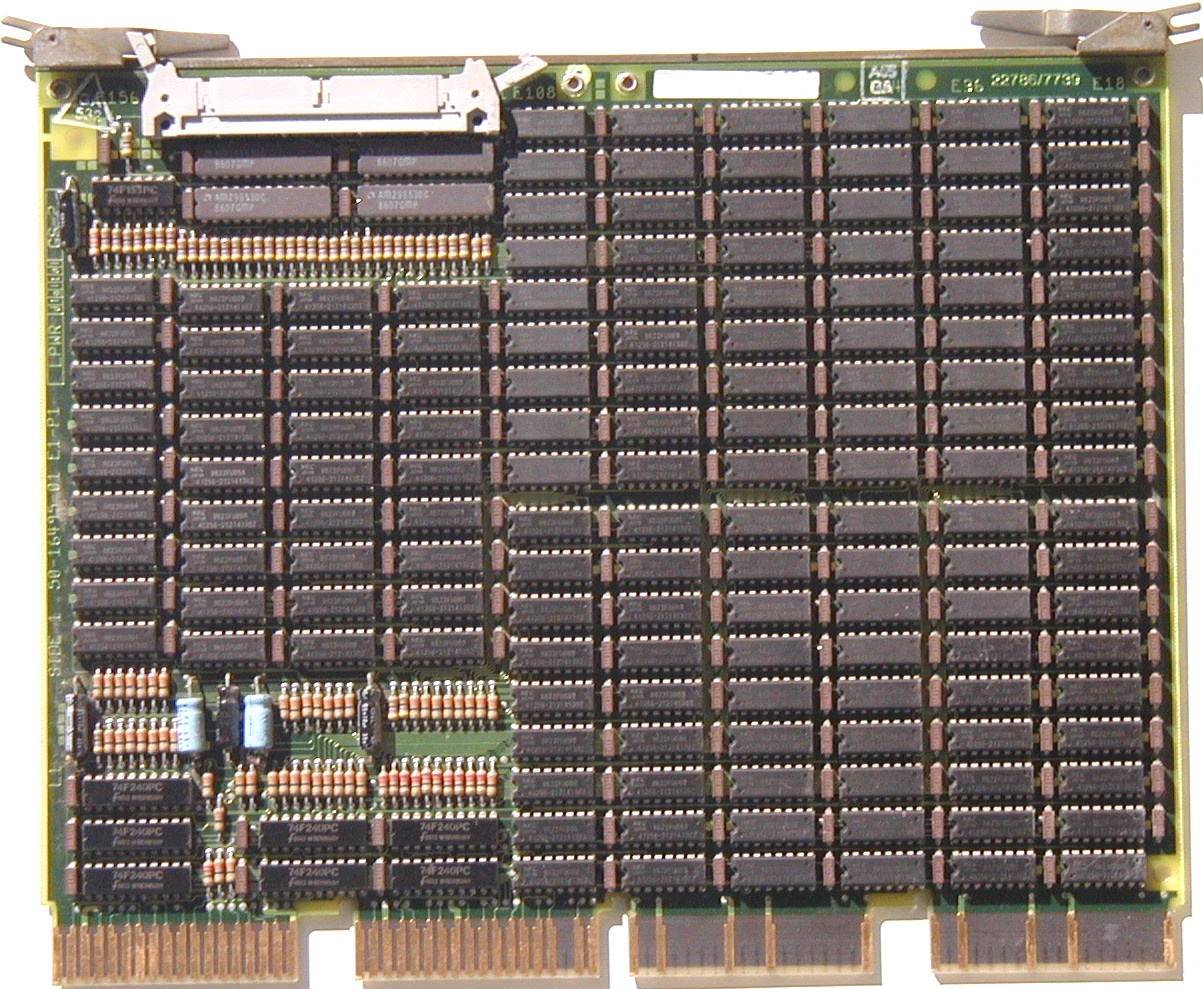

    M7608-BA 4MB MEMORY FOR MS630-BB, QBUS   Q 5 DEC QBUS Modul M7608.jpg

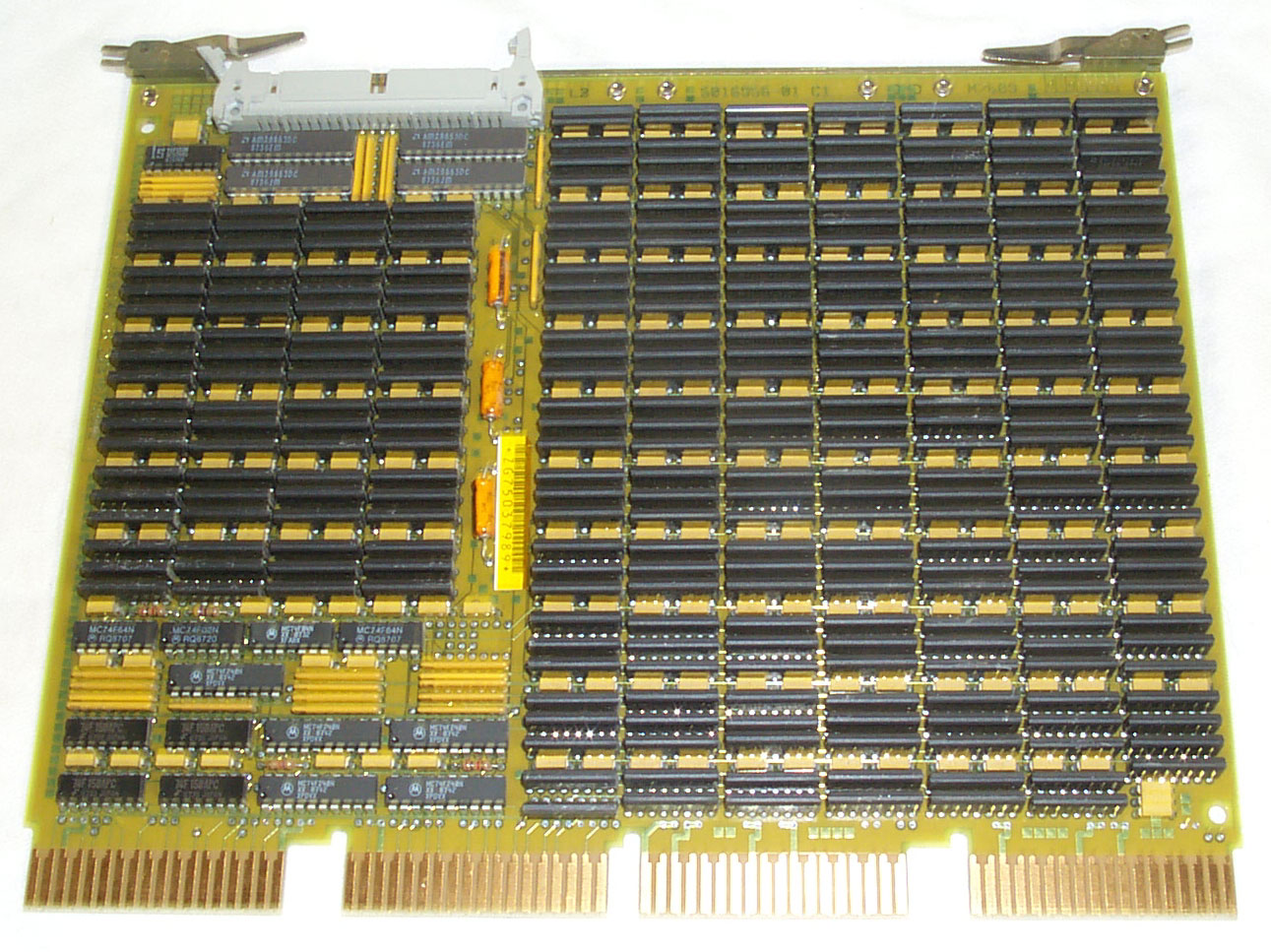

    M7609 Ram No Reserve, 8MB MEMORY FOR MS630, QBUS   Q 0 DEC QBUS Modul m7609, 8MB MEMORY FOR MS630 (342384 Byte)
    M7616 KXJ11-CA, J11 CPU, 512KB    Q 0

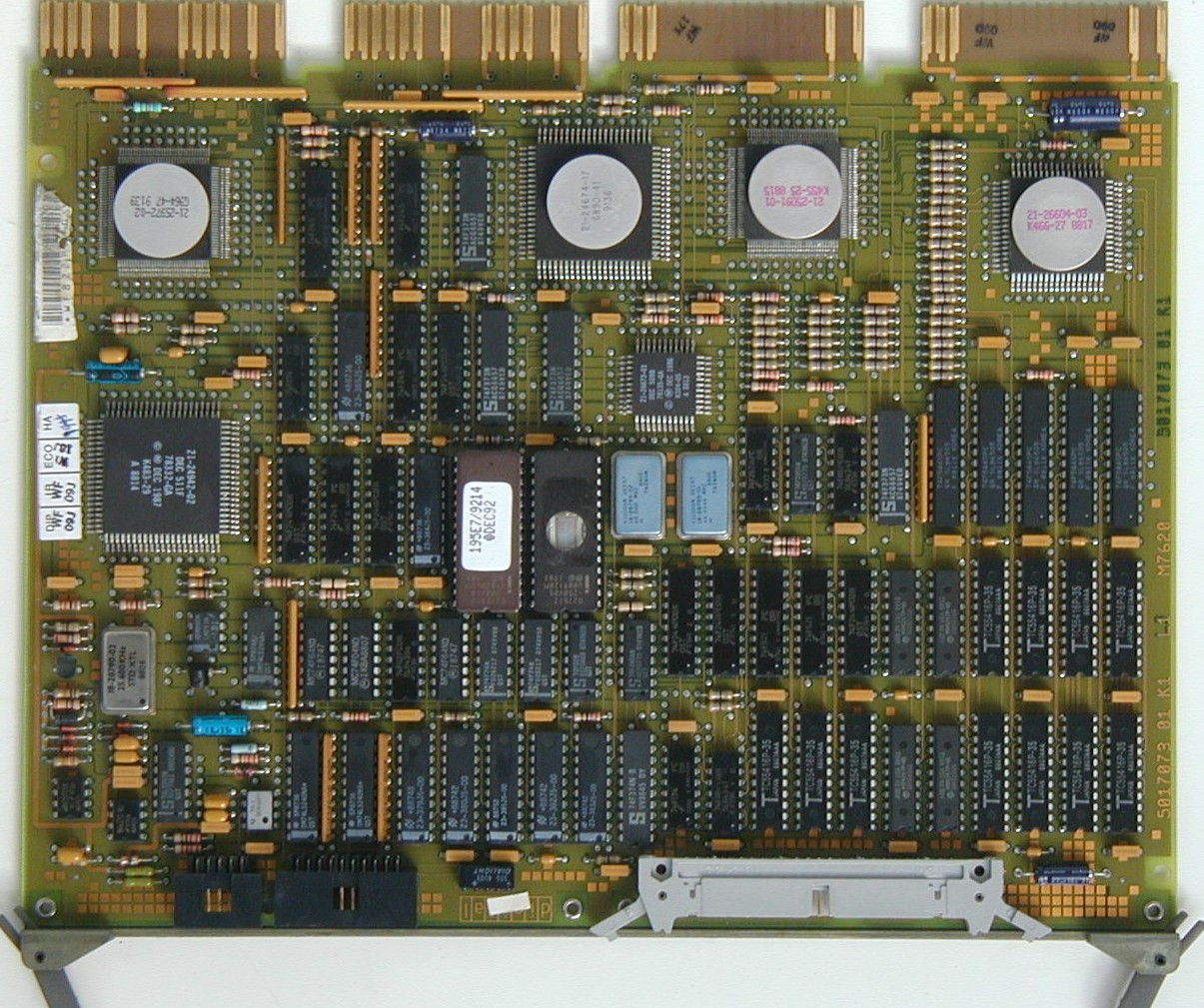

    M7620-AA KA650-BA MODULE (MICRO VAX3200), QBUS KA650 Q 2 DEC QBUS Modul M7620, KA650-BA MODULE (MICRO VAX3200) (188699 Byte), von oben

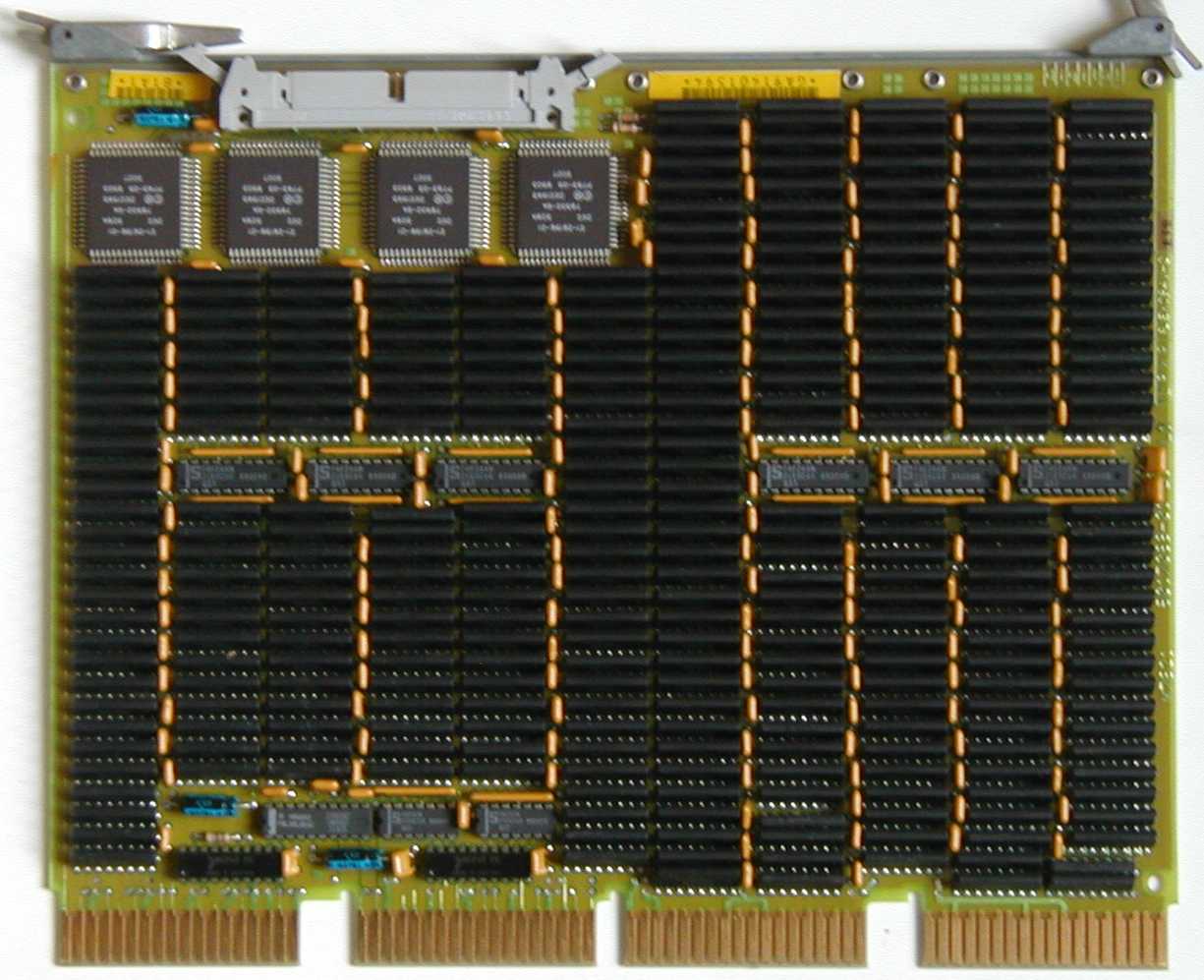

    M7621 8MB MEM, 256K DRAM ARRAY, QBUS KA650 Q 2 DEC QBUS Modul M7621, 8MB MEM, 256K DRAM ARRAY, (113844 Byte), von oben

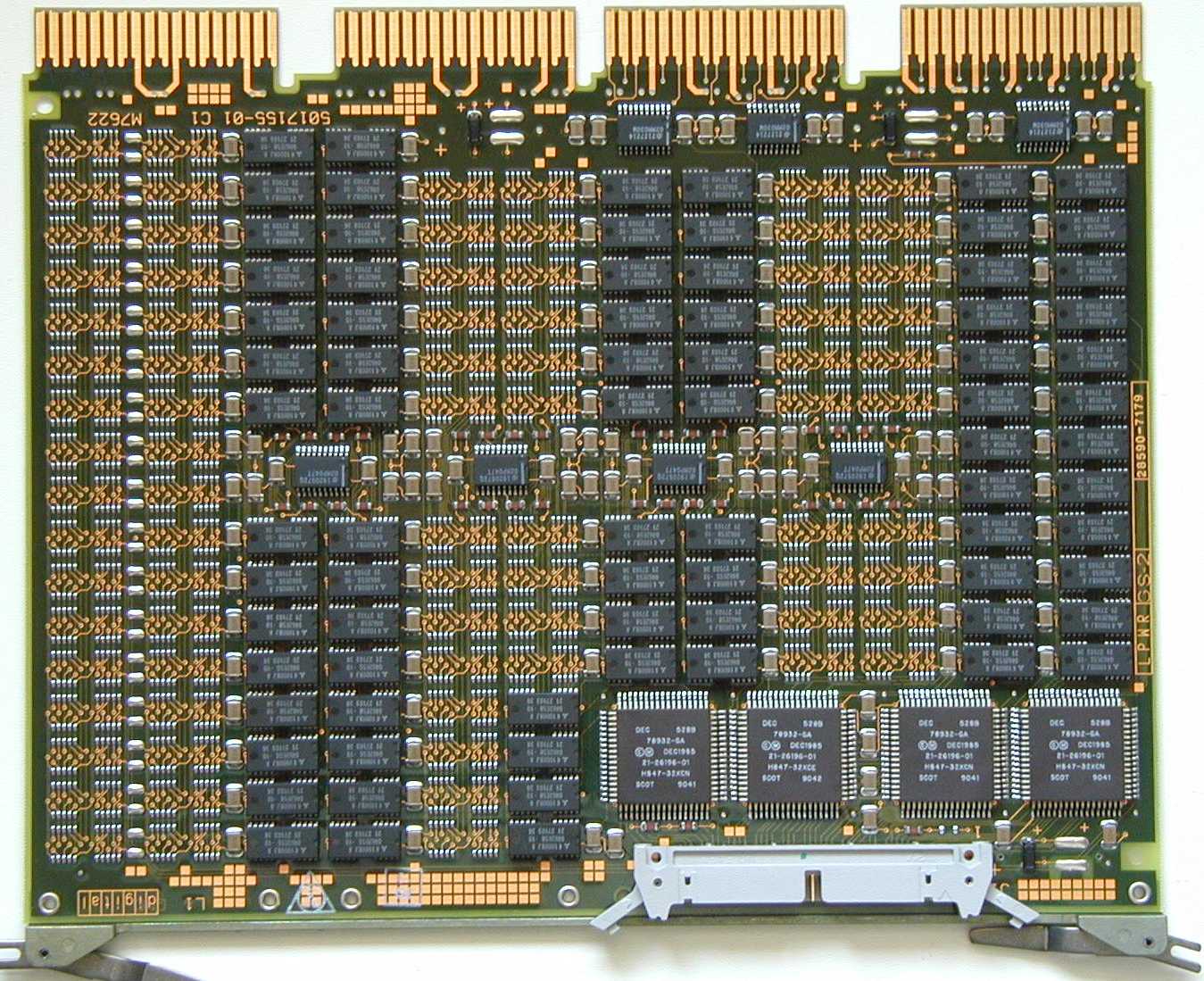

    M7622-BA 8MB MEM, 1MB DRAM ARRAY, QBUS KA650 Q 4 DEC QBUS Modul M7622, 8MB MEM, 1MB DRAM ARRAY, (262651 Byte), von oben

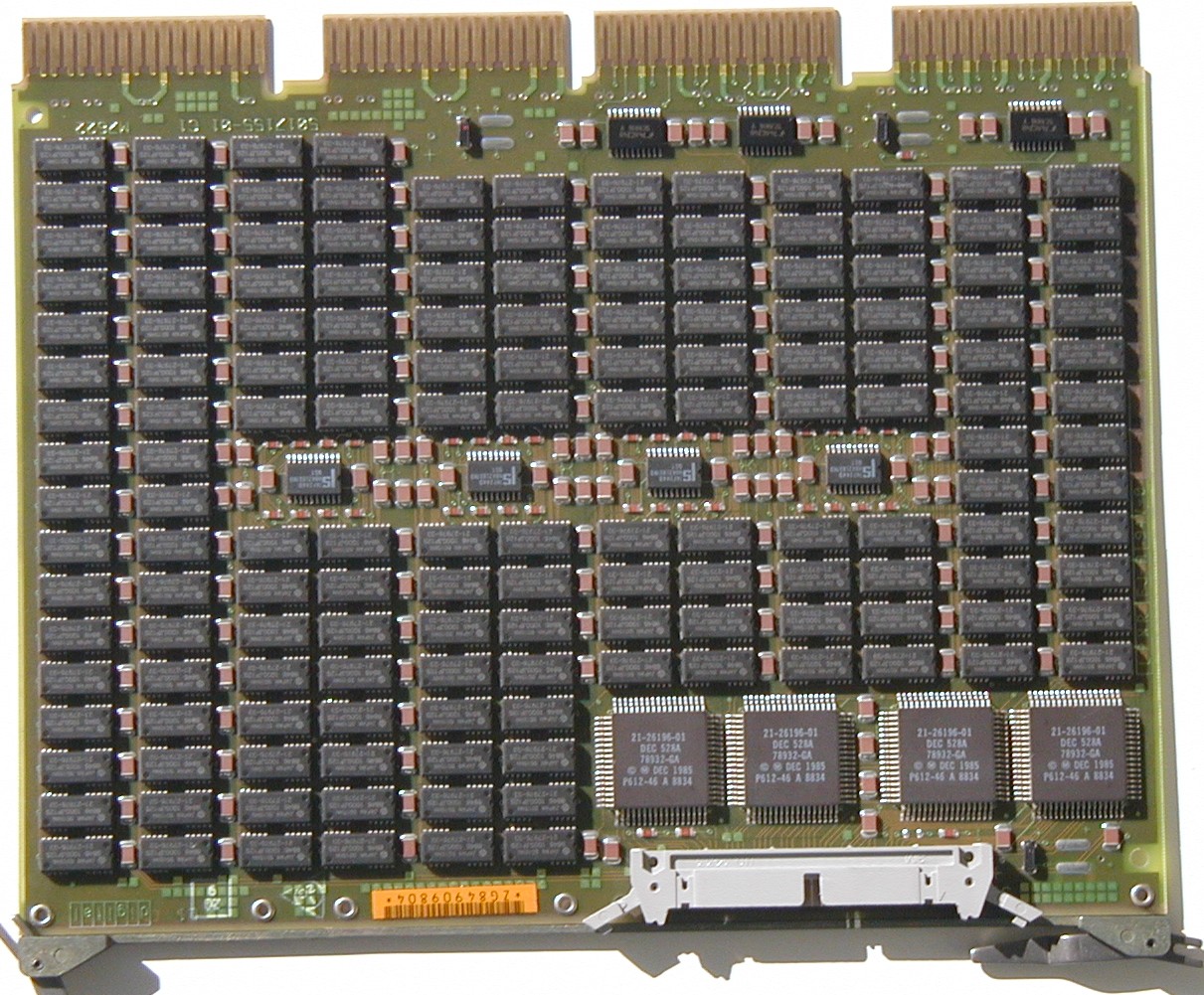

    M7622-AF 16MB MEM, 1MB DRAM ARRAY, QBUS KA650 Q 1 DEC QBUS Modul M7622AF, 16MB MEM, 1MB DRAM ARRAY, von oben

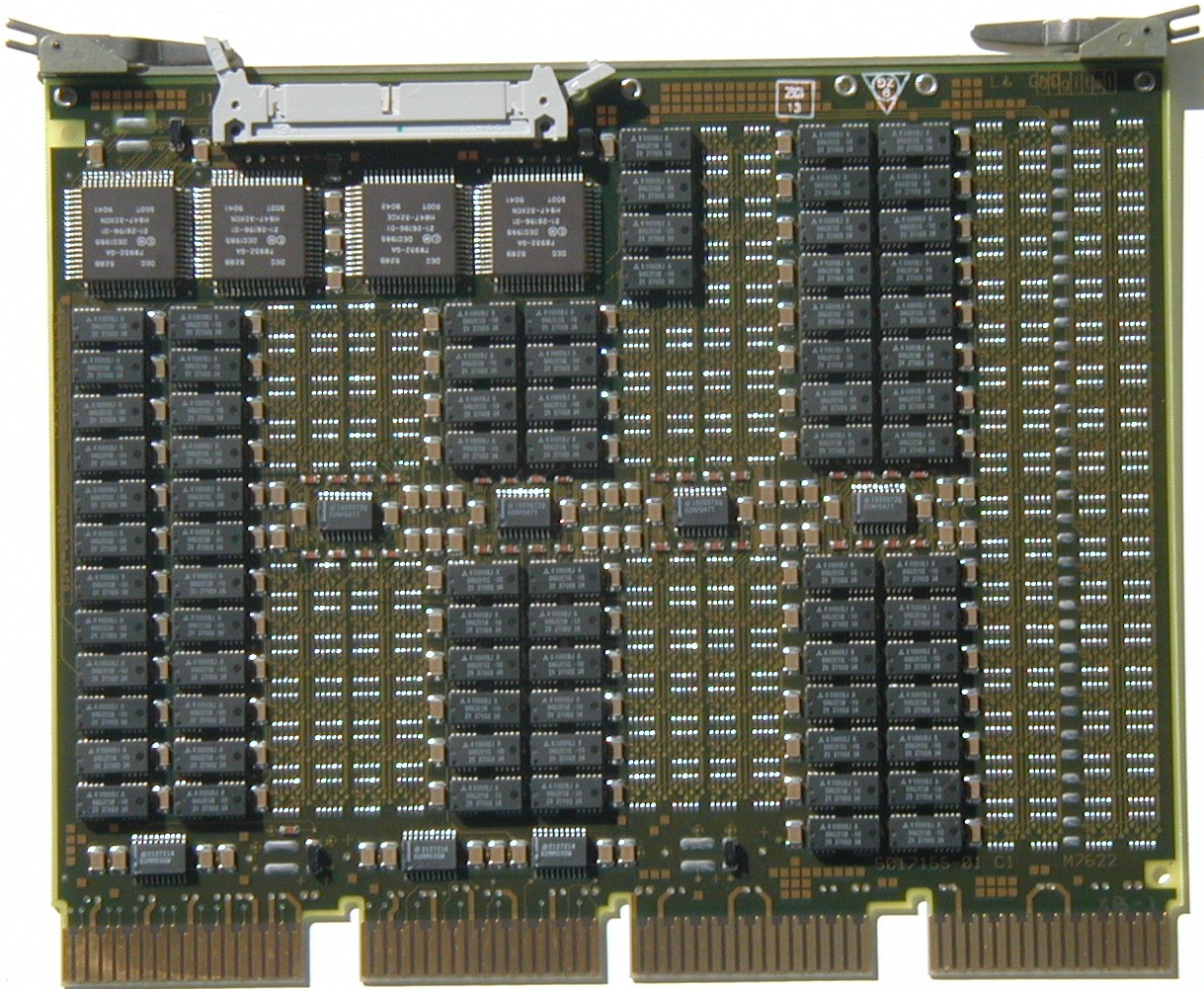

    M7622-BP 16MB MEM, 4MB DRAM ARRAY, QBUS KA650 Q 1 DEC QBUS Modul M7622BP, 16MB MEM, 4MB DRAM ARRAY, von oben
    M7624-CA KA640-AA QR/QS/QT CPU,MULTIUSER,4ME VAX CPU VAX 3300/3400 KA640 Q 0
    M7624-DA MICROVAX33/3400 CPU,1-USER 4M  KA640 Q 0
    M7624-DW KA640-BA  KA640 Q 0

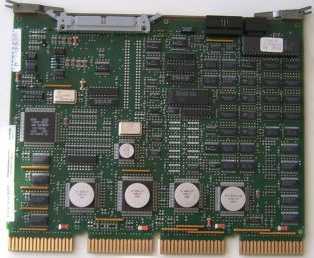

    M7625-AA KA655-AA, CVAX 60NS CPU MODULE  KA655 Q 0

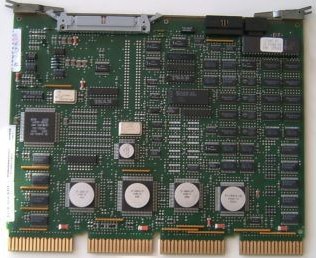

    M7625-BA KA655-BA CPU BOARD  KA655 Q 0
    M7626-AA KA660-AA, VAX4000-200 CPU MOD, CPU Rev: D5,SHAC,SGE  KA660  Q 0
    M7626-BA VAX 4000(SERVER)CPU,SHAC,SGEC  KA650 Q 0
    M7635-AA DS5400 CPU MODULE     Q 0
    M7636-AA I/O MODULE: DSSI INTERFACE,ET    Q 0
    M7637-AA DS 5500 CPU MODULE,MEM CNTRL   Q 0

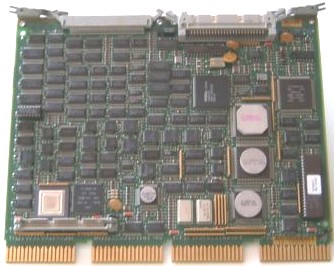

    M7638-AA I/O MOD @25MHZ W/QBUS,DSSI,SC für DECsystem 5500 (KN220-CPU)  KN220 Q 0
    M7639-BA DS 5500 64MB ECC MEM ARRAY    Q 0

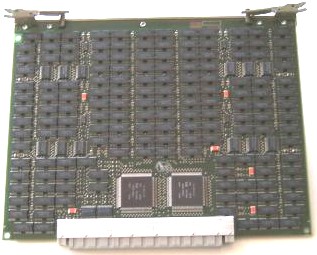

    MS7639-BL 32MB Memory modul für DEC-System5500 (KN220-CPU) MS670-BA
    MS220
    Q 0
    M7651 DRV11-WA,DMA 18/22-Bit parallel Interface DRV11 Q 4 M7651.jpg (78341 Byte)
    M7651-PA DRV11-WA  DRV11 Q 0
    M7656 Q-BUS SINGLE BOARD (VSV21-AA)    Q 0

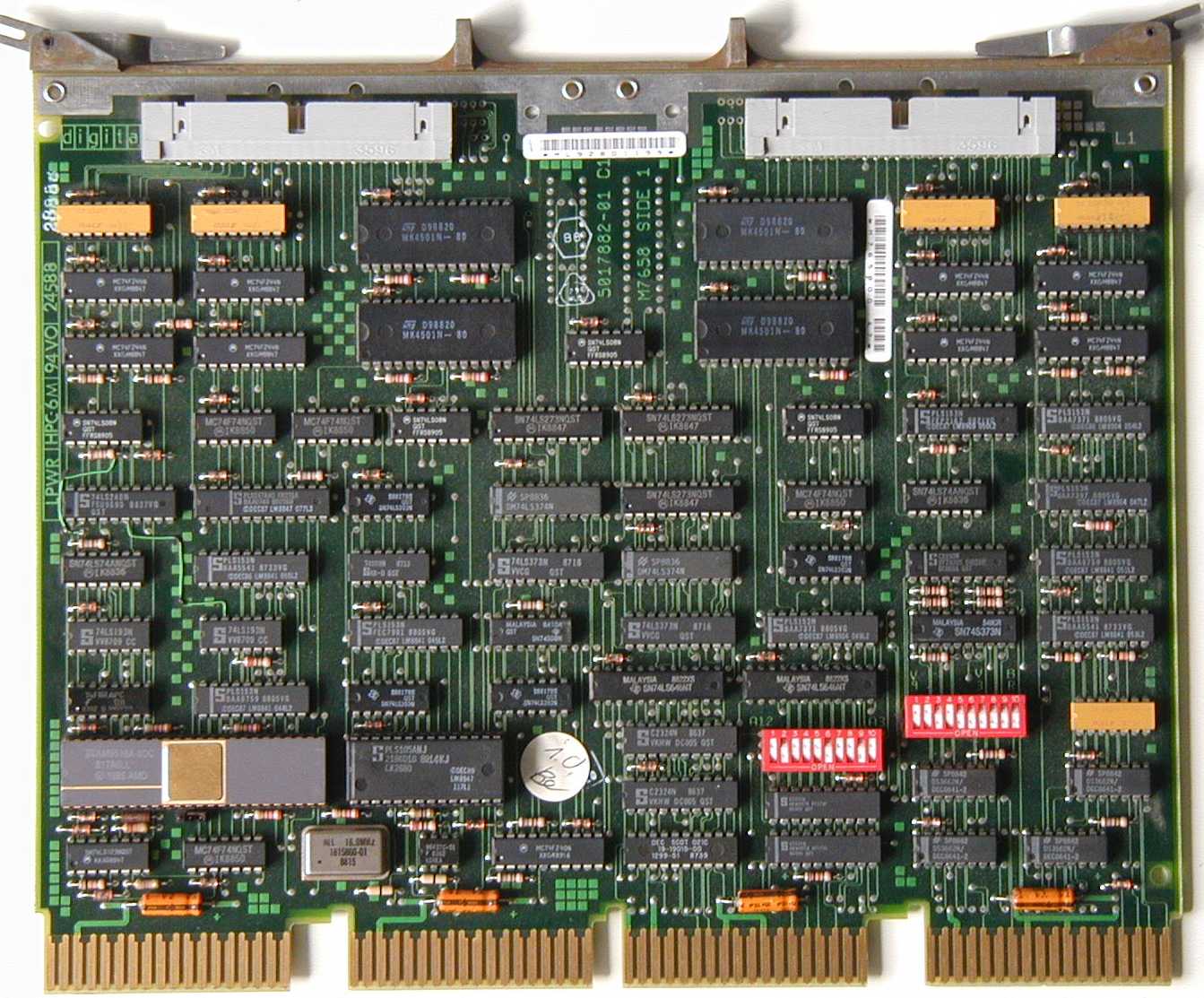

    M7658-PA high-performance Q-BUS parallel I/O interface  DRQ3B Q 0 M7658.jpg (208823 Byte)
    M7670 Forward B.O.T. timer TU10 Q 0
    M7676-AA KXT11-AB, FALCON CIRCUT BOARD  KXT11 Q 0
    M7677-YA MONITORS, FAN, BLOWER   Q 0

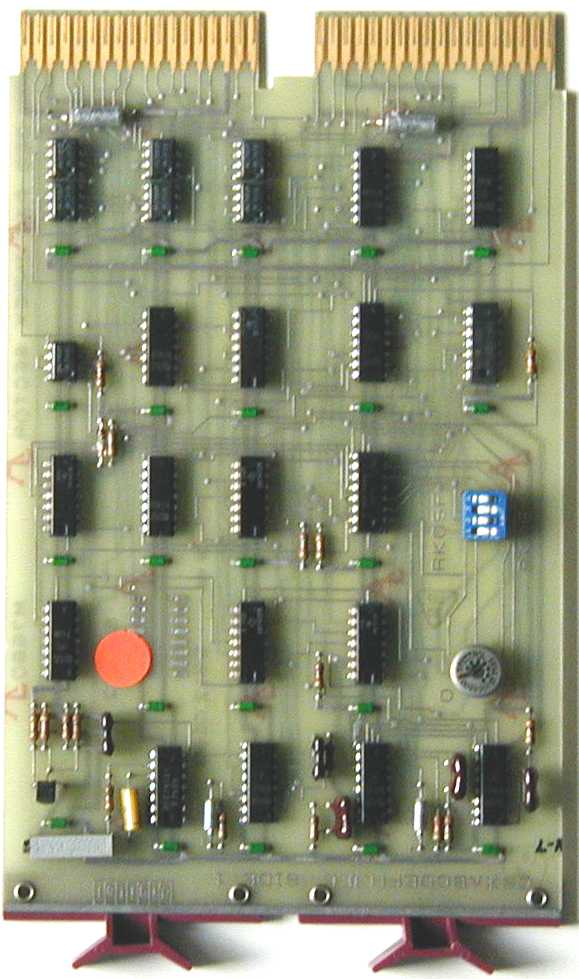

    M7680 DEC PAK Index Sector (RK05 Controller) RK05 Q 1 DEC QBUS Modul M7680, RK05 Controller (102387 Byte)

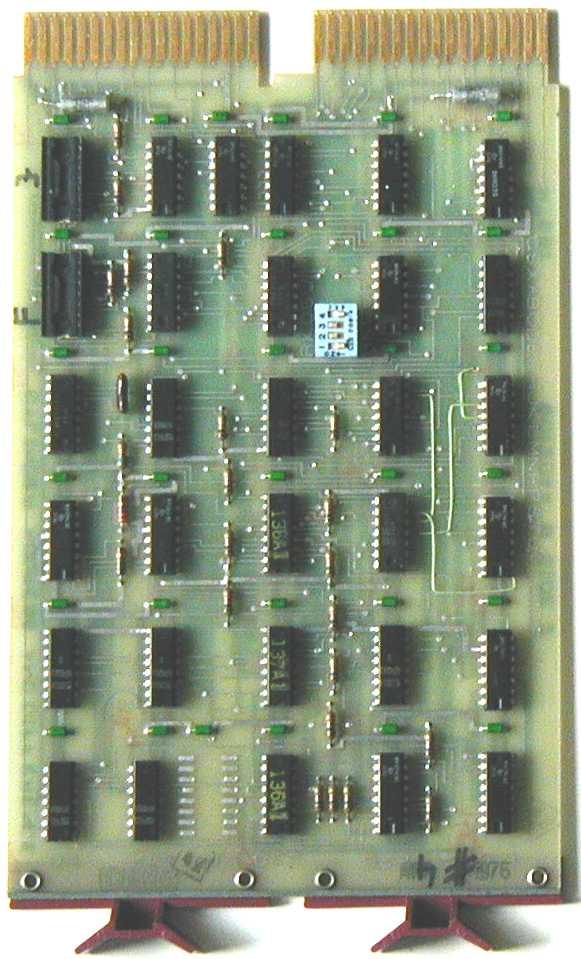

    M7681 CYLINDER ADDRESS + TRACK DIFF RK05 Q 1 M7681.jpg (104677 Byte)
    M7684 CONTROL SEQUENCER RM02   0
    M7685 RM02,3,5 DATA Sequenzer RM02   0
    M7686-YA RM02,3,5 CONTROL INTERFACE HEX RM02   0
    M7687 RM02,3,5 Drive INTERFACE RM02   0
