    Liste der D|I|G|I|T|A|L (DEC) Module: M8300-M8999:

    Diese Listen dienen zur Information, welche Module der Hersteller produziert hat. Die Anzahl unserer lieferbaren Module werden in der Spalte "Lagerbestand" dokumentiert.
    These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".
    Modulname Bezeichnung System options QBUS Unibus Lager- bestand Bild

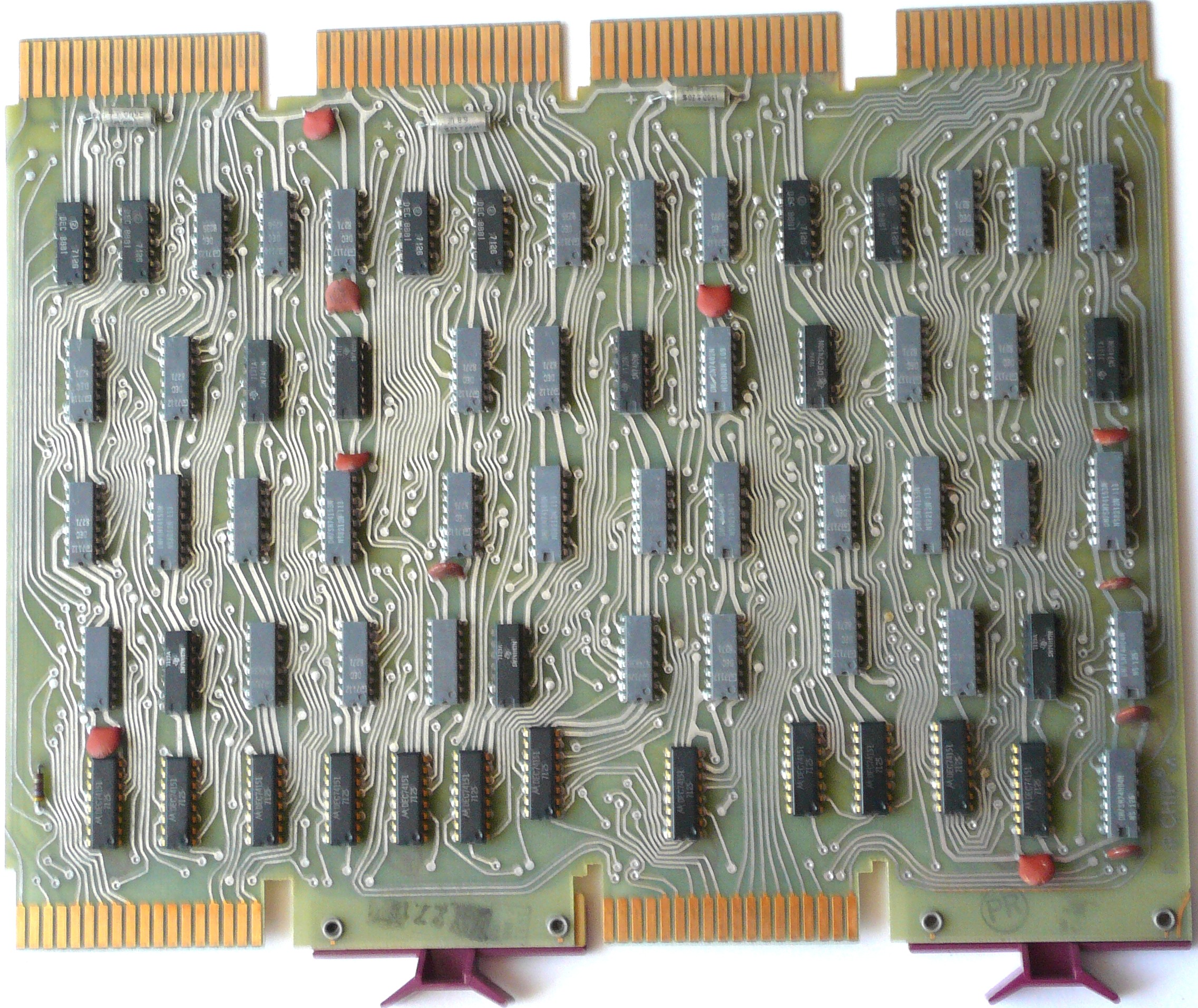

    M8300 MAJOR REGISTER   U 2 DIGITAL DEC Modul MAJOR REGISTER m8300, UNIBUS, Ansicht von oben

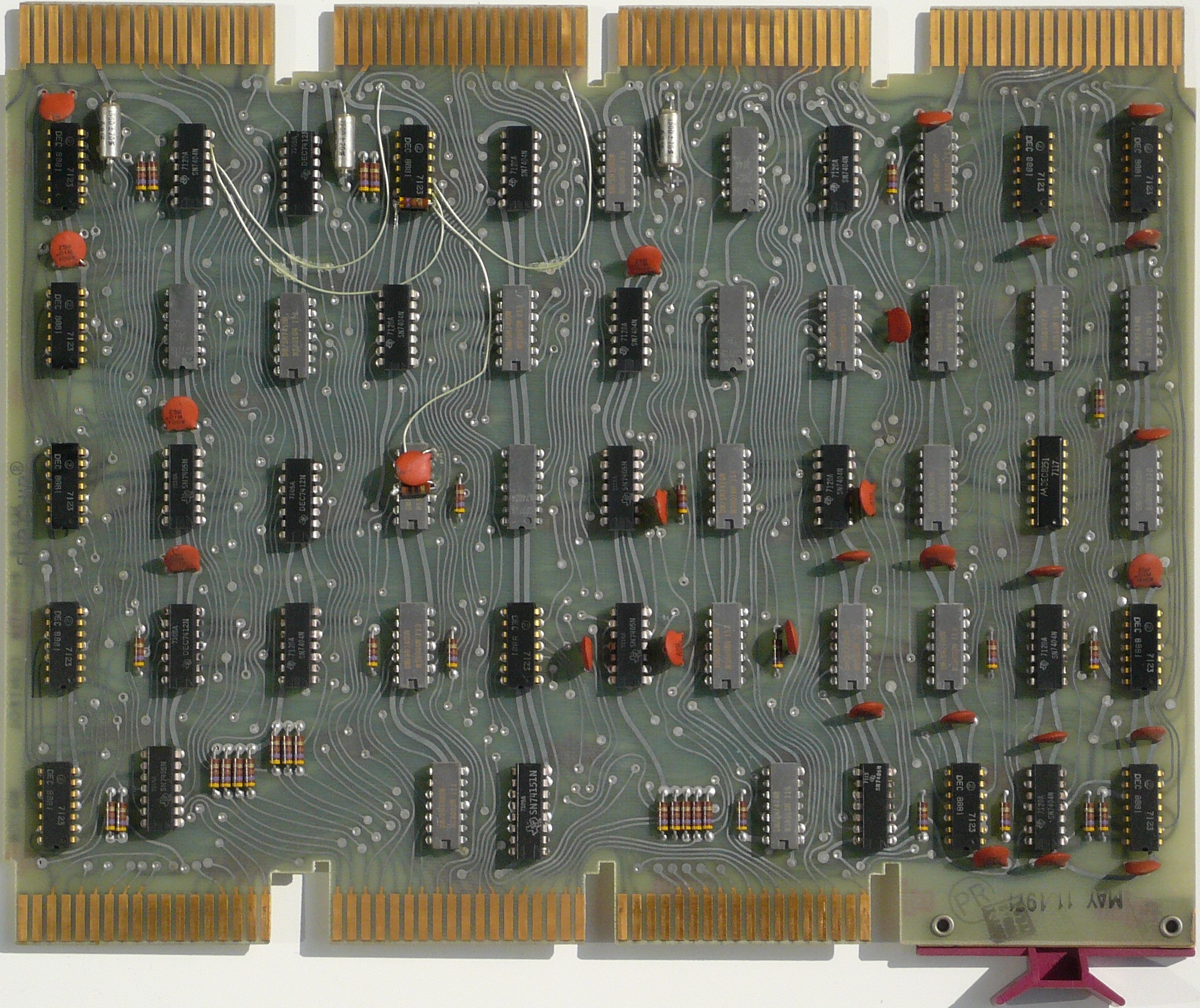

    M8310 CONTROL, MAJOR REGISTER   U 3 DIGITAL DEC Modul CONTROL, MAJOR REGISTER M8310, UNIBUS, Ansicht von oben
    M8315 CPU OMNIBUS 8E INSTRUCT    U 0
    M8316 8A XTAL CLOCK OPT BRD #1    U 0

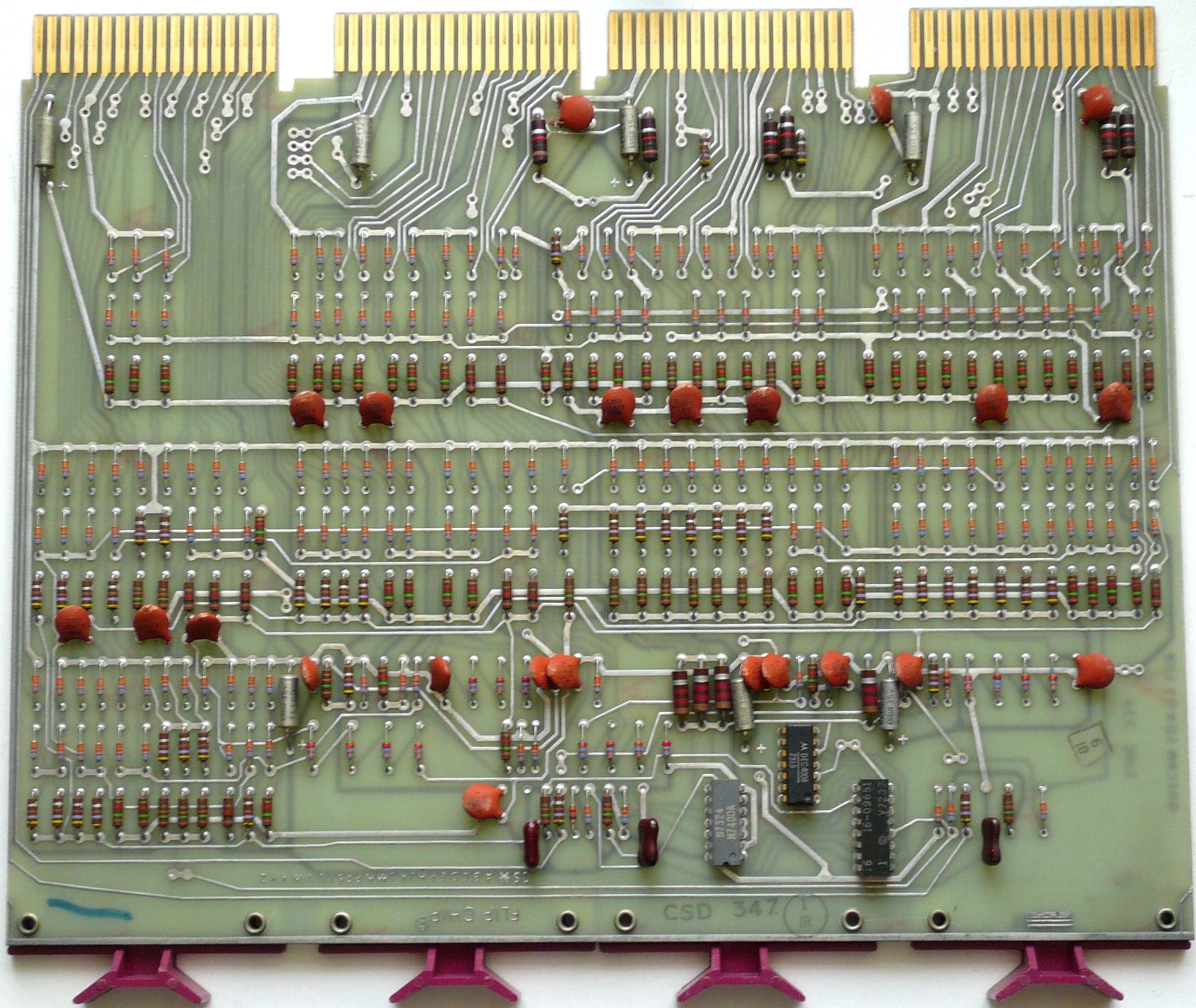

    M8320 LOADS, BUS VT14   U 2 M8320.JPG (2681584 Byte)

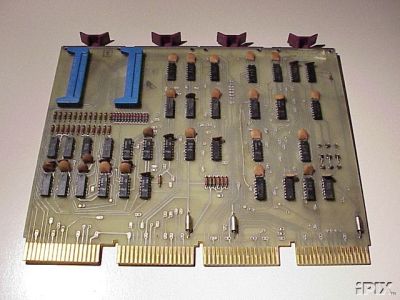

    M8326 ?   U 0 DIGITAL DEC Modul M8326, UNIBUS

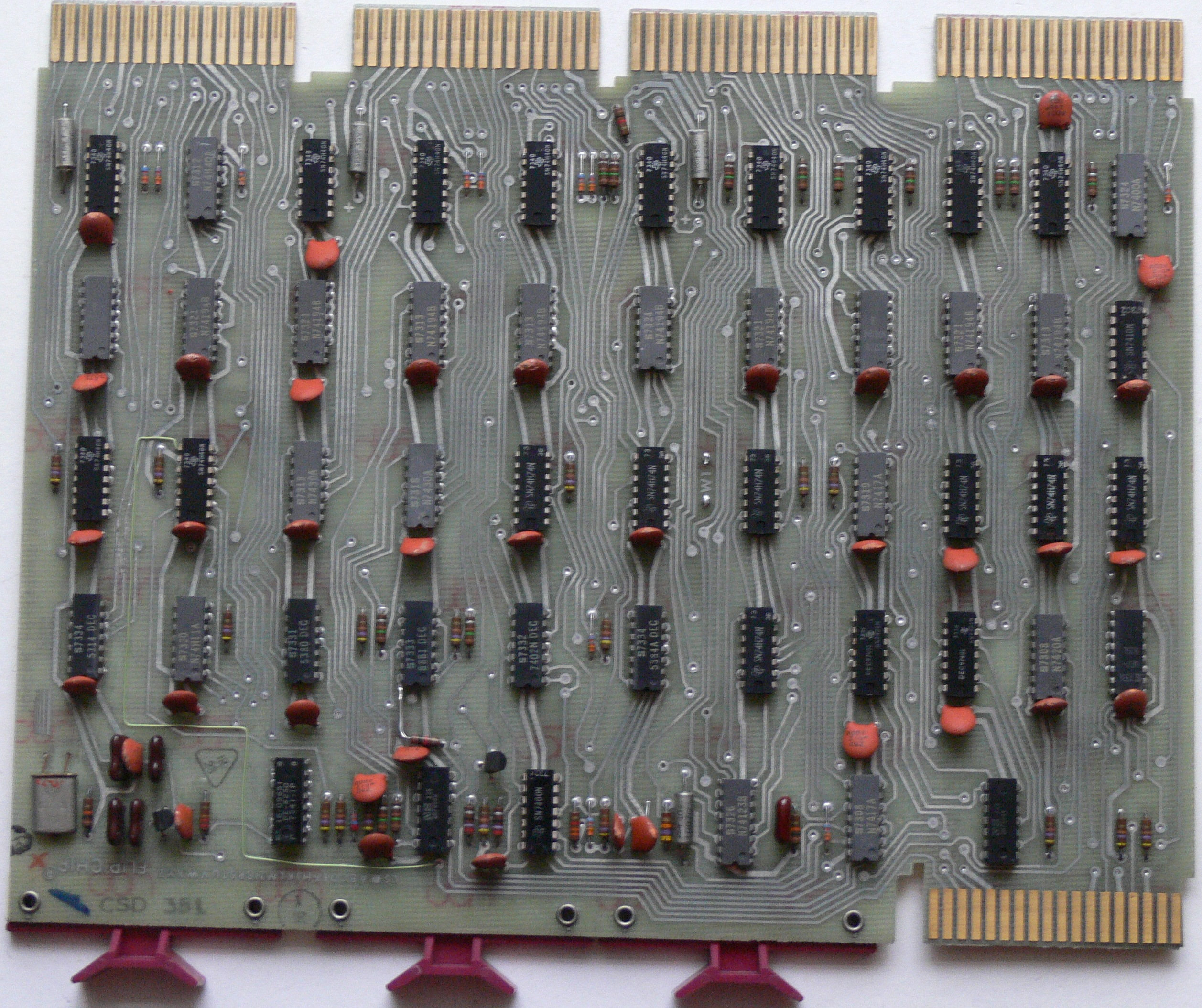

    M8330 TIMING GENERATOR VT14   U 1 M8330.JPG (1834933 Byte)
    M8340 DECODER AND STEPCOUNTER   U 1 M8320.JPG (2681584 Byte)

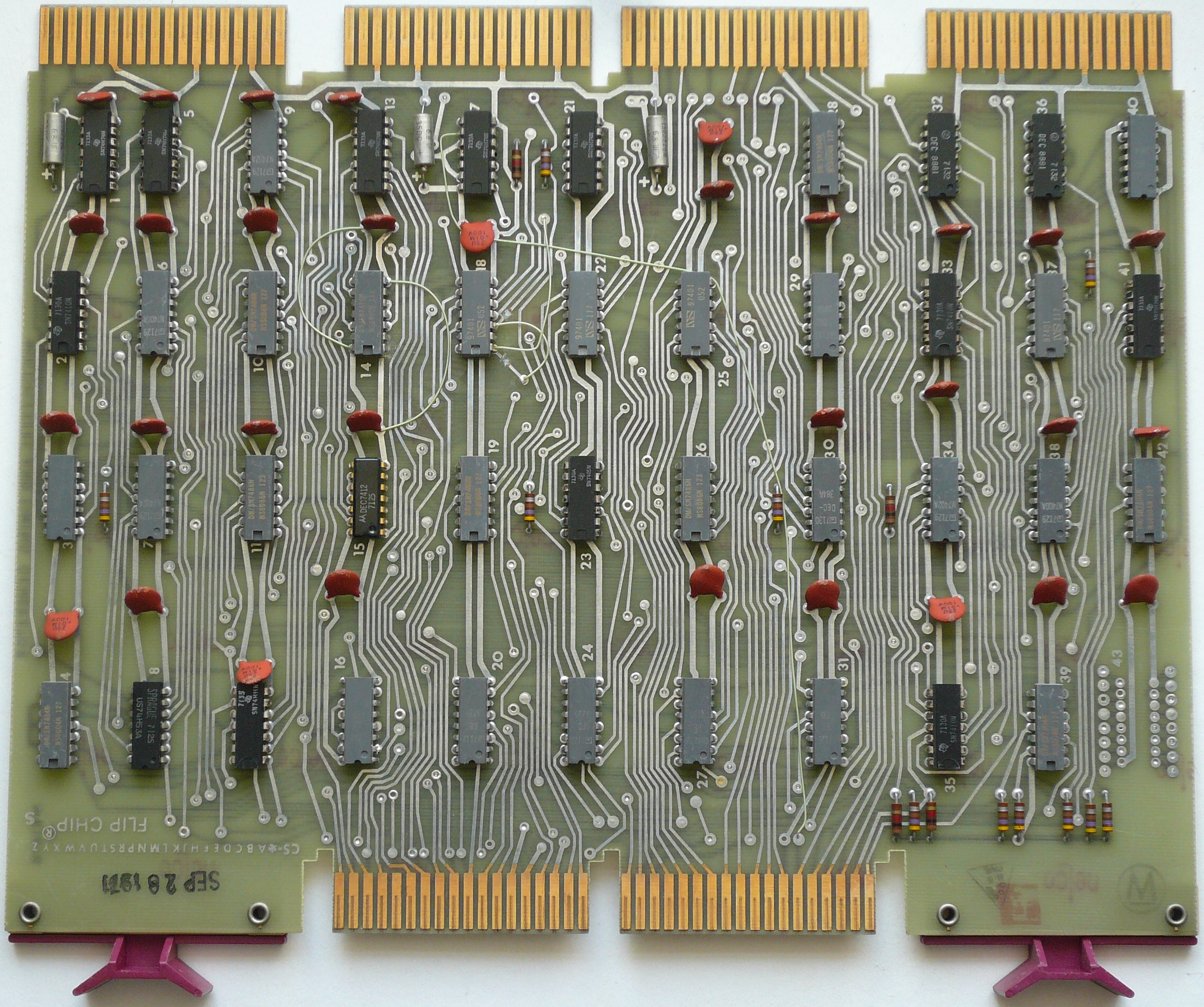

    M8341 MULTIPLEXORS & TIMING GENERAT   U 1 M8341.JPG (2763829 Byte)
    M8350 POSITIVE 10 BUS INTERFACE   U 1 M8350.JPG (2676878 Byte)
    M8357 RX8E RX01/RX02 INTERFACE for PDP RX01/02 U 0 DIGITAL DEC Modul RX8E RX01/RX02 INTERFACE for PDP M8357, UNIBUS

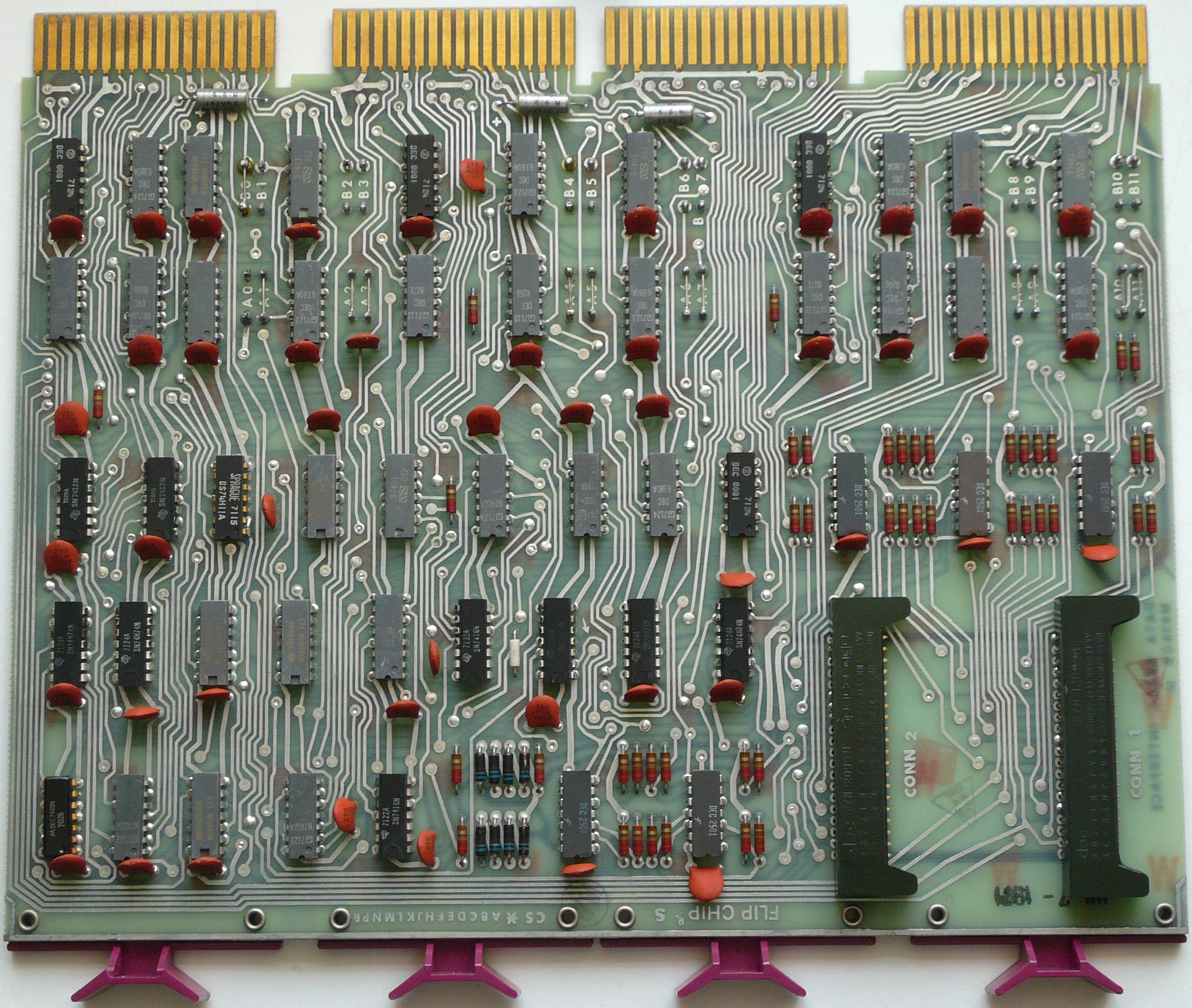

    M8360 Data Break Interface  ? U 3 M8360.JPG (2651979 Byte)
    M8373-AF 256K +39Bit MOS Memory VAX785
    ???
    U 3 DEC Modul M8373, unibus
    M8375 MEMORY CONTROL,4-LAYER HEX 12   U 0
    M8376 SBI INTERFACE,4-LAYER HEX 12    U 0
    M8377 T11 CPU 32KB RAM  KXT11-CA U 0
    M8388 RB730 INTEG. DISK CONT. HEX    U 0
    M8390 DAP (DATA PATH)   U 0
    M8391-YA MEM CONTR W BATTERY BACKUP   U 0
    M8392-AA 68020, 1-Mbyte, 2 x 8-channel UARTs, Q-BUS   Q 0
    M8392-BA 68020, 1-Mbyte, 2 x 8-channel UARTs with S-box handle   Q 0
    M8394 WRITEABLE CONTROL STORE,HEX   U 0
    M8394 WRITEABLE CONTROL STORE,HEX   U 0
    M8396 DFM32 I/O MUX, HEX 8 async lines DFM32 U 0
    M8398 24-LINE DMA ASYNC COMM MODULE, UNIBUS DMZ32 U 0
    M8437-AA M8437 W ROM SET "A"   U 0
    M8541 CONTROL RAW ADDRESS   U 0
    M8578 PROM/ROM module with 16 sockets; 24/28-pin devices including 8K by 8 static RAMs, UNIVERSAL Q-22 BUS EPROM MRV11-D Q 0
    M8586 LP20 control, UNIBUS   U 0
    M8587 LP20 data path, UNIBUS   U 0
    M8629-BA 64K 36BIT ECC MOS RAM   U 0
    M8631-AA 4-Kword 16-bit 2K x 8 static CMOS RAM with 96-hour battery backup (Also M8631-AF, -AL). Q22. MCV11-DA Q 0
    M8631-CA  4-Kword 16-bit 2K x 8 static CMOS RAM with 96-hour battery backup (Also M8631-CF, -CL). Q22. MCV11-DC Q 0

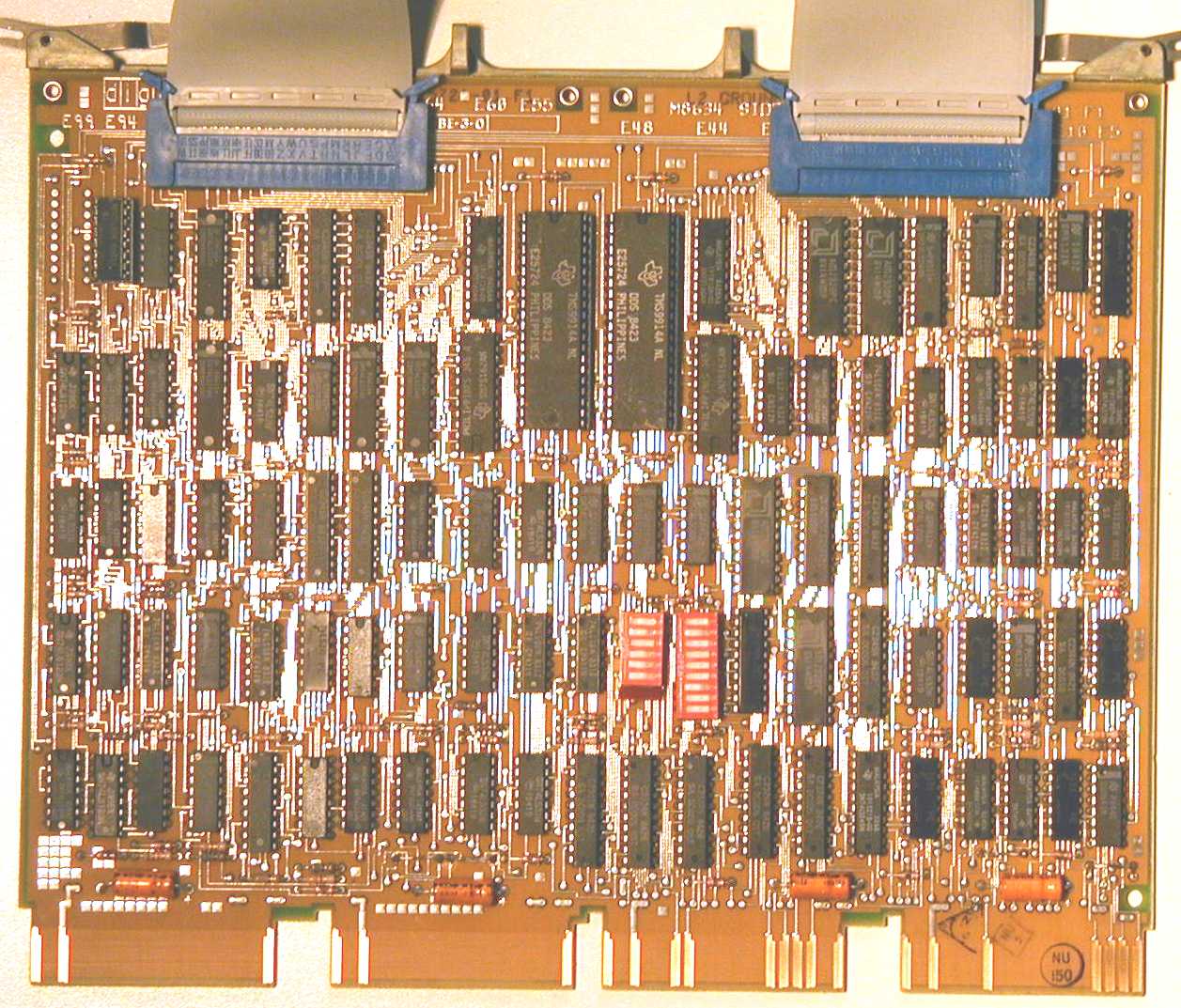

    M8634 QBUS INTER. GEN PURPOSE BUS, DMA version of IEEE(GPIB) interface IEQ11-A Q 1 DIGITAL DEC Modul GEN PURPOSE BUS, DMA version of IEEE(GPIB) interface M8634, QBUS
    M8634-PA Communications Controller (IEC/IEEE)(for BA200 series) IEQ11-S Q 0 DIGITAL DEC Modul Communications Controller (IEC/IEEE) M8634 (203286 Byte)
    M8636 Watchdog Timer, 5 in, 2 out, optical isolation4  KWV11-W Q 0
    M8637-BA 1-Mbyte ECC PMI RAM with CSR. Q22. MSV11-JB Q 0 DIGITAL DEC Modul 1-Mbyte ECC PMI RAM with CSR. Q22. M8637-BA
    M8637-CA 2-Mbyte ECC PMI RAM with CSR, Q22. MSV11-JC Q 0
    M8637-DA MSV11-JD 1MB ECC RAM MEM for PDP11/83,84  MSV11-JD Q 0
    M8637-EA MSV11 2-Mbyte ECC RAM MODULE for PDP11/83,84 MSV11-JE Q 1 DIGITAL DEC Modul M8637-EA, MSV11 2-Mbyte ECC RAM MODULE for PDP11/83,84
    M8638 HDLC DMA single channel sync MUX controller   U 0

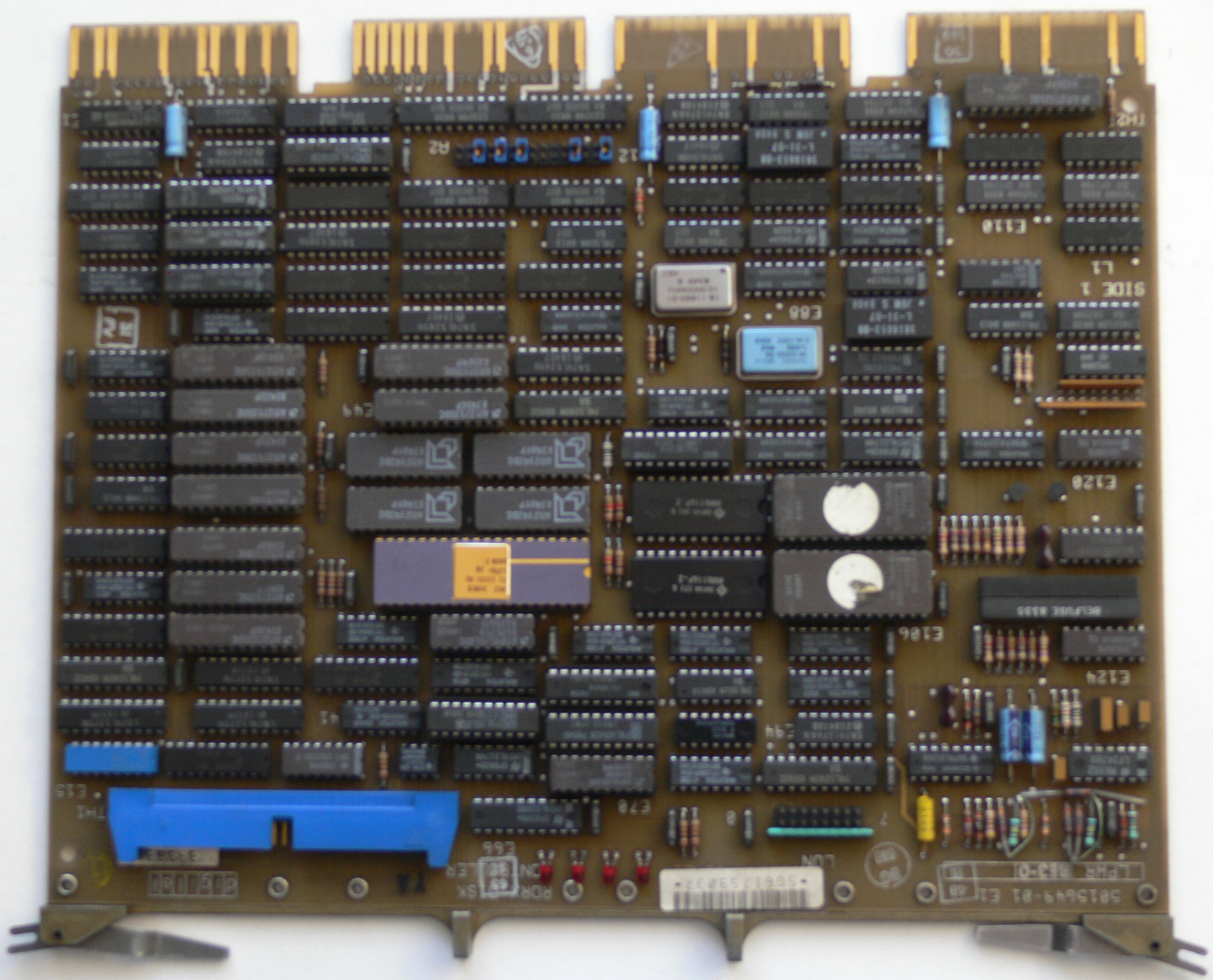

    M8639 RD51/52 & RX50 MFM Disk control module RQDX1 Q 0 DIGITAL DEC RQDX1 DISK CTRL MODULE, Q-BUS for PDP m8639-ya
    M8639-YA RQDX1 DISK CTRL MODULE, Q-BUS for PDP RQDX1 Q 2 DIGITAL DEC M8639 RD51/52 & RX50 MFM Disk control module (147898 Byte)
    M8639-YB RQDX2 DISK CTRL FOR RD51/RD52 for PDP RQDX2 Q 1
    M8648 UNIBUS INTERFACE    U 0
    M8650 REPLACEMENT FOR M865,QUADX8.5   U 0

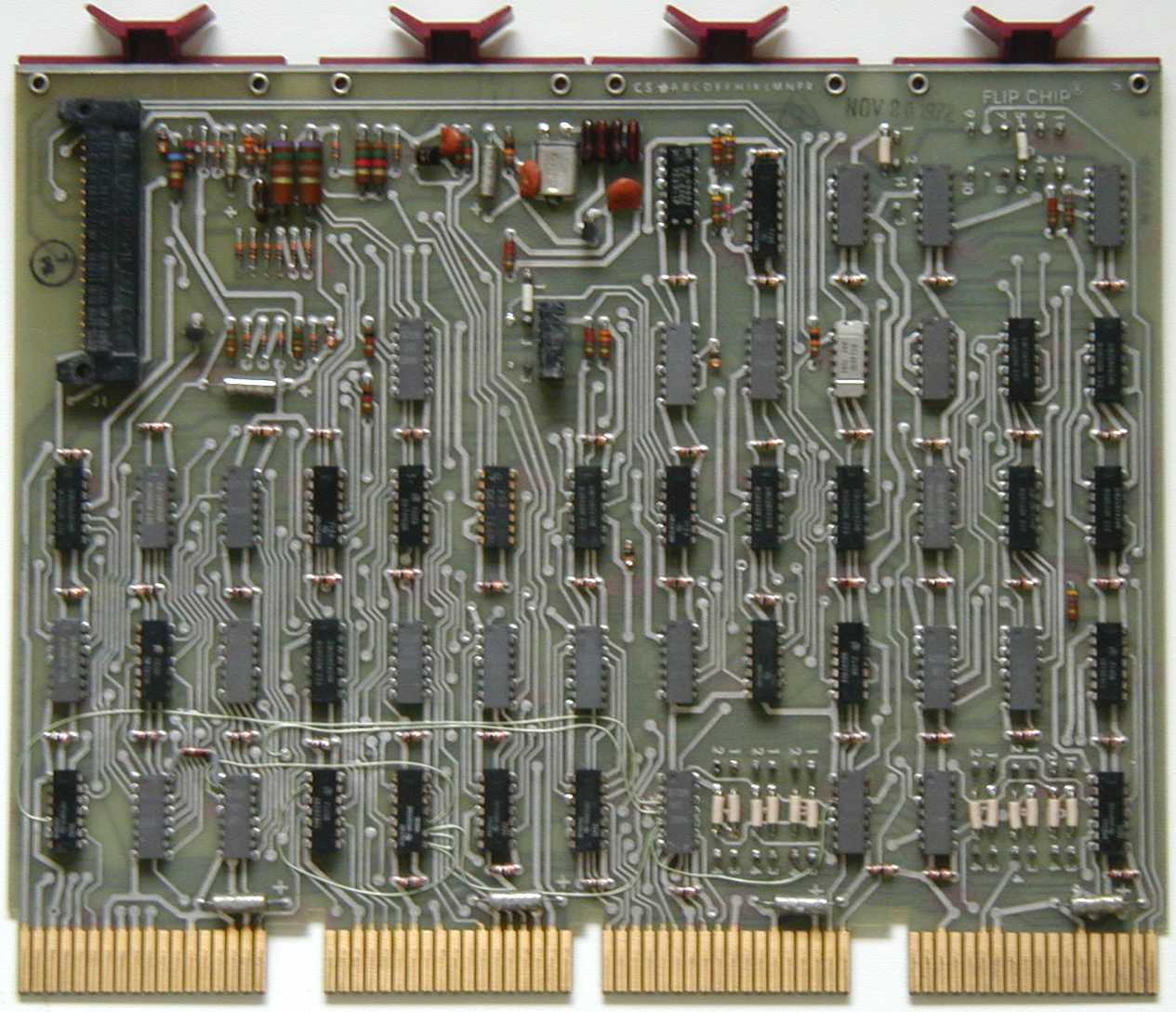

    M8650-YA ASYNCHRONUS DATA CONTROL    U 1 DIGITAL DEC Modul ASYNCHRONUS DATA CONTROL M8650YA (147437 Byte)

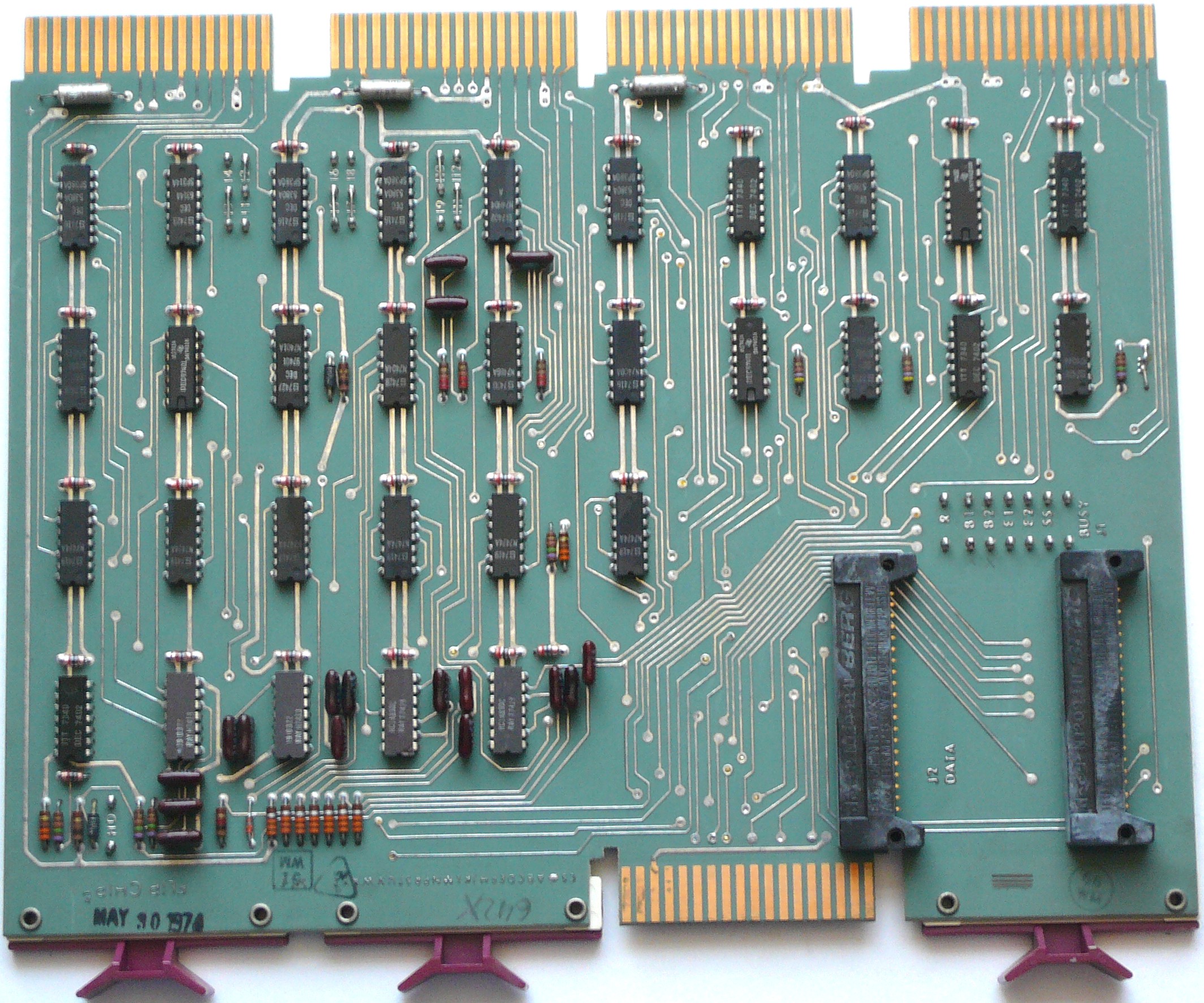

    M8653 Async. modem control M8653C   U 1

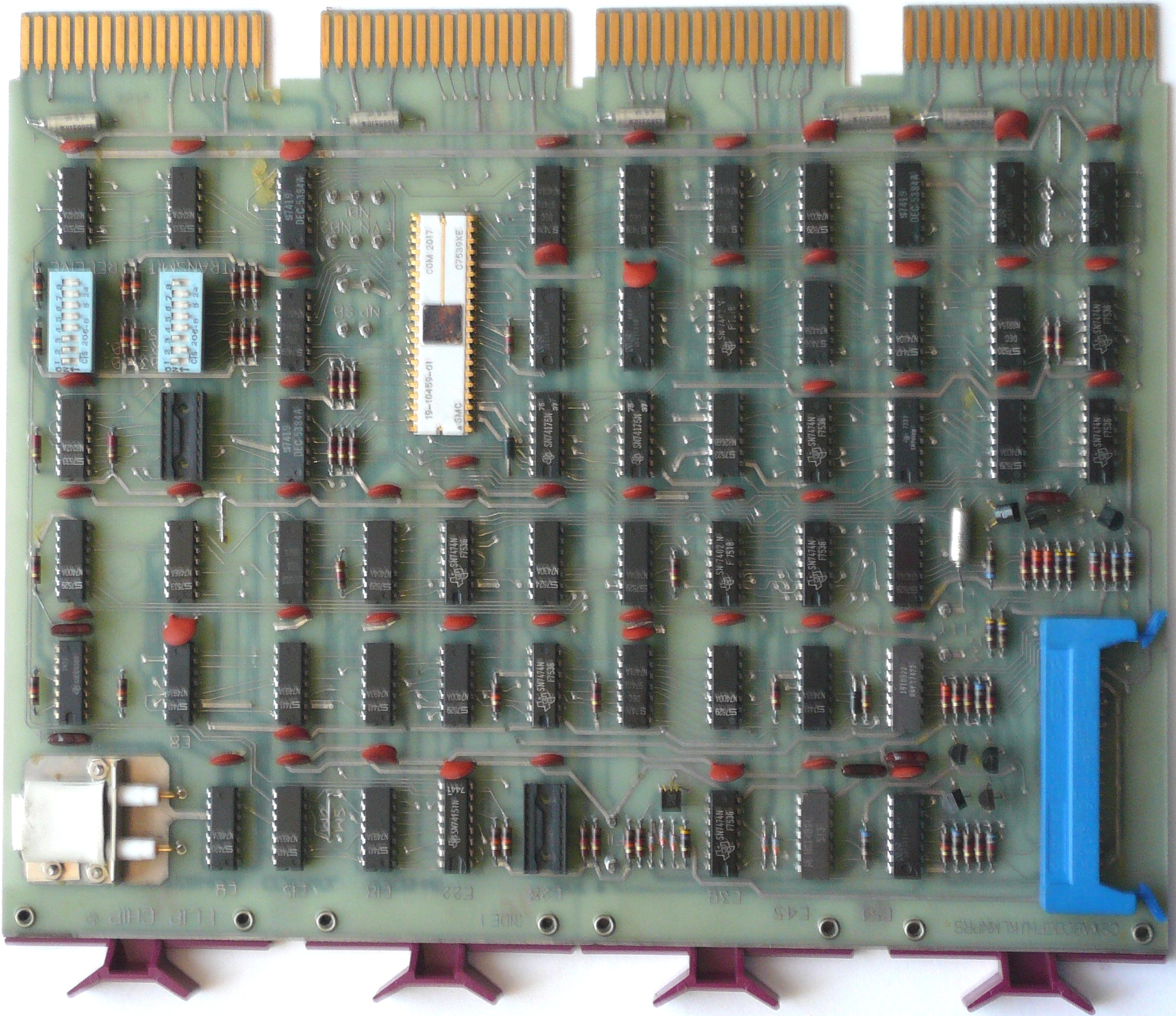

    M8655 TERMINAL CONTRL KL8-JA  KL8-JA U 1 m8655.jpg (1058500 Byte)

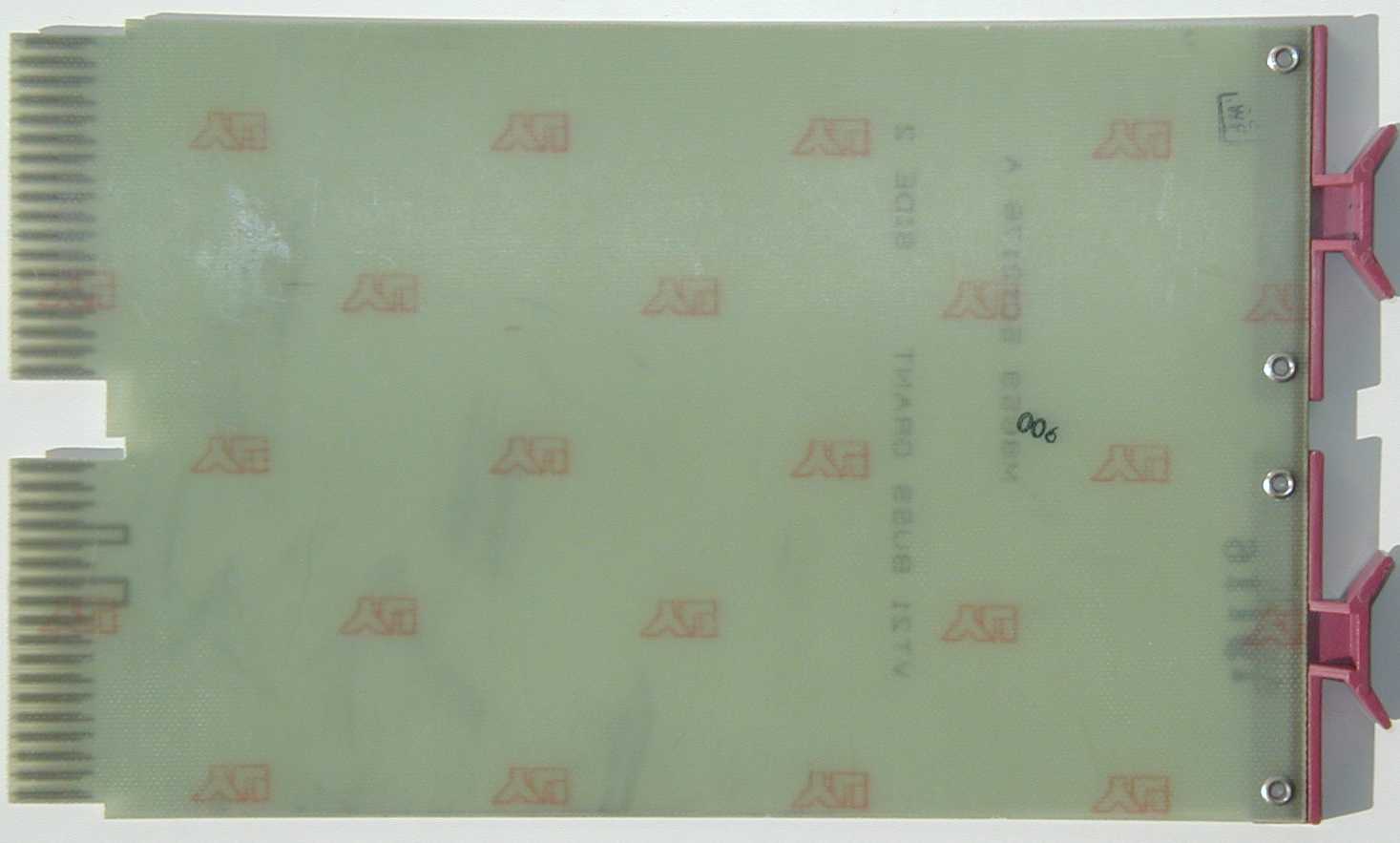

    M8659 VT71 BUS GRANT BRD, LSI-11 Bus Grant card (VT71 Grant Card), Q-BUS VT71 Q 3 DIGITAL DEC Modul VT71 BUS GRANT BRD, LSI-11 Bus Grant card M8659 (49293 Byte)
    M8685 DATA SEQUENCER, 4-LAYER HEX   Q 0
    M8687 RM05 DRIVE INTERFACE, HEX, Q-BUS RM05 Q 0
    M8716 DR11-W, DMA INTERFACE, UNIBUS DR11-W U 0
    M8717 Interprocessor interrupt and sanity timer, UNIBUS   U 0
    M8718 Modem control, 16-lines (CTS & RTS), UNIBUS   U 0
    M8719 UNIBUS to D-BUS cable (I/O daisy chain bus) control and interface IP112 U 0
    M8720-YA 4-Kword 18-bit MOS RAM, UNIBUS MSS11-KA U 0
    M8720-YB 8-Kword 18-bit MOS RAM, UNIBUS MSS11-KB U 0
    M8720-YC 12-Kword 18-bit MOS RAM, UNIBUS MSS11-KC U 0
    M8720-YD 16-Kword 18-bit MOS RAM, UNIBUS MSS11-KD U 0
    M8720-YE 4-Kword 18-bit static MOS RAM, UNIBUS MSS11-KE U 0
    M8720-YF 8-Kword 18-bit static MOS RAM, UNIBUS MSS11-KF U 0
    M8720-YH 12-Kword 18-bit static MOS RAM, UNIBUS MSS11-KH U 0
    M8720-YJ 16-Kword 18-bit static MOS RAM, UNIBUS MSS11-KJ U 0
    M8721-YA UNIBUS repeater   U 0
    M8721-YB Isolated loopversion DT07 port module, UNIBUS  DT07 U 0
    M8721-YC DT07 switched UNIBUS repeater, UNIBUS  DT07 U 0
    M8721-YD Port terminated DT07 port module, UNIBUS DT07 U 0
    M8722-AH 128-Kbyte MOS ECC memory (11/44, 11/24), UNIBUS MS11-MA U 0
    M8722-BA 256-Kbyte MOS ECC memory (11/44, 11/24), UNIBUS MS11-MB U 0
    M8728-AA 64-Kword 39-bit MOS memory array (11/70, 11/750) MK11 U 0
    M8728-CM 16-Kword 39-bit MOS memory array (11/70), UNIBUS MK11 U 0
    M8730 Calendar and clock module, UNIBUS KW11-C U 0
    M8739 LESI-to-UNIBUS interface for RC25, TU81, QUAD KLESI-UA U 0
    M8743-AA 512KB (256K X 2) ECC RAM, UNIBUS  MDECS-AA U 0
    M8743-BA 1MB(512K X 22)ECC RAM, UNIBUS  MS11-PB U 0
    M8750-CA VAX-11/750 1Mbyte MOS memory assembly ECC/64K   U 0

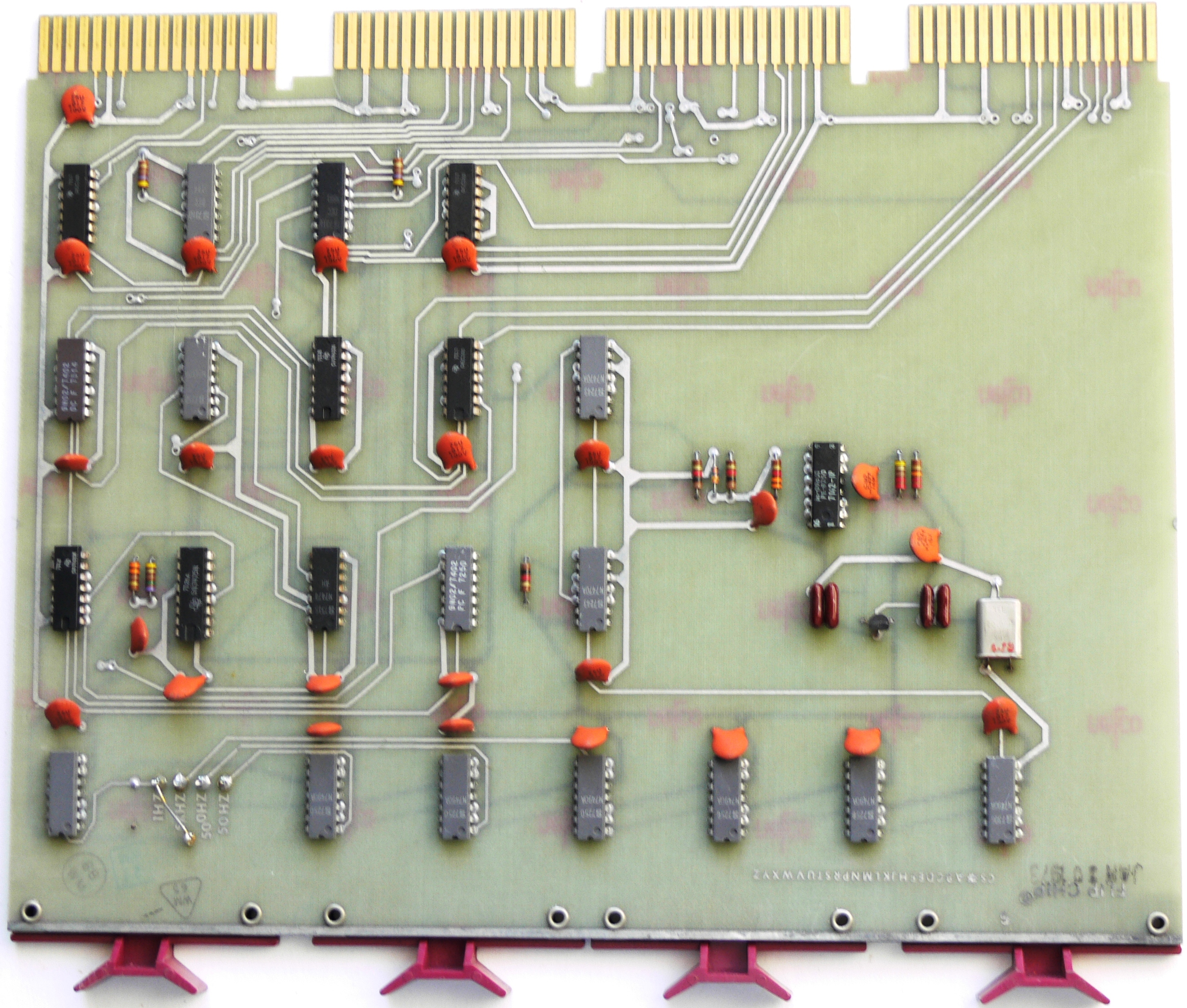

    M8830 Real Time clock crystal M8830-C   U 1 M8830.JPG (2724413 Byte)

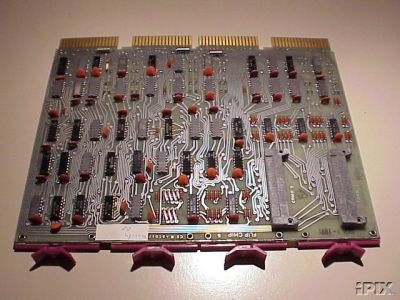

    M8860     U 0 DEC module M8860
    M8901 TU16 data synchronizer, replaced by M8901-YB, UNIBUS TU16 U 0
    M8901-YA TM02-FE data synchronizer for 75 IPS drive,replaced by M8901-YC, UNIBUS TU16 U 0
    M8901-YB DATA SYNC. TU16, QUAD 8.5 for PDP, UNIBUS TU16 U 0
    M8901-YC Data synchronizer for 75 IPS drive(Replaces M8901-YA, -YC) TM02-FE U 0
    M8901-YD DATA SYNC FOR 125 IPS DRIVE, UNIBUS TM03-AB U 0
    M8902 TM02 TAPE CONTROL, PE, QUAD, UNIBUS  TM02-FA U 0
    M8902-YA M8902 for 75 IPS drive (also TM02-FF, -FH, -FJ) TM02-FE U 0
    M8903 TM02 tape control, common mode(also TM02-FB, -FC, -FD) TM02-FA U 0
    M8903-YA M8903 for 75 IPS drive (also TM02-FF, -FH, -FJ), UNIBUS TM02-FE U 0
    M8904 TM02 tape control, NRZI (also TM02-FB, -FC, -FD), UNIBUS TM02-FA U 0
    M8904-YA TU45 M8904 (also TM02-FF, -FH, -FJ), MAINTENANCE REGISTER-TM03 TM02-FE U 0
    M8905 TAPE CONT NRZI (TM02), UNIBUS TM02-FA U 0
    M8905-YA MAINENANCE REGISTER-TM03, UNIBUS TM02-FE U 0
    M8905-YB TM03 M8905, UNIBUS TM03 U 0
    M8906 16-BIT FIDDLER (TM02), UNIBUS TM02 U 0
    M8907 CONN TERM, UNIBUS    U 0
    M8908 RECEIVER/TERM, UNIBUS  TM02 U 0
    M8908-YA TM03 MASSBUS interface (replaces M8908) TERM RESISTOR TM03 U 0
    M8909 TM02 MASSBUS interface (replaced by M8909-YA), UNIBUS TM02 U 0
    M8909-YA MASS BUSS INTERFACE (TM02+TM03) TM02 U 0
    M8910 LOGIC & WRITE BD (TU16) TU16 U 0
    M8911 Clock and Test LOGIC & WRITE BD, slave clock, motion delay, replaced by M8931 on TE16 TU16 U 0
    M8912 TE16 slave test function generator (TU16)  TU16 U 0
    M8913 DATA DRIVER, 2 H854, 10 lines driven from board, 20 lines brought out, TU16 (from O/M list), UNIBUS  TU16 U 0
    M8913-YA DATA DRIVER, M8913 with terminator resistors, TU16 (from O/M list), UNIBUS  TU16 U 0
    M8916 LOGIC AND WRITE BOARD  TU16 U 0
    M8922 PE CONTROL, TS04   U 0
    M8923 READ CONTROL    U 0
    M8924 PE FORMAT   U 0
    M8926 TU10 TU16W Interface  TU16 U 0
    M8928 TU45 magtape adapter for Pertec 9000 TU16 U 0
    M8929 TS04 WRITE CONTROL    U 0
    M8931 TU16 (TM02 & TM03) SLAVE CLOCK AND MOTION DELAY   U 0
    M8932 TAPE CONTROL P.E.  TM03 U 0
    M8933 MODULE TAPE CONTROL TM03 common mode TM03 U 0
    M8934 TAPE CONTROL, NRZ1  TM03 U 0
    M8935 RS422 PARALLEL LINE UNIT KMC1  TM03 U 0
    M8937 TM03, CONTROL AND WRITE DRIVE  TM03 U 0
    M8940 MTA (MAGTAPE ADAPTOR)   U 0
    M8950 TM78,READ CHANNEL TU78 U 0 DEC modul TM78,READ CHANNEL M8650 (18367 Byte)
    M8951 TM78 ERROR CORRECTION BOARD TU78 U 0
    M8952 CRC + ACRC, TM78  TU78 U 0
    M8953 READ PATH SEQUENCER, TM78  TU78 U 0
    M8955 TM78 PORT  TU78 U 0
    M8956 MASS BUSS DATA PORT, TM78  TU78 U 0 DEC module MASS BUSS DATA PORT, TM78 M8956 (10532 Byte)
    M8957 MASS BUSS CONTROL, TM78  TU78 U 0
    M8958 TM78 TRANSLATOR  TU78 U 0
    M8959 WRITE MICROCONTROLLER, TM78  TU78 U 0
    M8960 TM78 MICROCOMPUTER (8085)  TU78 U 0
    M8962 MICROPROCESSOR, TS04    U 0
    M8963 TS04 MICROPORCESSOR STACK    U 0
    M8964 ROM BOARD    U 0
    M8965 I/O SHIFT REGISTER CONT, TS04    U 0
    M8966 TS04 I/O SILO, FRAME COUNT.    U 0
    M8967 I/O CONTROL. TS04    U 0
    M8968 TS04 ROM EXTENSION BOARD    U 0
    M8970 STI INTERFACE protocol MICRO BD 8085 (QUAD)  TA78 U 0
    M8971 STI INTERFACE Bus logic DRIVER BD 8085 (QUAD) TA78 U 0
    M8972 TA78 MICROCOMPUTER 8085, QUAD) TA78 U 0
    M8973 8085 EXTENDED MEMORY, DBL8.5  TA78 U 0
    M8981-AA KDJ11-EA SPARE CPU MODULE, PDP11/93, 18MHZ quad modul PDP11/93   0
    M8981-BA KDJ11-EB SPARE CPU MODULE 2 PDP11/93   0
