    Liste der D|I|G|I|T|A|L (DEC) Module: A001-A9999
    Diese Listen dienen zur Information, welche Module der Hersteller produziert hat. Die Anzahl unserer lieferbaren Module werden in der Spalte "Lagerbestand" dokumentiert.

    These lists are only informations, which parts had been producted. Our available parts are shown in the row "Lagerbestand".

    A-Series Control Moduls
    These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".

    For further informations see:
    1. D|I|G|I|T|A|L Control handbook 1970, FLIP CHIP,
    2. D|I|G|I|T|A|L Control handbook 1969, Positive logic edition,
    3. D|I|G|I|T|A|L logic handbook 1975-76,

    4. all informations are printed by DIGITAL EQUIPMENT CORPORATION.
    These parts are used in INDAC8, PDP-8/L, PDP-8/I, PDP-9/L, PDP-9/I, PDP-10, PD-P11, PDP-12, PDP-14 and PDP-15

    If you have any pictures or informations of DEC - parts, please inform me.
    Modulname Bezeichnung System options QBUS Unibus Lager- bestand Bild
    A009 Analogue-to-Digital Converter for 11/34 AD11-K U 0
    A010     Q 0

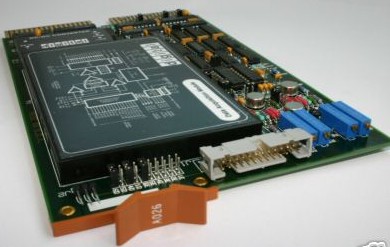

    A026 Analog-card, 16-channel, 12-bit Analogue-to-Digital plus 2-channel, AXV11-C Q 0 Das Bild zeigt das DIGITAL (DEC) Modul A026
    A029 16 Channel flying cap. ex MUX add-on IAV11-C Q 0
    A030 200Khz 32 Channel Analogue-to-Digital
    A030, Converter with DMA, QBUS
    ADQ32-A Q 0
    A030-PA 200Khz 32 Channel, Analogue-to-Digital
    Converter with DMA, (for BA200 series)
    ADQ32-S Q 0
    A100 For Analog to Digital MUX Switches 12V AMX-1 U 3 Das Bild zeigt das DIGITAL (DEC) Modul A100
    A103 For Analog to Dig. MUX Switches 30V AMX-1 - 0
    A111 For Analog to Dig. Guarded Relay MUX Switch   - 0
    A121 For Analog to Dig. MUX Switches 10V AMX-1 - 0
    A123 4 input positive logic MUX   - 0
    A126 8 channel high impedence MUX   - 0
    A200 For Analog to Dig. Op. Amp.   0
    A201 Operational Amplifier   0
    A206 Operational Amplifier for A/D, 10MHz   0
    A207 Operational Amplifier for A/D, 3Mhz   0
    A228 Analog summer drive module VT15 U 0
    A207 Operational Amplifier for A/D, 3Mhz   0

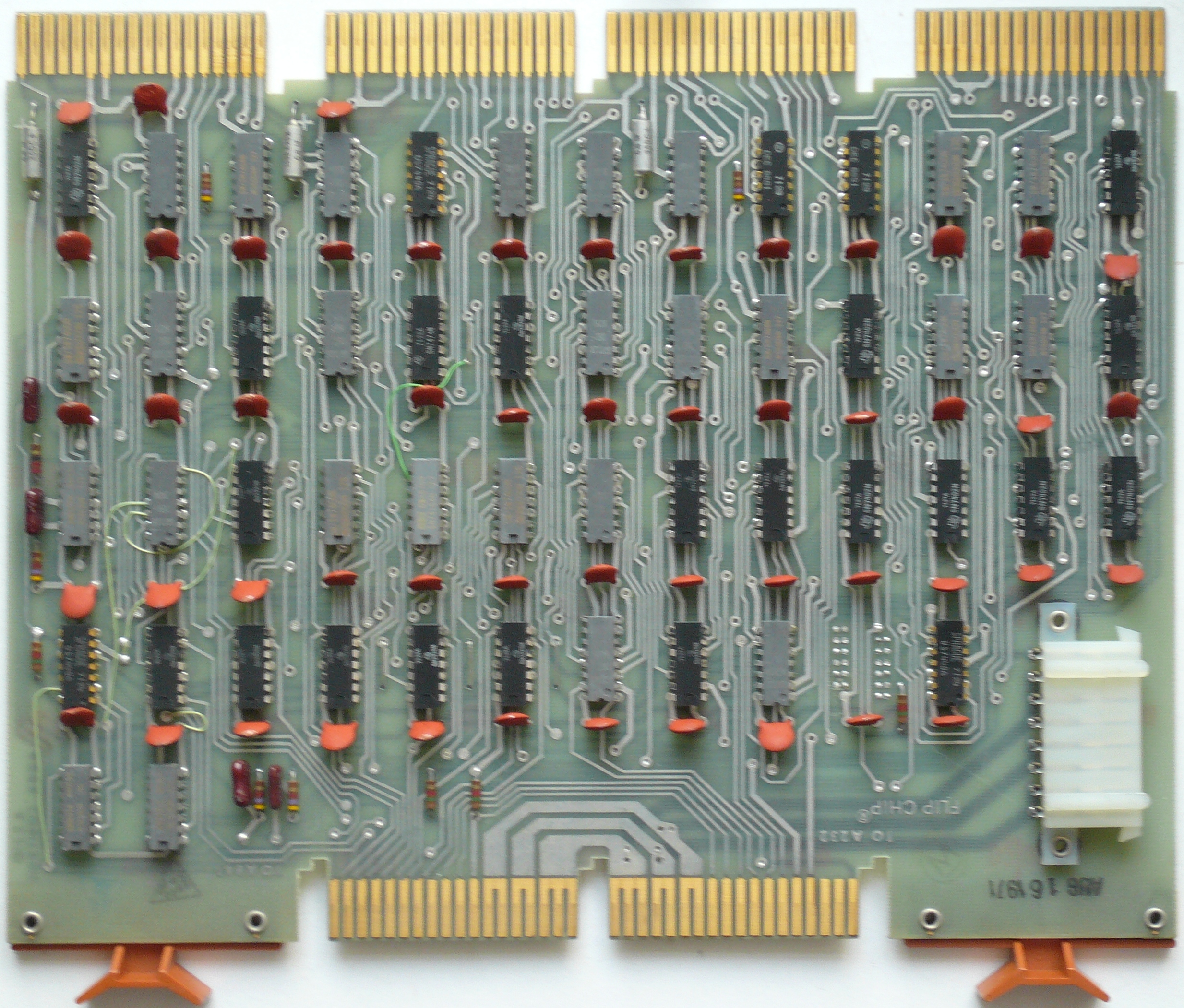

    A231 AD8E Control A231D   U 1 A231.JPG (2562754 Byte)

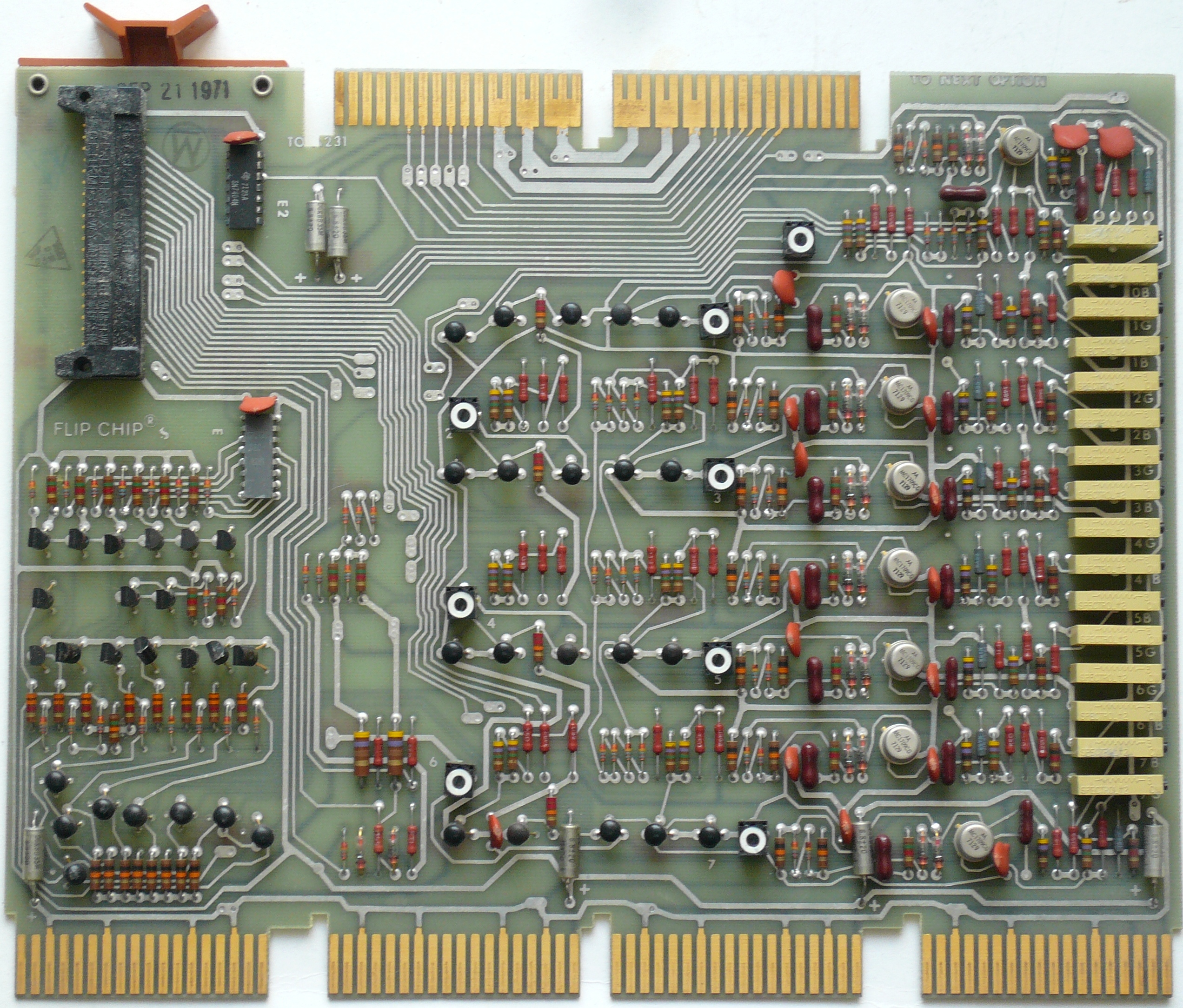

    A232 Analog multiplexer expander   U 1 A232.JPG (2532010 Byte)
    A241 LPS11 4-channel variable gain preamplifier LPSAG-VG U 0
    A242 UNIBUS, LPS11 4-channel fixed gain preamplifier LPSAG U 0
    A246 4 Channel Switched Gain Differential Input
    A246, Preamp, Quint
    MNCAG   0
    A260 Dual amplifier card VT15 U 0
    A317 arbitrary vector module VT15 U 0
    A318 arbitrary vector module for vertical vectors VT15 U 0
    A400 For Analog to Dig. Sample and hold amp. Double Height, double width MNCAM   0
    A404 sample-and-hold, ap time 0,2µsec   U 0
    A406 LPS11 Analogue sample-and-hold (3 of 4) LPSAD-12 U 0
    A407 LPS11 8-channel A/D multiplexor (4 of 4) LPSAD-12 U 0
    A410 4/12 Channel Analog-to-Digital Converter IAV11-A Q 0
    A410-PA 16 Channel Analog-to-Digital Converter IAV1S-AA Q 0
    A410-YA 16 Channel Analog-to-Digital Converter   Q 0
    A411 16 Channel Sample and Hold IAV11-AA Q 0
    A460 1 Channel Sample and Hold   U 0
    A502 Analog-to-Digital Converter   U 0
    A601 Analog-to-Digital Conversion module 3-Bit DAC   U 0
    A604 Analog-to-Digital Conversion module 2-Bit DAC   U 0
    A605 Analog-to-Digital Conversion module 2-Bit DAC   U 0
    A606 Analog-to-Digital Conversion module 2-Bit DAC   U 0
    A607 Digital to Analog Converter     0
    A613 12-Bit DAC     0
    A618 10-Bit DAC single buffered     0
    A619 10-Bit DAC single buffered     0
    A620 10-Bit DAC double buffered     0
    A621 10-Bit DAC double buffered     0
    A625 LPS11 Two 12-bit DACs (2 of 2) LPSVC U 0
    A702 Analog-to-Digital Reference supplies, Ripple Peak to Peak 10mv   U 0
    A704 Analog-to-Digital Reference supplies, Ripple Peak to Peak 0,1mv VT15 U 0
    A801 10-Bit A/D Converter on one double flip chip TM module   U 0
    A804 LPS11 12-bit A/D Converter (2 of 4) LPSAD-12 U 0
    A811 10-Bit A/D Converter on one double flip chip TM module   U 0
    A814-YA Highspeed Analogue-to-Digital Converter. ADF01-B   0

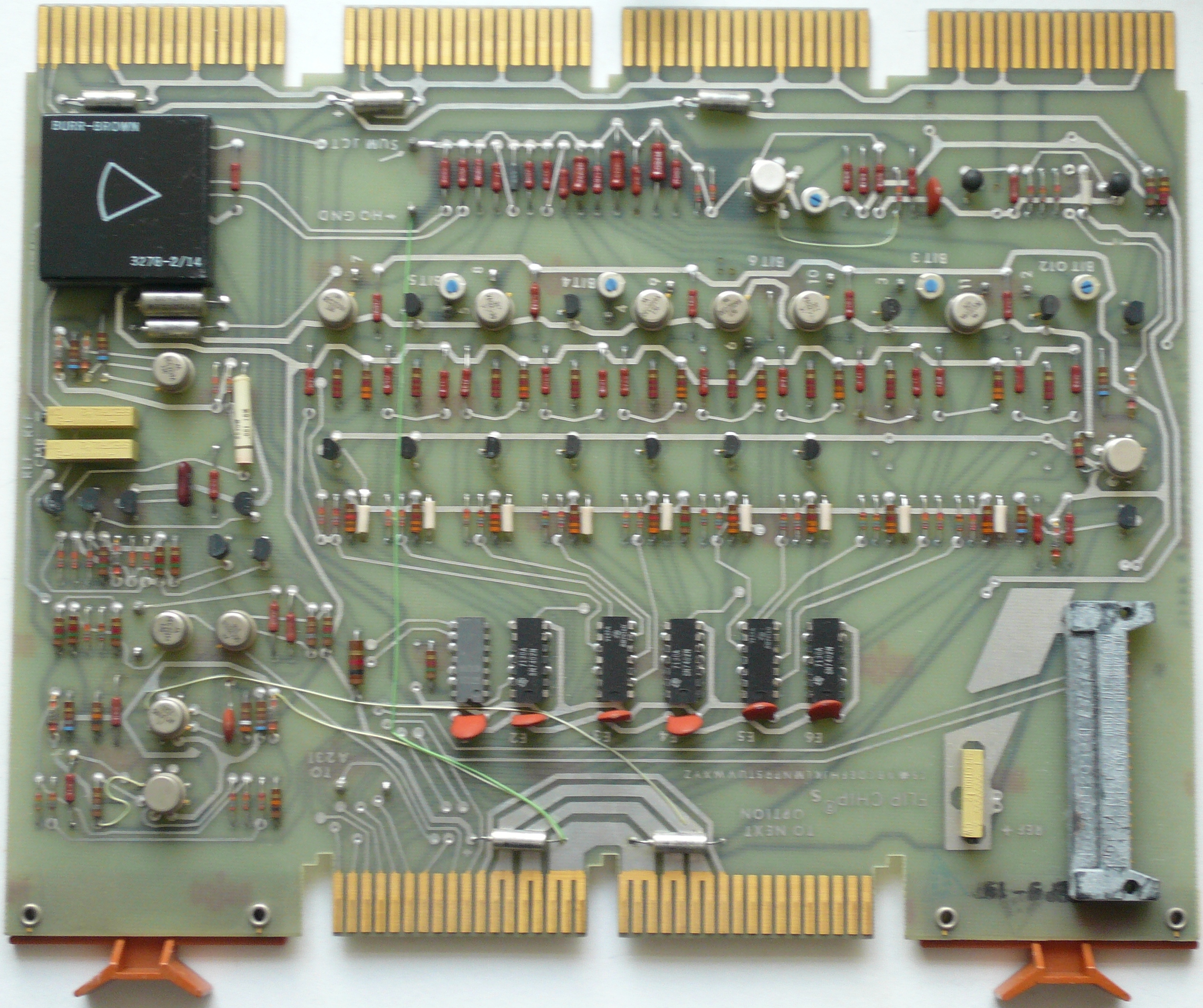

    A841 10 BitA/D Converter AD8-EA  A841C U 1 A841.JPG (2490191 Byte)
    A866 high speed 12-bit bipolar A/D converter   U 0
    A990 Amp. board for 101,102   U 0
    A992 Amp. board for 103, 105   U 0
    A1007 48 Channel Addon for ADF01-B (A814-YA) AMF01-A   0

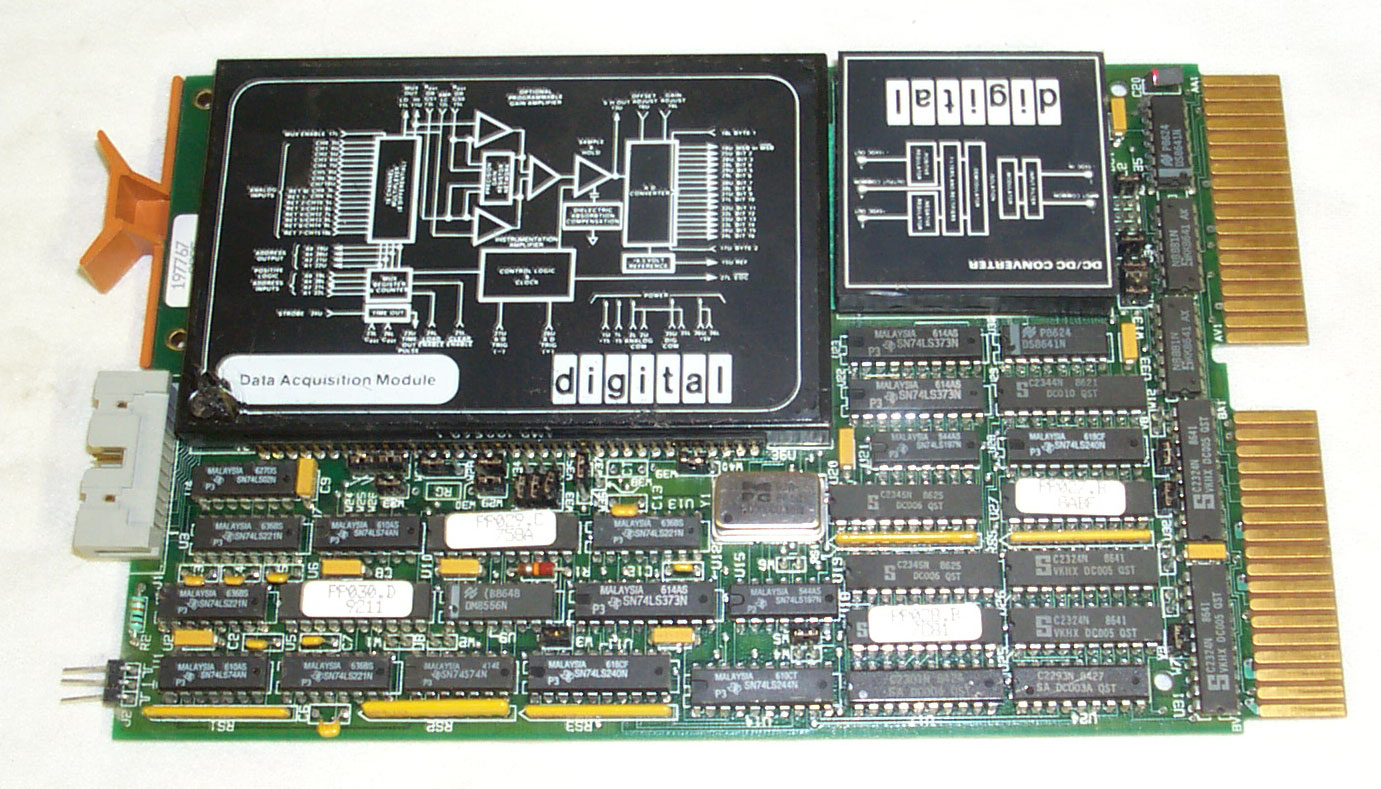

    A1008 ADV11-D Analogue-to-Digital Converter, with DMA ADV11-D Q 0 Das Bild zeigt das DIGITAL (DEC) Modul A1008 (308135 Byte)
    A1008-PA Analogue-to-Digital Converter, with DMA ADV11-S Q 0
    A1009 Digital-to-Analogue Converter, with DMA AAV11-D Q 0
    A1009-SA Digital-to-Analogue Converter, with DMA,(for BA200 series) AAV11-S Q 0
    A4002 Programmable real-time clock KWV11-C Q 0
    A6001 4-channel, 12-bit Digital-to-Analogue Converter AAV11-A Q 0
    A6002 MINC LSI-11 Bus, 4 Channel, 12-Bit, Digital-to-Analogue Converter, Quint MNCAA   0
    A6006 4-channel, 12-bit Digital-to-Analogue Converter AAV11-C Q 2 A6006.jpg (2251590 Byte)
    A6007 4 Channel Isolated 20ma Analogue output IAV11-B Q 0
    A6007-PO 4 Channel Isolated Digital-to-Analogue Converter IAV1S-B Q 0
    A6009 Highspeed Analogue-to-Digital Converter. AAF01-A   0

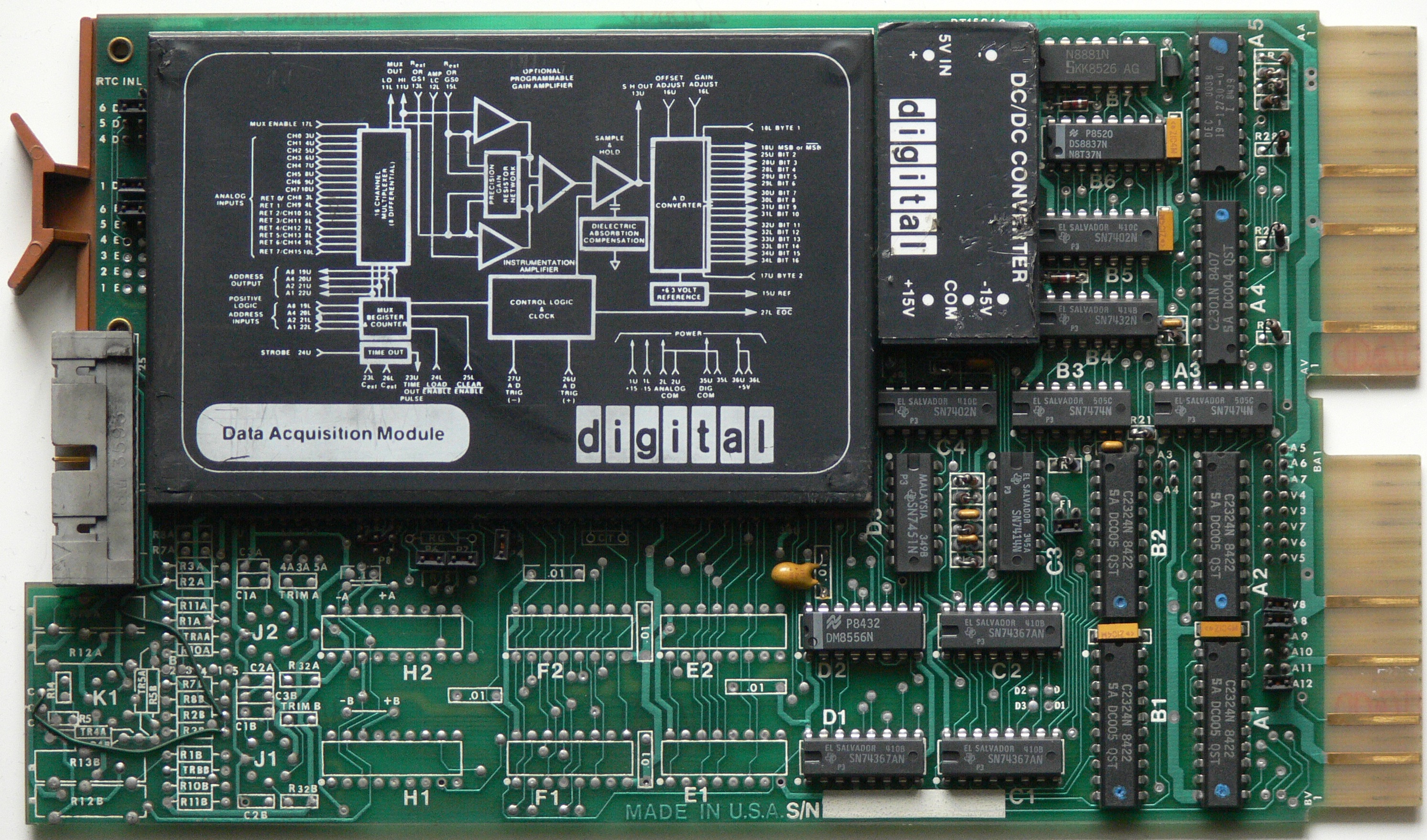

    A8000 16-channel 12-bit Analogue-to-Digital Converter ADV11-C Q 2 A8000.JPG (1956578 Byte)
