    Liste der D|I|G|I|T|A|L Module: W001-W999

    Diese Listen dienen zur Information, welche Module der Hersteller produziert hat. Die Anzahl unserer lieferbaren Module werden in der Spalte "Lagerbestand" dokumentiert.
    These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".

    For further informations see:
    1. D|I|G|I|T|A|L Control handbook 1970, FLIP CHIP,
    2. D|I|G|I|T|A|L Control handbook 1969, Positive logic edition,
    3. D|I|G|I|T|A|L logic handbook 1975-76,

    4. all informations are printed by DIGITAL EQUIPMENT CORPORATION.

    These parts are used in INDAC8, PDP-8/L, PDP-8/I, PDP-9/L, PDP-9/I, PDP-10, PD-P11, PDP-12, PDP-14 and PDP-15
    Modulname Bezeichnung System options Omnibus Unibus Lager- bestand Bild
    W002 Clamped loads 46ma   U 0
    W005 Clamped loads 91ma   U 0
    W011 flat ribbon Cable conn   U 0
    W018 Cable conn for indicator amp.    U 0
    W018-U Connector module   U 0
    W020 flat ribbon Cable conn 1,5k ohm   U 0
    W021 Cable conn for levels and pulses.    U 0
    W022 Cable conn for levels and pulses.    U 0
    W023 Cable conn for indicator amp.    U 0

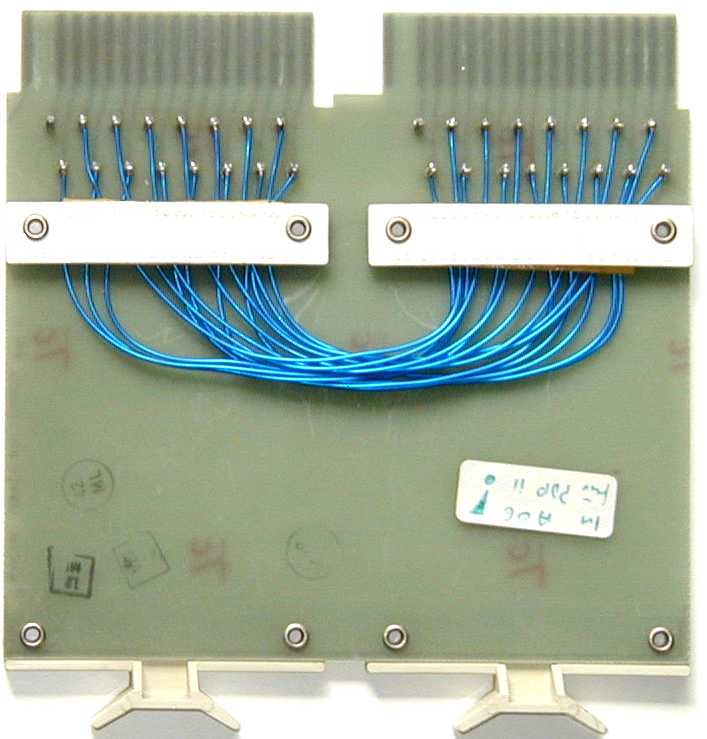

    W025 CONNECTOR BOARD (PDP11)  PDP11 U 1 W025.jpg (42048 Byte)
    W027 flat ribbon Cable conn 3k ohm   U 0
    W028 Cable conn for levels and pulses.    U 0
    W033 flat mylar cable connector   U 0
    W040 Solnoid drivers    U 0
    W042 10 Amp. Driver    U 0
    W043 Solnoid drivers    U 0
    W050 30 ma indicator driver    U 0
    W051 100 ma indicator and relay driver    U 0
    W061 relay driver    U 0
    W074 teletype connector   U 0
    W076 console connector VT05 U 0
    W080 isolated AC-DC Switch    U 0
    W103 PDP-8 Device selctor    U 0
    W108 decoding driver    U 0
    W133 DUAL DRIVER MODUL  U 0
    W400 signal conditioning module UDC-15 U 0
    W402 signal conditioning module UDC-15 U 0
    W403 signal conditioning module UDC-15 U 0
    W500 high impedenca follower    U 0

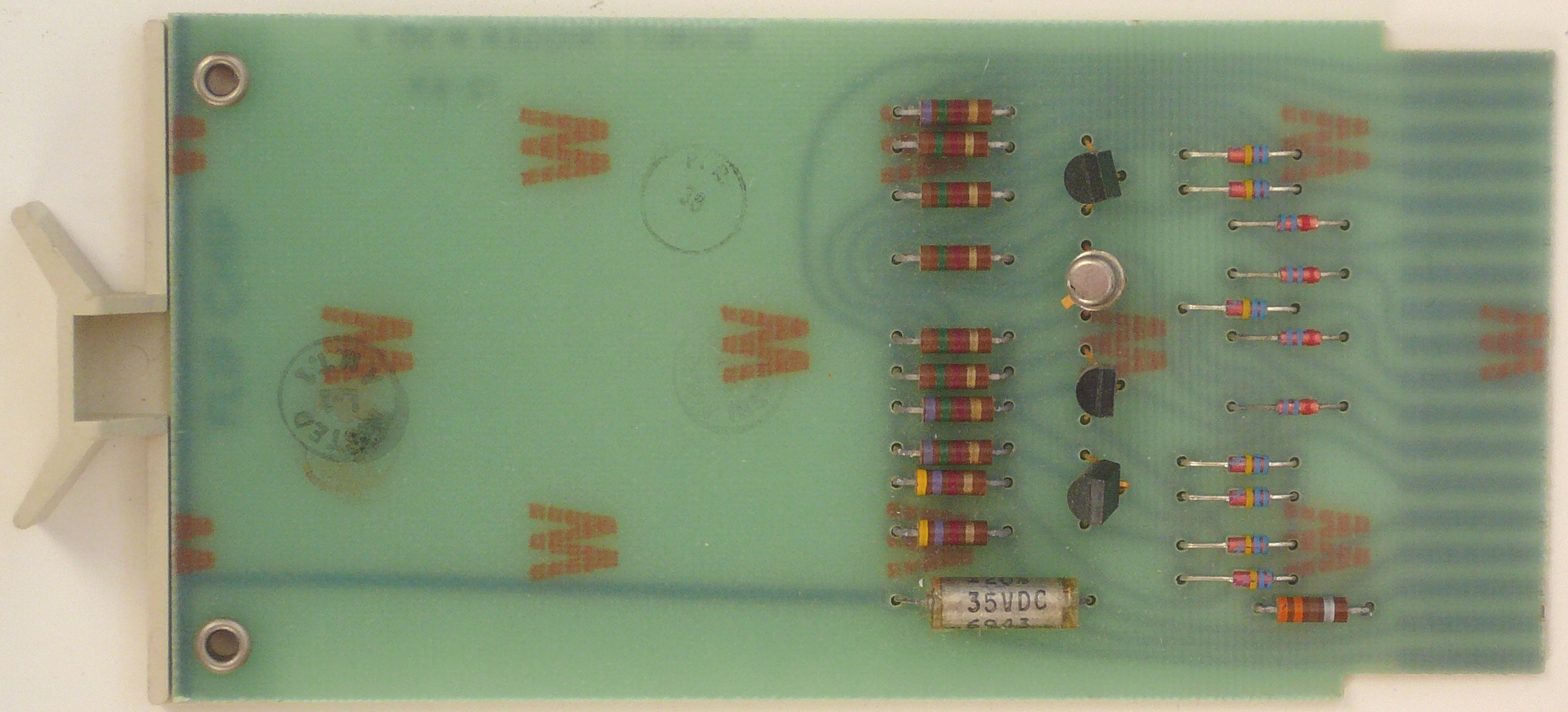

    W501 negative input converter and schmitt trigger    U 1 DEC Modul W501, negative input converter and schmitt trigger, von oben
    W502 photon-coupled trigger    U

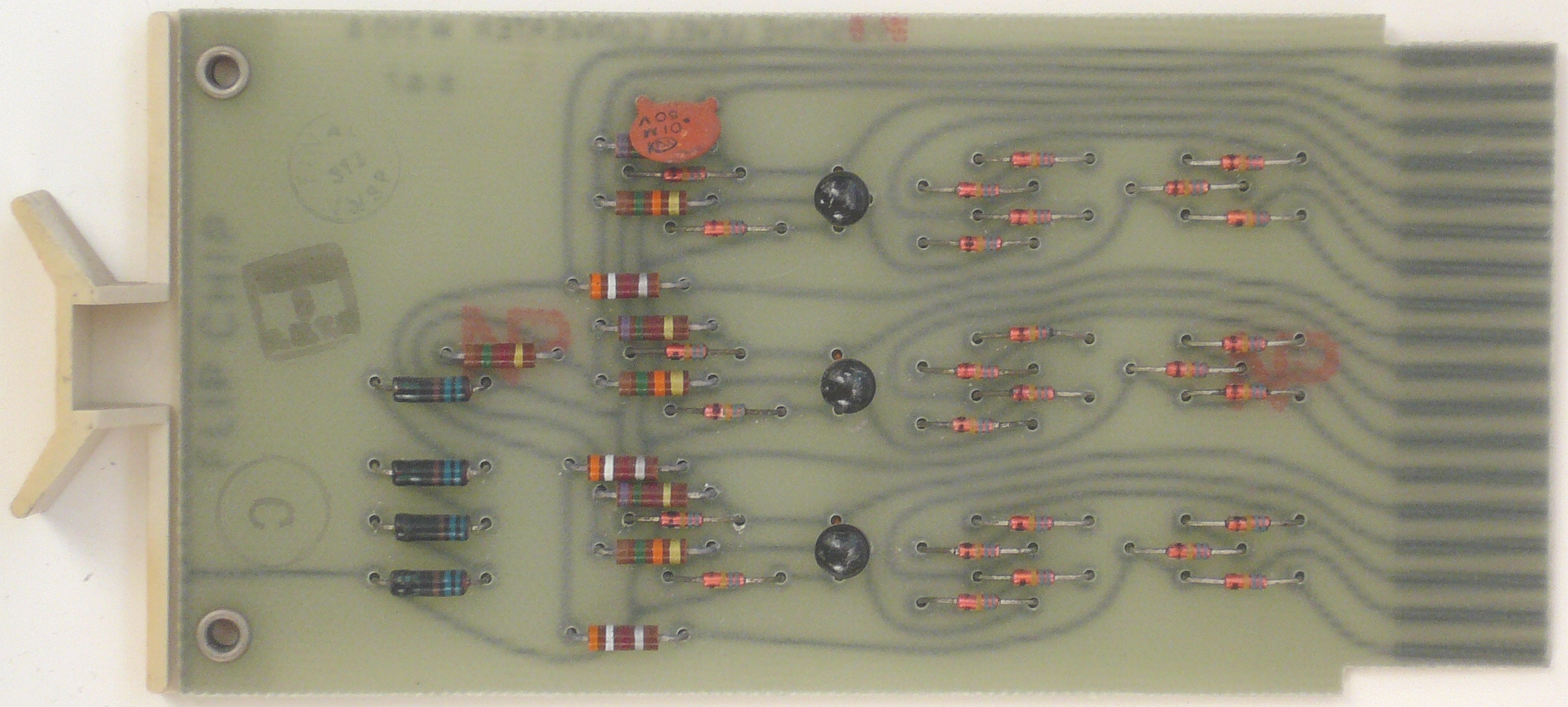

    W510 positive input converter   U 1 DEC Modul W510, positive input converter, von oben
    W511 negative input converter    U 0
    W512 positive level converter    U 0
    W520 comparator    U 0
    W532 Dual AC-Ccoupled difference amp.   U 0
    W533 Dual rectifying slicer   U 0
    W590 ibm n line to dec converter    U 0
    W600 negative output converter    U 0
    W601 positive output converter    U 0
    W602 bipolar output converter    U 0
    W603 Positive level amplifier   U 0
    W607 pulse amplifier   U 0
    W640 pulse amplifier   U 0
    W690 DEC to IBM N Line Converter    U 0
    W700 Switch filter    U 0
    W705 Power supply (+3,6V)    U 0
    W706 teletype receiver    U 0
    W707 teletype transmitter   U 0
    W707 teletype Interfacer   U 0
    W726 Switch filter  TU10 U 0
    W800 Relay   U 0
    W802 Relay multiplexer   U 0
    W900 module extender board, 72pin   U 0
    W930 Single-height blank module   U 0

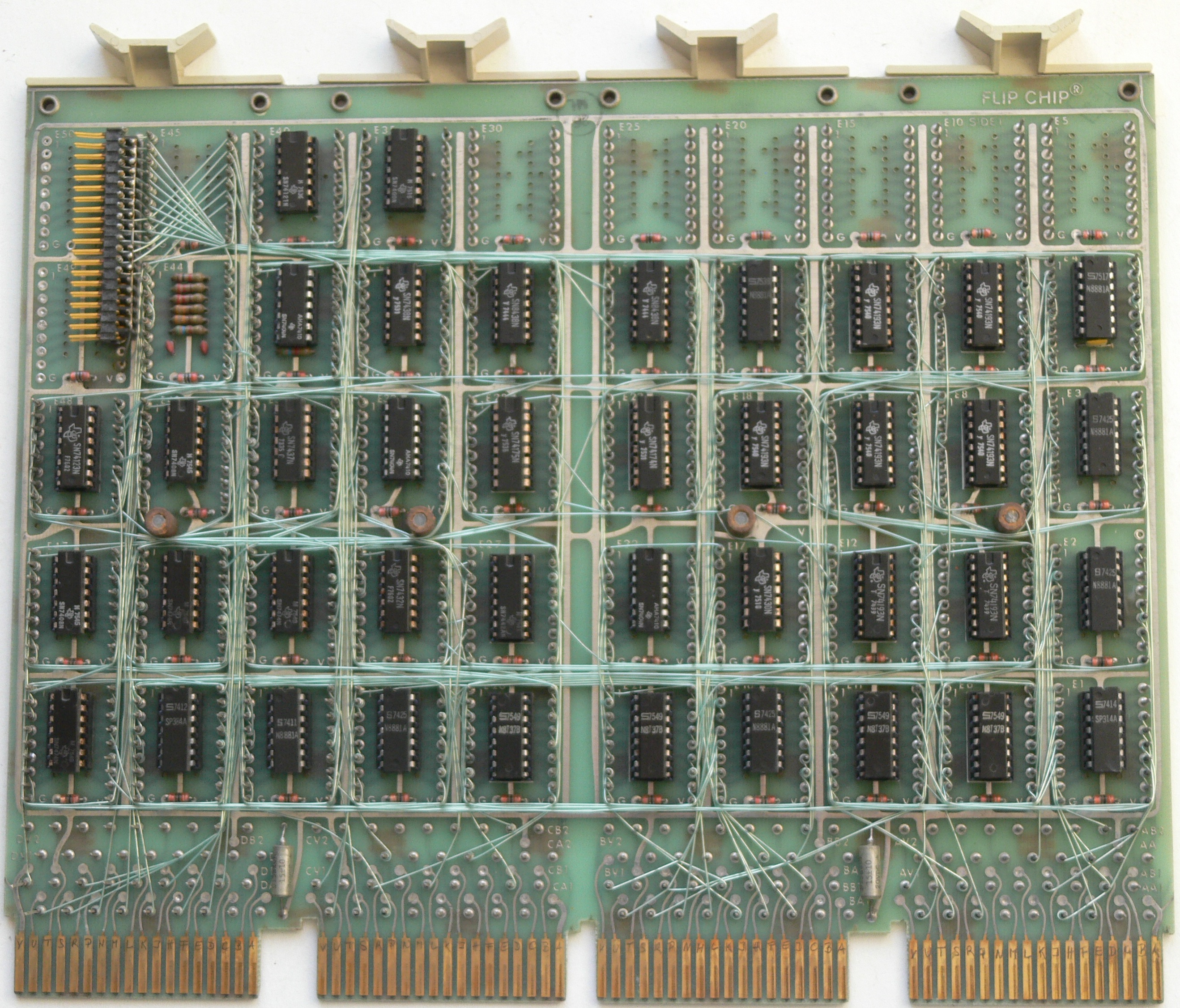

    W940 Quad-height wire wrappable module, space for 50 14/16-pin ICs, UNIBUS   U 1 W940.JPG (2012699 Byte)
    W941 Dual-height wire wrappable module, space for 25 14/16-pin ICs, UNIBUS   U 0
    W942 W940 with IC sockets, UNIBUS   U 0
    W943 W941 with IC sockets, UNIBUS   U 0
    W950 Quad-height wire wrappable module, UNIBUS   U 0
    W951 Dual-height wire wrappable module, UNIBUS   U 0
    W952 W950 with IC sockets, UNIBUS   U 0
    W953 W951 with IC sockets, UNIBUS   U 0
    W960 MSI module board, Single-height blank module with space for 2 14/16-pin ICs or 1 24-pin IC   U 0
    W964 Universal  terminator board, Blank   U 0

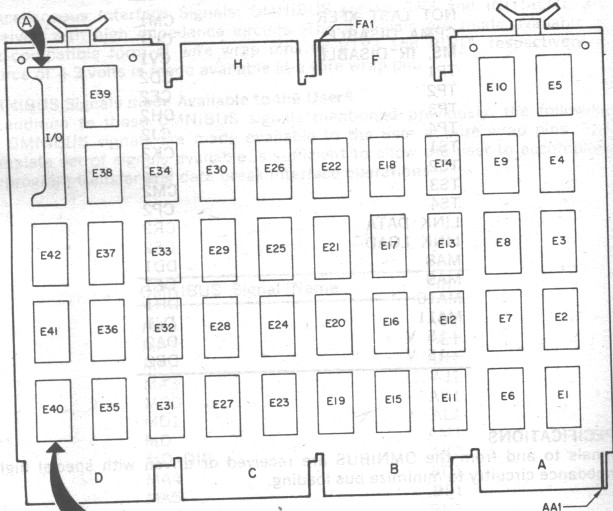

    W966 wire wrappable module board PDP-8/E O 0

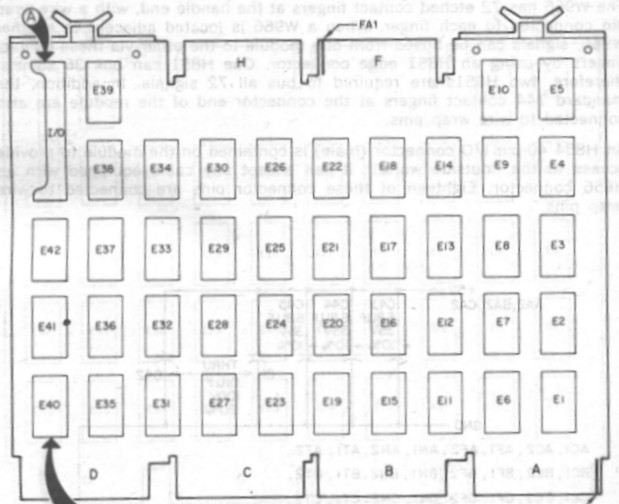

    W967 wire wrappable module board PDP-8/E O 0
    W968 Quad-height blank module with space for 72 14/16-pin ICs, UNIBUS   U 0
    W969 Quad-height blank module with space for 36 14/16-pin ICs, UNIBUS U 0
    W970 Single-height blank module U 0
    W971 Dual-height blank module U 0
    W972 Single-height blank module, copper clad U 0
    W973 Dual-height blank module, copper clad U 0
    W974 Single-height blank module, perforated U 0
    W975 Single-height blank module, perforated U 0
    W979 Dual-height blank module with space for 18 14/16-pin ICs, UNIBUS U 0
    W980  module extender, 18pin, UNIBUS U 0

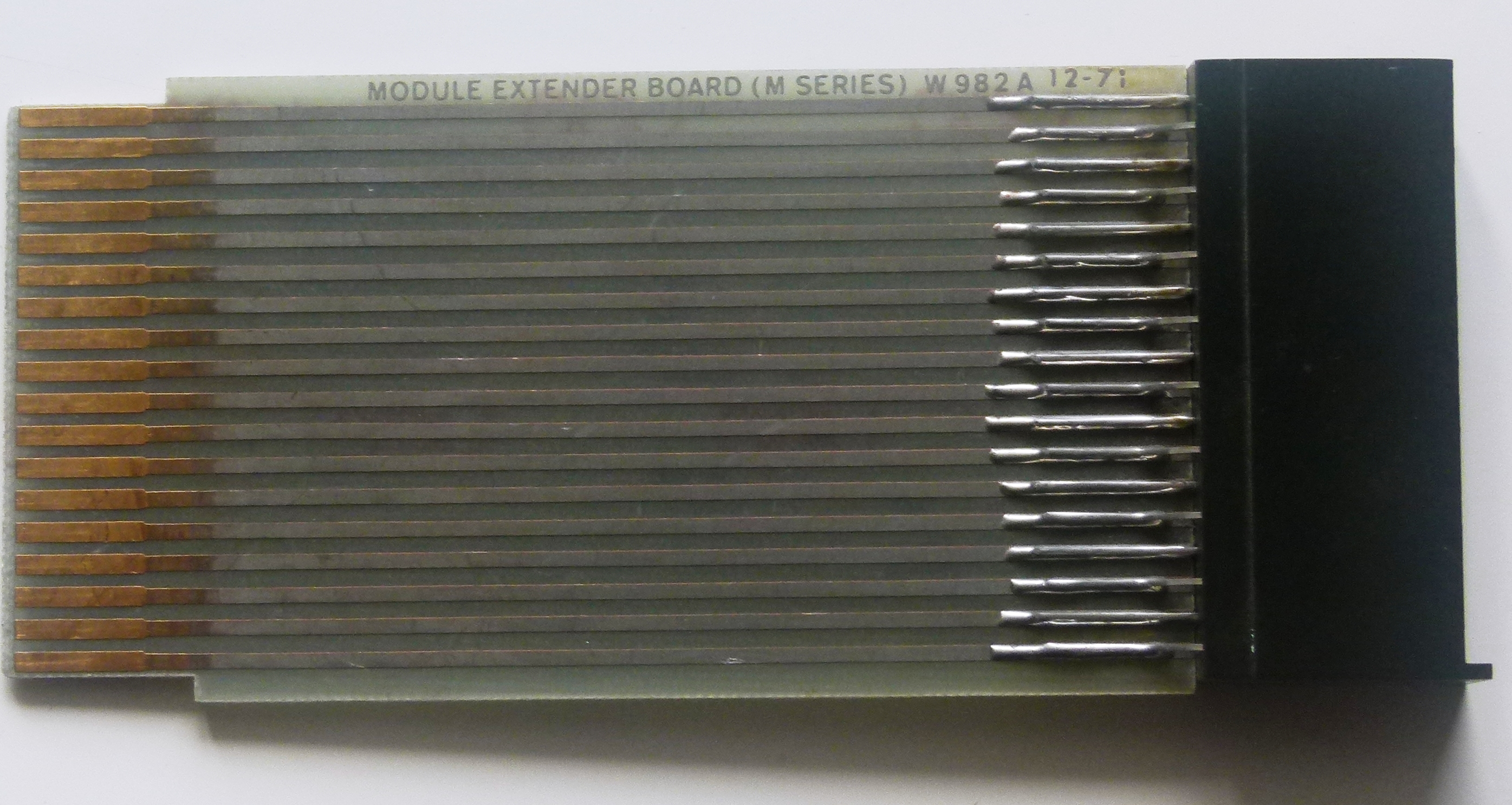

    W982 Single-height module extender, 36pin UNIBUS U 0
    W983 double-height module extender, 72pin UNIBUS U 0
    W984 Dual-height module extender, UNIBUS U 0
    W985 Adapter   0
    W987 Quad-height module extender, UNIBUS U 0

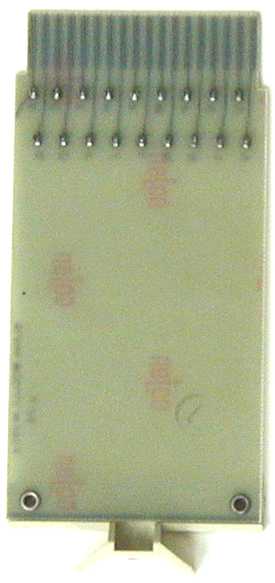

    W990 Single-height blank module, perforated U 1  ? DEC Modul W990, Single-height blank module, perforated, UNIBUS (10299 Byte)
    W991 Dual-height bare board, split lug terminals U 0
    W992 Single-height blank module, copper clad, UNIBUS U 0
    W993 Dual-height blank module, copper clad, UNIBUS U 0
    W994 perforated board U 0
    W995 perforated board U 0
    W998 Single-height blank module, perforated, UNIBUS U 0
    W999 Dual-height blank module, perforated, UNIBUS U 0
    W9042 EXTENDER BOARD ASSY (PDP11/34)   1 FP11 DEC Modul W9042, EXTENDER BOARD ASSY (PDP11/34) (60331 Byte)

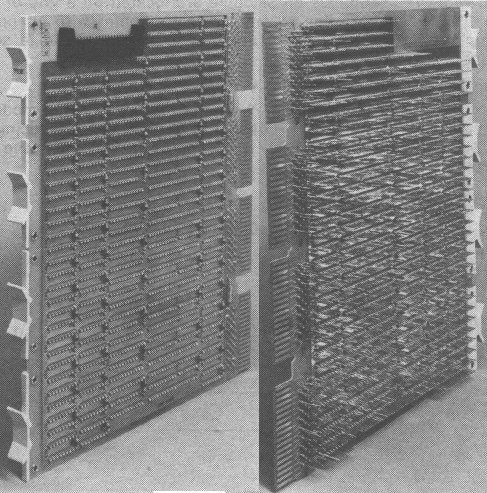

    W9301 Quad-height hi-density wire wrappable module, UNIBUS U 0

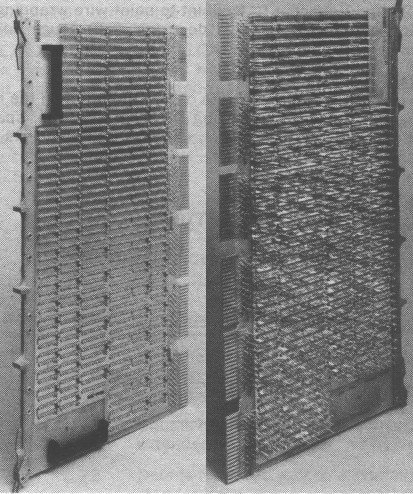

    W9302 Hex-height hi-density wire wrappable module, UNIBUS U 0
    W9511 Quad-height wire wrap module, no sockets, Q-BUS Q 0
    W9512 Dual-height wire wrap module, no sockets, Q-BUS Q 0
    W9513 W9511 with 58 pre-mounted DIP sockets, Q-BUS Q 0
    W9514 W9511 with 58 pre-mounted DIP sockets, Q-BUS Q 0
    W9515 W9512 with 25 pre-mounted DIP sockets, Q-BUS Q 0
    W9720 Single-height blank module, copper clad U 0
    W9721 Dual-height blank module, copper clad U 0
    W9722 Quad-height blank module, copper clad U 0
