    Liste der D|I|G|I|T|A|L (DEC) Module: M7700-M7999:

    Diese Listen dienen zur Information, welche Module der Hersteller produziert hat. Die Anzahl unserer lieferbaren Module werden in der Spalte "Lagerbestand" dokumentiert.
    These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".

    For further informations see:
    1. D|I|G|I|T|A|L Control handbook 1970, FLIP CHIP,
    2. D|I|G|I|T|A|L Control handbook 1969, Positive logic edition,
    3. D|I|G|I|T|A|L logic handbook 1975-76,

    4. all informations are printed by DIGITAL EQUIPMENT CORPORATION.

    These parts are used in INDAC8, PDP-8/L, PDP-8/I, PDP-9/L, PDP-9/I, PDP-10, PD-P11, PDP-12, PDP-14 and PDP-15
    Modulname Bezeichnung System options QBUS Unibus Lagerbestand Bild
    M7700 DEC PAK Index and Sector RK05   3 DEC module DEC PAK Index and Sector M7700
    M7701 DEC PAK CONTROL & INTERLOCK RK05   2 DEC module PAK CONTROL & INTERLOCK M7701
    M7702 DEC PAK Cylinder Adress and difference (for RK05) RK05   5 DEC module PAK Cylinder Adress and difference M7702
    M7705 RK06 MODULE Drive control logic RK06/07   0
    M7706 RK06 MODULE Interface & Timing RK06/07   0
    M7707 RK06 MODULE Servo control RK06   0
    M7708 RK06 MODULE Track position detector/PL0 RK06   0
    M7726 RX01 CONTROLLER RX01   0
    M7727 RX01 R/W CONTROL  RX01   0
    M7728-YC M7728 ETCH REV L AND LATER     0
    M7729 RK06 MODULE Servo analog RK06   0
    M7730 RK06 MODULE Dual port logic RK06/07   0
    M7735 LA36 TOF OPTION, SINGLE 8.5 LA36   0

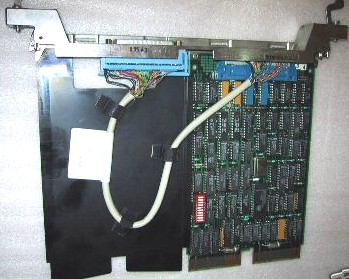

    M7740 KLESI-SA, Q-BUS to KLESI Interface KLESI   0 DEC module KLESI-SA, Q-BUS to KLESI Interface M7740-SA

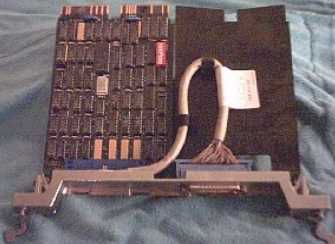

    M7740-PA KLESI-SA, W/S BOX BULKHEAD ASSY KLESI   0 DEC module KLESI-SA, W/S BOX BULKHEAD ASSY m7740-pa
    M7741 TIMING REGISTER CARD     0
    M7744-YC M7744 WITH FCC COMPLIANCE,HEX      0
    M7745-YA M7745 WITH FCC COMPLIANCE,HEX      0
    M7761 TU60 CASSETTE SERVO & READ TU60   0
    M7762 RL11, RL01 Controller RL11 U 0 DEC module RL11, RL01 Controller M7762
    M7769 KFQSA Q-BUS DSSI interface removable term.  KFQSA Q 1 DEC module KFQSA Q-BUS DSSI interface removable term. M7769 (193167 Byte)
    M7773 ASYNCHRONOUS LOGIC-RP04     0
    M7774 REGISTER LOGIC-RP04     0
    M7787 INTERFACE Controller     0
    M7789 INTERFACE RECEIVER     0
    M7792 PORT MODULE DEUNA U 0
    M7793 LINK MODULE DEUNA U 0
    M7800 ASYNCHRONOUS LINE INTERFACE & RCVR,KL1 DLV11-M U 2 M7800.jpg (1959299 Byte)
    M7800-YA M7800 WITHOUT EIA CHIPS  DLV11-M U 2 M7800YA.JPG (3106165 Byte)
    M7807 EIA LEVEL CONVERT     0 DEC module M7807 EIA LEVEL CONVERT (15194 Byte)

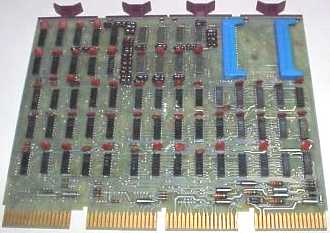

    M7808 ???     0 DEC module M7808 (14084 Byte)
    M7810 Punch reader PC11 interface PC11 U 1 DEC module Punch reader PC11 interface M7810 (84360 Byte)
    M7814 20MA DATA MUX DZ11 U 0 DEC module M7814 20MA DATA MUX for DZ11 (84360 Byte)
    M7819 8-LINE DBL BUF ASYNC EIA DZ11 DZ11 U 0 DEC module M7819 8-LINE DBL BUF ASYNC EIA DZ11 (236132 Byte)
    M7820 Interrupt control DR11/TM11 U 0

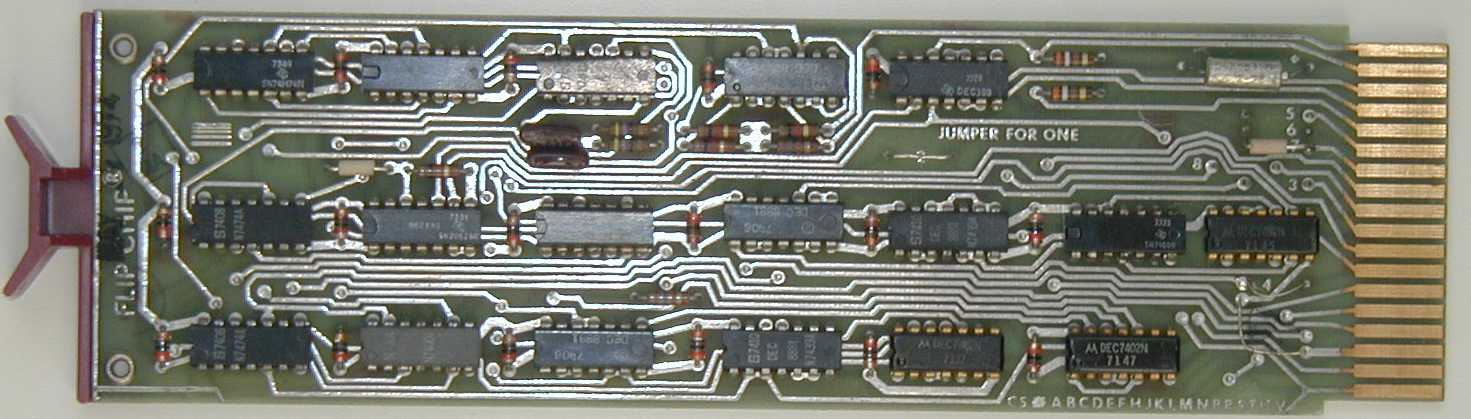

    M7821 Interface control, FAST M7820 DR11/TM11 U 0 DEC module M7821, Interface control, FAST M7820 (56431 Byte)
    M7822 PGM sync Interface UNIBUS DU11 U 2 DEC module M7822, PGM sync Interface UNIBUS (146963 Byte)
    M7823 PDP11 WATCH DOG TIMER   U 0
    M7836 DV11 ALU & TRANSFER BUS DV11 U 0
    M7837 DV11 UNIBUS DATA & NPR CONT DV11 U 0
    M7838 DV11 ROM RAM & BRANCH DV11 U 0
    M7839 SYNC MUX LINE CARD    U 0
    M7843 DIGITAL I/O DR11-K Paralell-Interface DR11-K U 0
    M7845 RX11 UNIBUS INTERFACE RX11 U 0 DEC PDP11 module M7845, RX11 UNIBUS INTERFACE (87886 Byte)
    M7846 RX01 UNIBUS INTERFACE RX01 U 0

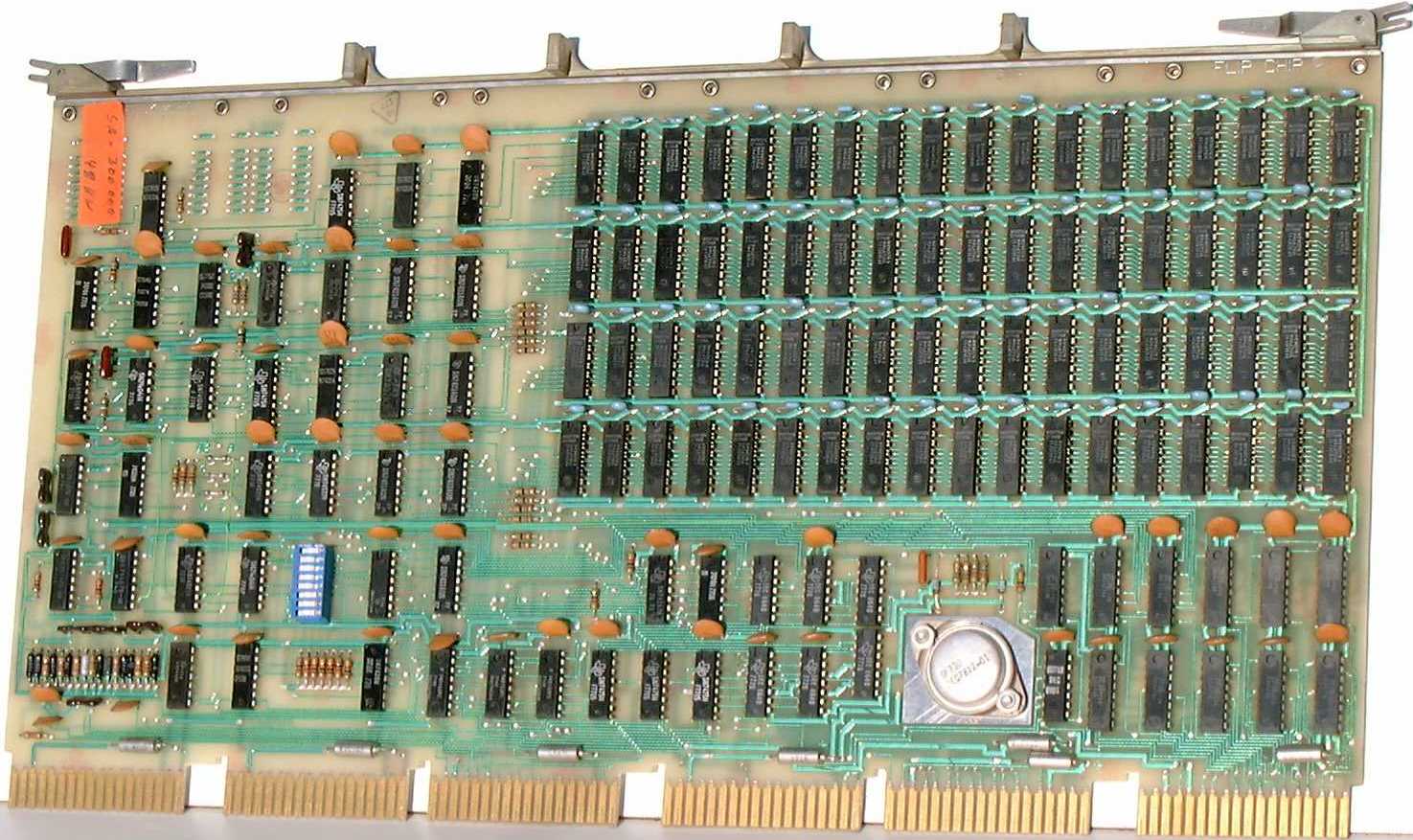

    M7847 MS11 MOS-memory UNIBUS INTERFACE for PDP11/34 Hex-width 16K x 18 MOS Memory MS11 U 1 DEC PDP11 module M7847MS11, MOS-memory UNIBUS INTERFACE for PDP11/34 (189975 Byte)

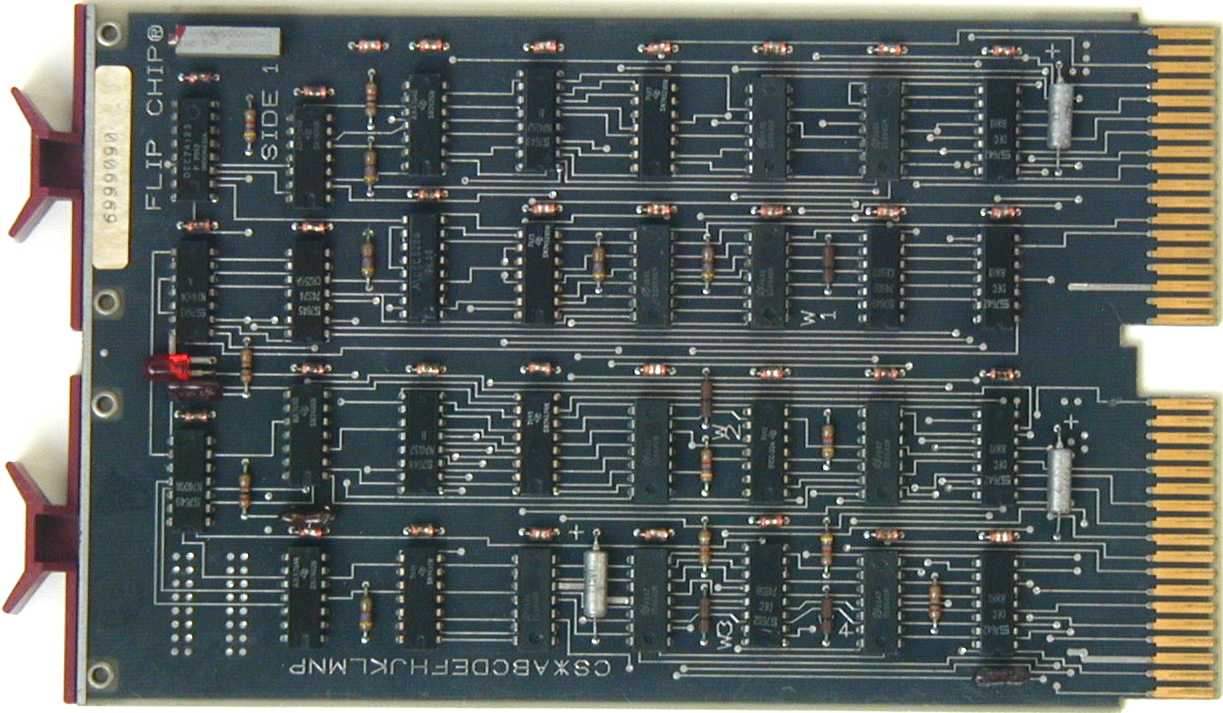

    M7850 Parity Memory Modul for PDP11/34 11/34 U 0 DEC PDP11 module M7850, Parity Memory Modul for PDP11/34 (118474 Byte)
    M7856 DL11-W SLU/RTC OPT QUAD, single seriell DL11-WB U 3 DEC PDP11 module M7856, DL11-W SLU/RTC OPT QUAD, single seriell (105661 Byte)
    M7859 CONSOLE PROGRAMMER (Interfacemodul) KY11-LB U 0 DEC PDP11 module m7859, CONSOLE PROGRAMMER (Interfacemodul) UNIBUS, von oben"
    M7860 UNIBUS DR11-Interface DR11 U 1 DEC PDP11 module M7860, UNIBUS DR11-Interface
    M7866       1
    M7867 SYNC MODEM DUP11-DA DUP11 U 0
    M7872 U WORD for PDP11/60 PDP11/60 U 0
    M7873 DECODE for PDP11/60 PDP11/60 U 0
    M7874 DATA PATH for PDP11/60 PDP11/60 U 0
    M7875 KT/CACHE for PDP11/60 PDP11/60 U 0
    M7876 TIMING for PDP11/60 PDP11/60 U 0
    M7877 STATUS for PDP11/60 PDP11/60 U 0
    M7878 FNUA for PDP11/60 PDP11/60 U 0
    M7879 EXPONENT for PDP11/60 PDP11/60 U 0
    M7880 MULNET for PDP11/60 PDP11/60 U 0
    M7881 FALU for PDP11/60 PDP11/60 U 0
    M7891 128k X 18 MOS Memory PDP/11 U 0 DEC PDP11 module M7891, UNIBUS 128k X 18 MOS Memory
    M7893-YB DRS11, 48 OPEN DRS11 U 0
    M7899 DZ32 8-LINE ASYNC MOD. CONTRL DZ32 U 0
    M7900 UNIBUS INTERFACE RK611 U 0
    M7901 RK611 REGISTERS, HEX RK611 U 0
    M7902 CONTROL Board for RK611 RK611 U 0
    M7903 RK611 DATA, HEX RK611 U 0
    M7904 Drive interface for RK611 RK611 U 0
    M7906 SERVO ANALOG RK07 U 0
    M7907 SERVO CONTROL RK07 U 0
    M7908 TRACK POSITIONING OSCILL RK07 U 0

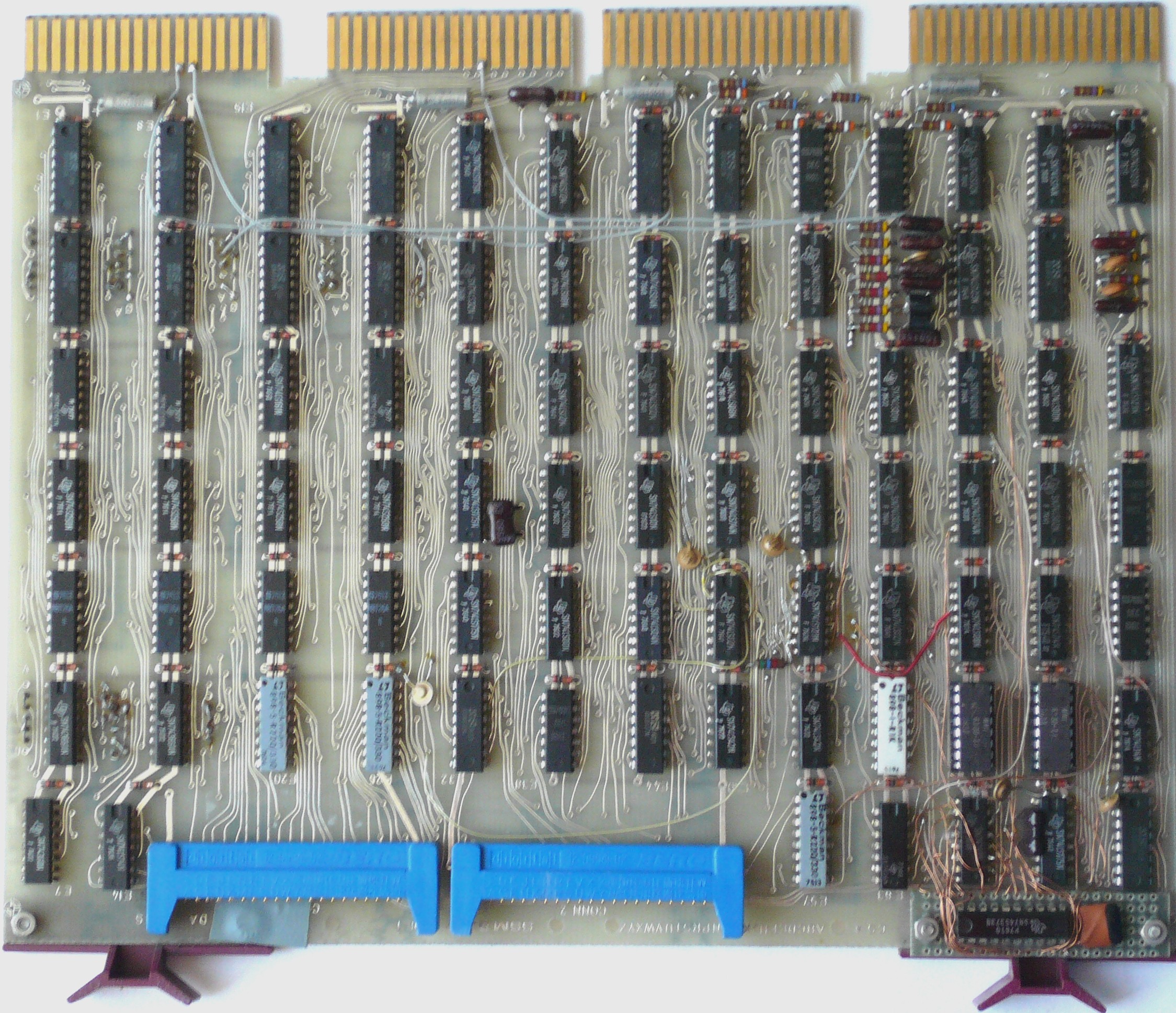

    M7919 DA11 MS Interfacemodul ? U 1 DEC PDP11 module M7919, UNIBUS
    M7930 M793 + M105 + M7921   U 0
    M7940 SERIAL LINE 11V03   U 1 DEC PDP11 module M7940, UNIBUS, SERIAL LINE 11V03, von oben
    M7941 16 BIT PARALLEL LINE UNIT 11V     5 DEC PDP11 module M7941, UNIBUS, 16 BIT PARALLEL LINE UNIT 11V, von oben
    M7942 4K 16 BIT PROM 11V03     0
    M7944 4K 16BIT RAM 11V03 KC780 U 2 DEC PDP11 module M7944, UNIBUS, 4K 16BIT RAM 11V03, von oben
    M7946 RXV11 LSI11 Interface KC780 U 1 DEC PDP11 module M7946, UNIBUS, RXV11 LSI11 Interface, von oben
    M7950 DMA PT MOD DRV11-B   1 DEC PDP11 module M7950, UNIBUS, DMA PT MOD, von oben
    M7954 INTERFACE LSI11 BUS TO INST.      0
    M7955-BD LSI MOS-Memory MSV11-C Q 1 DEC PDP11 module M7955, UNIBUS, LSI MOS-Memory, MSV11-C, von oben

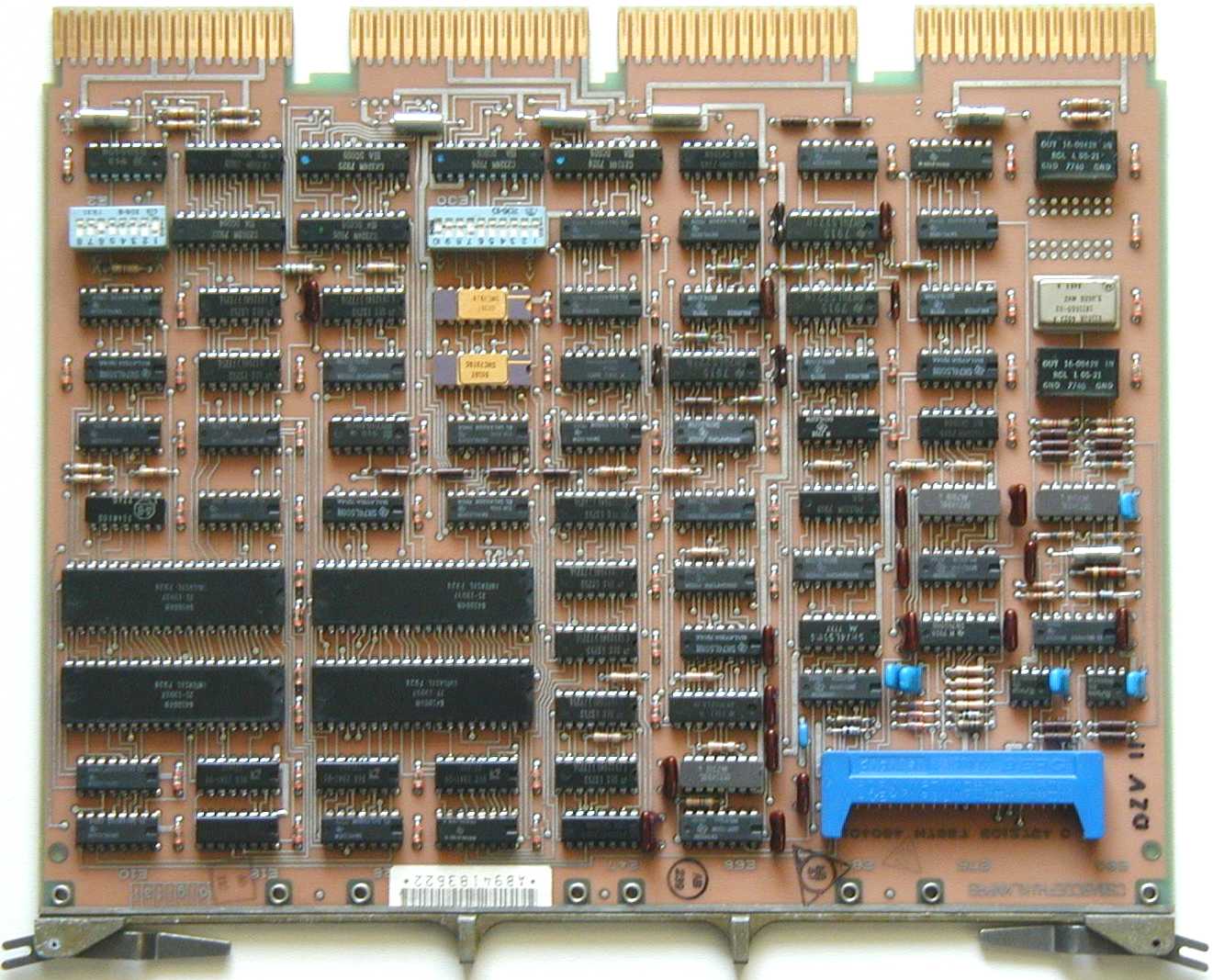

    M7957 4 LINE DBL BUF ASYNC MUX EIA DZV11 Q 1 DEC PDP11 module M7957, QBUS, 4 LINE DBL BUF ASYNC MUX EIA, DZV11
    M7972 UNIBUS, U word 11/60  U 0
    M7973 UNIBUS, Decode 11/60 U 0
    M7974 UNIBUS, DATA Path 11/60  U 0
    M7975 UNIBUS, KT/Cache 11/60 U 0
    M7976 UNIBUS, Timing ,VT30-C scratch pad and character store VT30-C U 0
    M7977 UNIBUS, VT30-D scratch pad and character store VT30-D U 0
    M7978 UNIBUS, VT30-C, -D color control VT30-C U 0
    M7979 UNIBUS, VT30-C, -D unibus decode VT30-C U 0
    M7980 UNIBUS, AC/DC lo monitor, 8-pin mate-n-lock output DD11 U 0
    M7982 UNIBUS TO SERIAL Serial tape control module TS11 U 0
    M7983 UNIBUS, MF11-S through MF11-K control module  MF11 U 0
    M7984 UNIBUS MS11-K Memory-Array MS11 U 0
    M7984-EA UNIBUS Either M7984-EB, -EC or -ED MS11-KE U 0
    M7984-EB UNIBUS 16-Kword 39-bit MOS RAM array MS11-KE U 0
    M7984-EC UNIBUS 16-Kword 39-bit MOS RAM array MS11-KE U 0
    M7984-ED UNIBUS 16-Kword 39-bit MOS RAM array(*Note: M7984-xx fit into the 11/70's MK11 memory box. MS11-KD is 32-Kword and MS11-KCis 128-Kword.) MS11-KE U 0
    M7985 UNIBUS IEC bus interface IEC11-A U 0
    M7990 UNIBUS LAB11 color control LAB11 U 0
    M7991 UNIBUS PCL11-B transmitter interface PCL11-B U 0
    M7992 UNIBUS PCL11-B transmitter unibus control PCL11-B U 0
    M7993 UNIBUS PCL11-B transmitter registers PCL11-B U 0
    M7994 UNIBUS PCL11-B transmitter bus logic and drivers PCL11-B U 0
    M7995 UNIBUS PCL11-B receiver registers PCL11-B U 0
    M7996 UNIBUS PCL11-B receiver unibus control PCL11-B U 0
    M7997 UNIBUS PCL11-B receiver interface PCL11-B U 0
    M7998 UNIBUS differential transceiver (replaced by M8003) PCL11-A U 0
