    Liste der D|I|G|I|T|A|L (DEC) Module: M4000-M6999:

    Diese Listen dienen zur Information, welche Module der Hersteller produziert hat. Die Anzahl unserer lieferbaren Module werden in der Spalte "Lagerbestand" dokumentiert.
    These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".
    Modulname Bezeichnung System options QBUS Unibus Lagerbestand Bild
    M4000 16-bit programmable clock CE11,CEV11   0
    M4001  Programmable Real-Time Clock KWV11-C Q 0

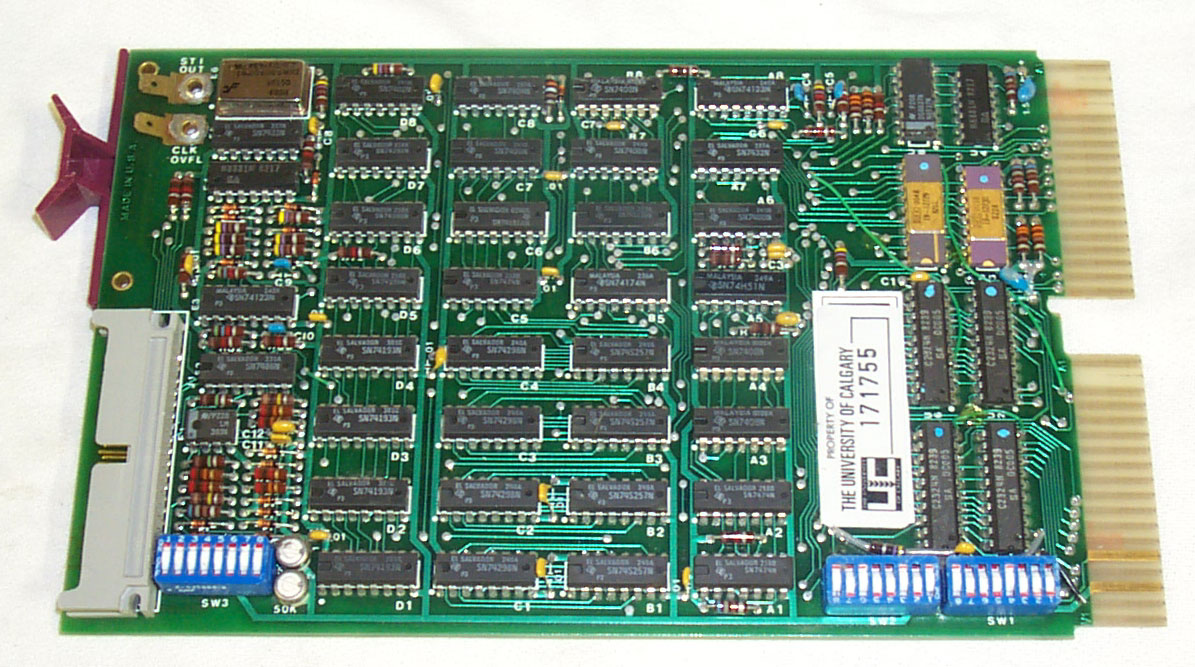

    M4002-PA  PROGRAMMABLE RT CLOCK KWV11SA  KWV11-S Q 1
    M4003-AA  Realtime clock for Qbus 32-bit counter, 10MHz   Q 0
    M4003-PA  Realtime clock for Qbus 32-bit counter, 10MHz   Q 0
    M4050  Crystal controlled clock    U 0
    M4540 M454 W MORE FREQ AVILABLE  DC11, DH11 U 0
    5000...
    M5001 8 channel optically isolated inputs CIS11-B Q 0
    M5001-YA M5001 with 24V voltage sense inputs CIS11-B Q 0
    M5001-YB M5001 with 24V contact sense inputs CIS11-B Q 0
    M5001-YC M5001 with customized inputs CIS11-B Q 0
    M5010 32-bit non-isolated dc input module (IP11), I/O Daisy chain bus, 32-bit 55V (6V threshold), Non-isolated DC sense IP11 U 0
    M5011 16-bit non-isolated dc input module (IP11), I/O Daisy chain bus, 32-bit 55V (6V threshold), Non-isolated change of state interrupt IP11 U 0
    M5012 16-bit isolated dc input module (IP11), I/O Daisy chain,Unibus Modul, 16-bit, 55V (6V threshold), Isolated DC sense IP11 U 0
    M5012-YA M5012 with TTL compatible inputs (IP11) IP11 U 0
    M5013 8-bit isolated ac input module (IP11), I/O daisy chain bus, 8-bit, 120VAC,(46-75V threshold) isolated AC sense, one bit interrupts IP11 U 0
    M5014 Dual input counter, 16-bit (IP11), I/O daisy chain bus, dual 16-bit input counter IP11 U 0
    M5015-YF CSC11 CSC11   0
    M5015-YM M5015-YF with flags inhibited CSC11   0
    M5016 Quad input counter/prescalar, 8-bit (IP11), I/O daisy chain bus, quad 8-bit counter/prescaler IP11   0
    M5017 Signal receiver (5V contact sense) CE11,CEV11   0
    M5017-YC Signal receiver (12V contact sense) CE11,CEV11   0
    M5019 Input function module (SSMU) CE11,CEV11   0
    M5020-YA 32 bit OCI with 600V isolation and filter 3ms, 5V input CSC11   0
    M5020-YB 32 bit OCI with 600V isolation and filter 3ms, 12 5V input CSC11   0
    M5020-YC 32 bit OCI with 600V isolation and filter 3ms, 48V input CSC11   0
    M5020-YD 32 bit OCI with 600V isolation and filter 3ms, 129V input CSC11   0
    M5020-YF 36 bit OCI with 600V isolation and filter 3ms, 5V input CSC11   0
    M5020-YG 36 bit OCI with 600V isolation and filter 3ms, 125V input CSC11   0
    M5020-YH 36 bit OCI with 600V isolation and filter 3ms, 48V input CSC11   0
    M5020-YJ 36 bit OCI with 600V isolation and filter 3ms, 129V input CSC11   0
    M5020-YN 32 bit OCI input 15VDC, 2ms delay, common V CSC11   0
    M5020-YP 32 bit OCI input, 5VDC, 4.5ms delay CSC11   0
    M5020-YR M5020-YE with slow flag response CSC11   0
    M5026 16-bit opto-isolated input module IDV1S-A   0
    M5026-P0 16-bit opto-isolated input module with S-box handle IDV1S-A   0
    M5027 16-bit opto-isolated input module KMS11   0
    M5028 8 channel RS232 to RS422 converter DRU11-C   0
    M5031 16-channel isolated dc interrupt module, 16-bit(IP11) IP11 U 0
    M5864 Optic isolator input module UNIBUS  PDP8 U 0
    M5900 16-channel TTL receiver, UNIBUS  DJ11 U 0
    M5901 16-channel EIA transmitter, UNIBUS  DJ11 U 0
    M5902 16-channel full duplex TTY transceiver  DJ11 U 0
    M5903 MASSBUS terminal transceiver RH11 U 0

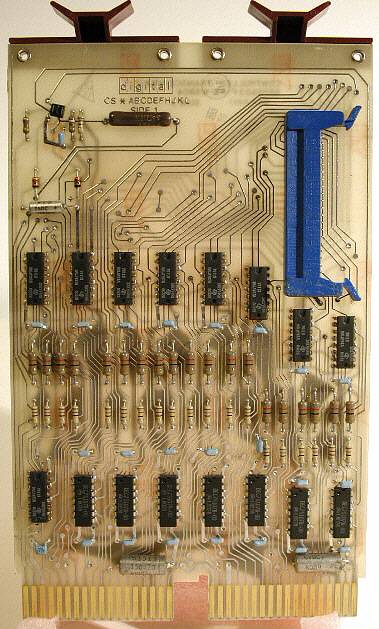

    M5904 MASS BUS CONTROL TRANSCEIVER, PDP-11  RH11 U 0 MASS BUS CONTROL TRANSCEIVER DIGITAL M5904, for PDP11 UNIBUS
    M5906 16-channel EIA-TTL, TTL-EIA, priority sockets,2 H854 DJ11 U 0
    M5906-YA M5906 modified to accept X1 baud clock rate DJ11 U 0
    M5912-YA Private wire integral modem, 1 Megabaud, DF11 pins DFS11-MA U 0
    M5912-YB Private wire integral modem, 500 Kbaud, DF11 pins DFS11-MB U 0
    M5912-YC Private wire integral modem, 240 Kbaud, DF11 pins DFS11-MC U 0
    M5912-YD Private wire integral modem, 56 Kbaud, DF11 pins DFS11-MD U 0
    M5912-YE Private wire integral modem, 100 Kbaud, DF11 pins DFS11-ME U 0
    M5915 Digital input to MINC, 16 lines, Quint height  MNCDI U 0
    M5916 24 Differential transmitters and 24 Differential Receivers, Quad DR11 U 0
    M5916-YA Differential adapter DR11-L U 0
    M5916-YB Differential adapter DMA01-A U 0
    M5917 Differential drive for card readers, 17 in, 1 out CRS11-LL U 0
    M5922 MASS BUS TRANSCEIVER, PORT A  RM02 U 0
    M5923 MASS BUS TRANSCEIVER, PORT B RM02 U 0
    M5924 Fiber optic link DF11-L U 0
    M5925 6 differential receivers, 10 differential drivers LPC01-V U 0
    M5926 Add-on for TTL 20mA loop conversion DSZ11-B U 0
    M5927 TTL to differential transceiver (Like M7230 except all signals from 3 854) DAV11 U 0
    M5927-YA DR11-C Compatible Differential line driver DR11-C U 0
    M5928 DMS11-F, Modem level Converter, TTL/RS423 DMS11-F U 0
    M5929 Multidrop interface MTS02-BD U 0
    M5931 EIA to/from MIL188C/100/114 DM11-XM U 0
    M5932 EIA to/from fiber optic cable DM11-XF U 0
    M5935 10 5V 70mA outputs, 2 inputs DM11-WA U 0
    M5931 DR11-C Compatible Differential line driver DM11-XM U 0
    M5940 EIA level converter   U 0
    M5941 8 channel MIL188C to DEC interface for DFS11-H DFS11-H U 0
    M5941-YA 8 channel MIL188C to DEC interface for data lines only DFS11-HA U 0
    M5941-YB 75 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-HB U 0
    M5941-YC 110 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-HC U 0
    M5941-YD 150 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-HD U 0
    M5941-YE 300 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-HE U 0
    M5941-YF 600 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-HF U 0
    M5941-YH 1200 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-HH U 0
    M5941-YJ 2400 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-HJ U 0
    M5941-YK 3600 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-HK U 0
    M5941-YL 4800 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-HL U 0
    M5941-YM 600 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-HM U 0
    M5941-YN 600 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-HN U 0
    M5941-YF 600 Baud 8 channel MIL188C to DEC interface for data lines only DFS11-H U 0
    M5942 8 channel EIA-CCITT to DEC, 7 DEC to EIA-CCITT,300,600,1200,1800 baud crystal clock DF11-L U 0
    M5943 5 channel EIA-CCITT to TTL, 4 channel TTL to Tri-state DM11-DR U 0
    M5943-YA M5943 modified to permit other drivers and receivers on same lines DM11-DS U 0
    M5946 8 channel differential drive and receiver,40mA, 0 to +5V, receiver +15 to -15V DFS11-A U 0
    M5947 5 channel EIA-CCITT to TTL, 4 channel TTL to Tri-state DR11-BD U 0
    M5948 Interface and serial Y-bus connector CSC11 U 0
    M5949 EIA to MIL188-114 Converter 7 receivers, 4 drivers DMC11-DA U 0
    M5951 100 Mbit transceiver, single line, used in Hydra, Q-BUS   Q 0
    M5952 5 channel TTL to RS422, 8 channel RS422 to TTL DFS11-BA U 0
    M5952-YA 5 channel TTL to MIL 188-114, 8 channel RS422 to TTL DFS11-BB U 0
    M5952-YB 5 channel EIA RS232C to RS422, 8 channel RS422 to RS232C DFS11-B? U 0
    M5952-YC 5 channel EIA RS232C to MIL 188-114, 8 channel MIL188-114 to RS232C, UNIBUS DFS11-B? U 0
    M5953 16 EIA to TTL, 24 TTL to EIA, conn for DV11, DZ11 DV11/DZ11 U 0
    M5960 20mA Active Current Loop interface, replaces M596 DF11 U 0
    M5970 PC500 TCY Control Module, UNIBUS PC500 U 0
    M5971 4 channel EIA to 20mA Converter, Q-BUS DZQ11/ DHQ11 Q 0
    M5973 TTL to differential transceiver, UNIBUS LLD11 U 0
    M5974 TTL to differential transceiver, (9 transmit, 2 receive) LN01K-AA U 0
    M5975 DECServer 500 support for IBM3270 class terminals PC500 Q 0
    M5976-AA QBUS TO SCSI ADPTR BA23/BA123 KZQSA Q 0

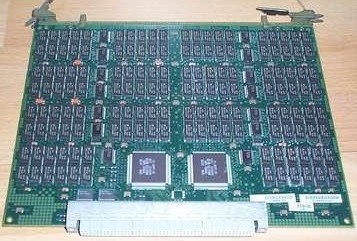

    M5976-SA Q-BUS TO SCSI KZQSA-SA/TLZ04 KZQSA-SA Q 0 m5976-sa.jpg (40716 Byte)
    M5977-AA SCSI-Controller, MSCP/TMSCP FOR PDP11 Q-BUS  PDP11-93 Q 0
    M5980 10-channel TTL differential transeiver   U 0
    M5982 2 channel fiber optic interface (IFQ), Qbus to Stealth bus DWQVA Q 0
    M5977-AA MSCP/TMSCP FOR PDP11   Q 0
    6000...
    M6003 16 Channel Digital output, MINC, Quint MNCDO   0
    M6010 32-bit non-isolated dc output module (IP11) IP11 U 0
    M6010-YA 32-bit non-isolated dc output module (TTL, IP11) IP11 U 0
    M6011 Non-isolated dc one-shot output module (IP11) IP11 U 0
    M6012 8-bit optical isolated dc output module (IP11) IP11 U 0
    M6013 8-bit isolated ac output module (IP11) IP11 U 0
    M6014 Dual 16-bit output Converter (IP11) IP11 U 0
    M6015 16-bit retentive dc output module (IP11) IP11 U 0
    M6029 16-bit Opto Isol. outputs IDV11-B Q 0
    M6865 16-bit Opto Isol. outputs, 4 control lines DR11-M  U 0
