    Liste der D|I|G|I|T|A|L (DEC) Module: M8200-M8299:

    Diese Listen dienen zur Information, welche Module der Hersteller produziert hat. Die Anzahl unserer lieferbaren Module werden in der Spalte "Lagerbestand" dokumentiert.
    These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".
    Modulname Bezeichnung System options QBUS Unibus Lagerbestand Bild
    M8200 1-line sync DDCMP DMA, microprocessor board, (Space for 1K ROM), UNIBUS DMC11 U 0
    M8200-YA 1-line sync DDCMP microprocessor with 1K control ROM (point-to-point, used with M8201), UNIBUS DMC11-R U 0
    M8200-YB 1-line sync DDCMP microprocessor with 1K control, ROM (point-to-point slave, used with M8202), UNIBUS DMC11-AL U 0
    M8200-YC 1-line sync DDCMP microprocessor with 1K control, ROM for LPA11, UNIBUS DMC11 U 0
    M8201 1-line sync DDCMP DMA, EIA & V35 line board,IPL SLU LO  DMC11 U 0
    M8202 1-line sync DDCMP DMA, coax line board, UNIBUS DMC11 U 0
    M8202-YA 1Mbps integral modem line unit, UNIBUS DMC11-MA U 0
    M8202-YB 500-Kbaud integral modem line unit, UNIBUS DMC11 U 0
    M8202-YC 250-Kbaud integral modem line unit, UNIBUS DMC11 U 0
    M8202-YD 56Kps integral modem line unit, UNIBUS DMC11-MD U 0
    M8202-YE 250-Kbaud integral modem line unit, UNIBUS DMC11 U 0
    M8202-YC Multi-drop 56-Kbaud integral modem line unit, UNIBUS ISB11-A U 0

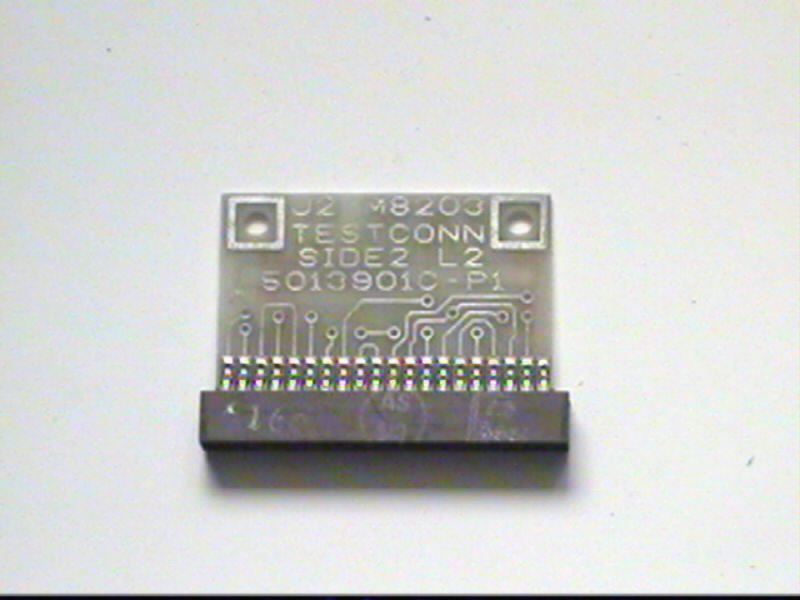

    M8203 DMP11 MULTIDROP LINE UNIT, RS, Line unit, RS-449, integral modem, UNIBUS KMV11 U 0 M8203.jpg (58829 Byte)
    M8204 KMC11-A MICROPROCESSOR, DMC11 code, 1K RAM programme space, UNIBUS KMC11-A U 0
    M8206 MICROPROC DMC11 CODE 4K RAM, UNIBUS DMC11 U 0
    M8207 Microcontroller with space for ROM, UNIBUS DMC11 U 0
    M8207-RA Microprocessor based sync communication controller, implements DDCMP protocol, UNIBUS DMC11 U 0
    M8207-YA Microprocessor with DDCMP control ROM(point-to-point or multidrop, used with M8203), UNIBUS DMC11 U 0
    M8208 Maintenance Module for 11MDS system (VT103), (to be installed in specially-wired slot), Q-BUS VT1X3-MM Q 0
    M8210 M.A.Y.  32KW (72 BIT WORD) MOS MEM, UNIBUS 11/780 U 0
    M8211 M.A.Y. Star MOS Memory  11/780 U 0
    M8212 M.D.T. MEMORY DATA PATH  11/780 U 0
    M8213 M.C.N. MEMORY CONTROLLER  11/780 U 0
    M8214 M.S.B. MEMORY SBI BOARD  11/780 U 0
    M8217 UNIBUS to Qbus interface module, UNIBUS DW11-A U 0
    M8218 S.B.L. LOW BIT INTERFACE, UNIBUS 11/780 U 0
    M8219 S.B.H. CPU HIGH BITS INTERFACE (S.B.H), UNIBUS 11/780 U 0
    M8220 C.A.M. CPU CACHE ADAPTER MATRIX, UNIBUS  11/780 U 0
    M8221 C.D.M. CPU CACHE DATA MATRIX, UNIBUS  11/780 U 0
    M8222 T.B.M. CPU TRANSLATION BUFFER MA, UNIBUS 11/780 U 0
    M8223 I.R.C CPU INSTRUCT DECODE&CLOCK, UNIBUS 11/780 U 0
    M8224 I.D.P CPU INTERUCTION DATA PATH, UNIBUS 11/780 U 0
    M8225 D.B.P.A DATA ALIGNER, UNIBUS   11/780 U 0
    M8226 D.E.P DATA PATH E, UNIBUS   11/780 U 0
    M8227 D.D.P DATA PATH D, UNIBUS   11/780 U 0
    M8228 D.C.P MODULE, CPU DATA PATH C, UNIBUS  11/780 U 0
    M8229 D.A.P.  DATA PATH A, UNIBUS   11/780 U 0
    M8230 D.E.H. CPU CONDITION CODE, UNIBUS   11/780 U 0
    M8231 I.C.L. CPU TRAPS AND INTERRUPTS CONT, UNIBUS   11/780 U 0
    M8232 C.L.K. CPU CLOCK, UNIBUS   11/780 U 0
    M8233 W.C.S. CPU Writeable CONTROL STORE, UNIBUS 11/780 U 0
    M8234 P.C.S. CPU PROM CONTROL STORE, UNIBUS  11/780 U 0
    M8235 U.S.C. MICRO SEQUENCER CONTROL, UNIBUS  11/780 U 0
    M8236 C.I.B. CONSOLE INTERFACE, UNIBUS  11/780 U 0
    M8237 T.R.S. TERMINATOR SILO, UNIBUS  11/780 U 0
    M8238 KU780-A 2K WCS,4-LAYER HEX 12, UNIBUS  KU780-A U 0

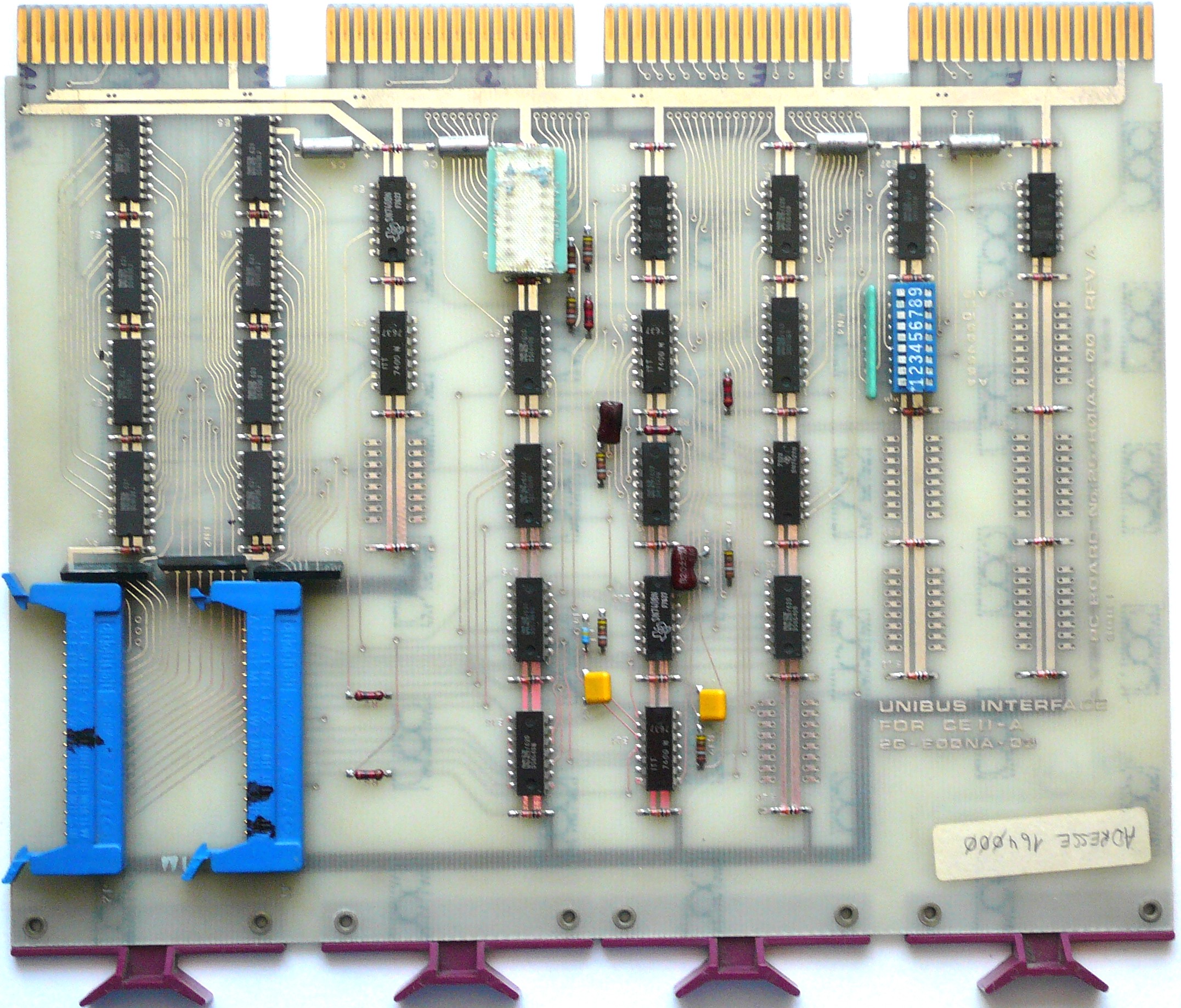

    M8244 PC-Board, UNIBUS   U 1 DEC UNIBUS Modul m8244, PC-Board, von oben
    M8254 Interprocessor buffer, UNIBUS  DA11-KA U 0
    M8255 Unibus serial console micro control, UNIBUS KY11-R,RC U 0
    M8255-01 Unibus serial european console micro control, UNIBUS KY11-RE U 0
    M8256 RX211 UNIBUS RX02 INTERFACE Q RX211 U 0
    M8258 MULTIPORT PORT INTER    U 0
    M8259 MULTIPORT PORT CONT    U 0
    M8260 MULTIPORT ARRAY    U 0
    M8261 MULTIPORT SYNCRONIZER    U 0
    M8264 No sack Timeout Module for PDP11/34, UNIBUS KD11 11/34 U 0

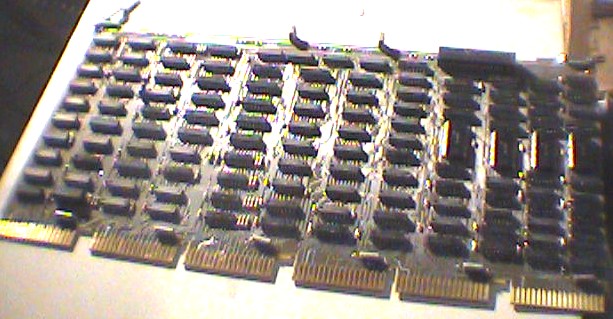

    M8265 DATA PATH,HEX (KD11-EA), CPU (PDP11/34), UNIBUS KD11-EA U 1 DIGITAL / DEC UNIBUS Modul M8265, DATA PATH,HEX(KD11-EA), CPU (PDP11/34), Ansicht

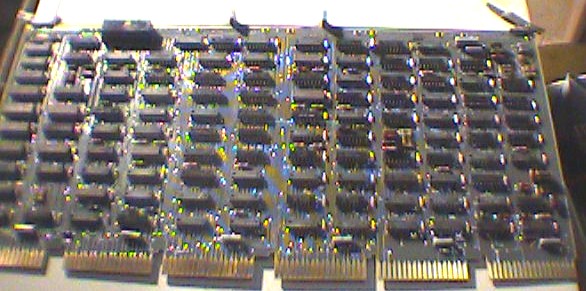

    M8266 CONTROL,HEX (KD11EA) CPU (PDP11/34), UNIBUS KD11-EA U 1 DIGITAL UNIBUS Modul M8266 CONTROL,HEX (KD11EA) CPU (PDP11/34), Ansicht

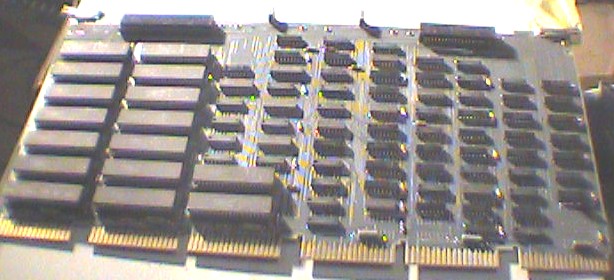

    M8267 floating point option HEX(FP11A) (PDP11/34),16x AMD AM2901 FP11 U 0 DIGITAL UNIBUS Modul M8267, floating point option HEX(FP11A) (PDP11/34), Ansicht von oben
    M8267-TA Test module for M8267, UNIBUS FP11 U 0
    M8268 Cache Memory option (PDP11/34) KK11-A U 0
    M8270 U.S.I. YSI-SBI INTERFACE  11/780 U 0
    M8271 U.C.B. YMD UNIBUS MAP AND DATA PATH 11/780 U 0
    M8272 U.M.D. UNIBUS ADAPTER ADDRESS  11/780 U 0
    M8273 U.A.I. UNIBUS ADAPTER CONTROL  11/780 U 0
    M8274 RH780 EXTENDED SILO MASSBUS    U 0
    M8275 M.S.I.  MASSBUS ADAPTER SBI INTER  11/780 U 0
    M8276 M.I.R.  MASSBUS INTERNAL REGISTER  11/780 U 0
    M8277 M.D.P.  MASSBUS DATA PATH  11/780 U 0
    M8278 M.C.P.  MASSBUS ADAPTER CONTROL  11/780 U 0
    M8285 FOATING POINT FRACTION NORMALIZER 11/780 U 0
    M8286 FLOATING POINT FRACTION MULTIPLIER HIGH 11/780 U 0
    M8287 FLOATING POINT FRACTION MULTIPLIER low 11/780 U 0
    M8288 FLOATING POINT ACCELLERATOR C 11/780 U 0
    M8289 FMH fpa CONTROLLER 11/780 U 0
    M8290 CR-11/CM-11 card reader controller, UNIBUS CR-11 U 0

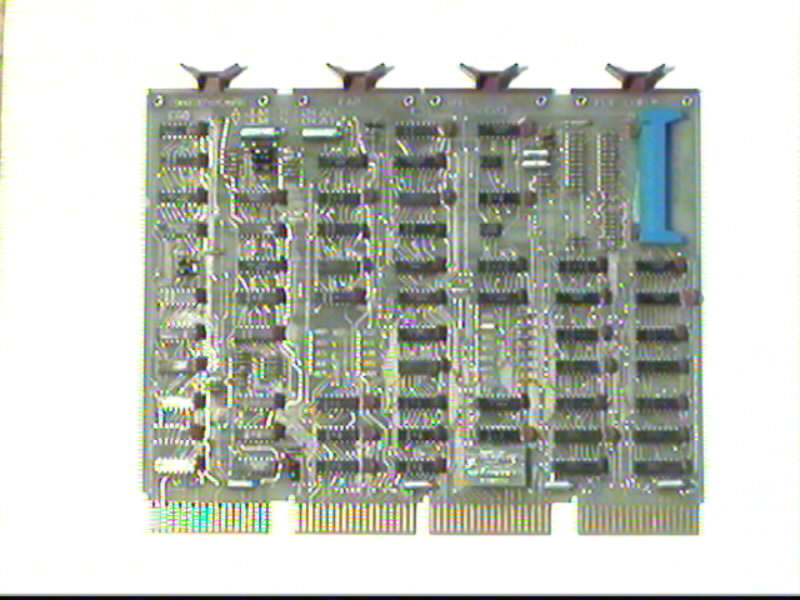

    M8291 CR11/CM11 Interface, UNIBUS CR11/CM11 U 0 M8291.jpg (103700 Byte)
    M8293 UNIBUS 16K TIMING & CONTROL, UNIBUS MF11-U U 0
    M8294 Timing & Control for PDP11/60, UNIBUS PDP11/60 U 0
    M8295 RGB graphics memory board, UNIBUS VT30-H U 0
    M8296 SYNC BACKPLANE INTERCON, UNIBUS   U 0
    M8297 DR780 CONTROL,4 LAYER,HEX, UNIBUS   U 0
    M8297-YA DR780 CONTROL MOD FOR CI780   U 0
    M8298 DR780 MICROPROCESSOR   U 0
    M8299 DR780 SILO,HEX,12   U 0
