    Liste der D|I|G|I|T|A|L (DEC) Module M9000-M9999:

    Diese Listen dienen zur Information, welche Module der Hersteller produziert hat. Die Anzahl unserer lieferbaren Module werden in der Spalte "Lagerbestand" dokumentiert.
    These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".

    For further informations see:
    1. D|I|G|I|T|A|L Control handbook 1970, FLIP CHIP,
    2. D|I|G|I|T|A|L Control handbook 1969, Positive logic edition,
    3. D|I|G|I|T|A|L logic handbook 1975-76,

    4. all informations are printed by DIGITAL EQUIPMENT CORPORATION.

    These parts are used in INDAC8, PDP-8/L, PDP-8/I, PDP-9/L, PDP-9/I, PDP-10, PD-P11, PDP-12, PDP-14 and PDP-15
    Modulname Bezeichnung System options QBUS Unibus Lager- bestand Bild
    M9001 TU16 CABLE CARD, Bus connector TU16 U 0
    M9001-YA M9001/8 LINES GROUND, General Purpose card (E & F) TU16 U 0
    M9001-YB M9001/8 LINES GROUND, General Purpose card (A & B), term TU16 U 0
    M9001-YC M9001/8 LINES GROUND, General Purpose card (E & F) M9001-YA terminated TU16 U 0

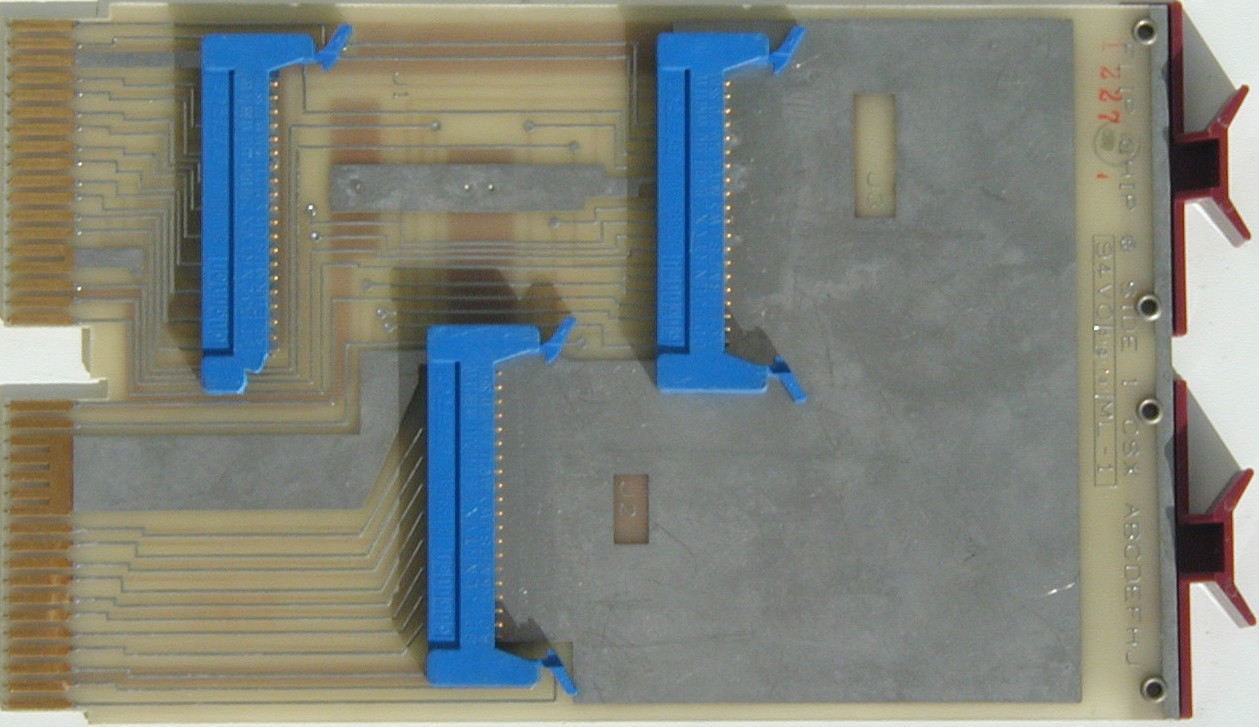

    M9014 UNIBUS to 3 H854s ADAPTOR BOARD RR11-C  PDP11 U 2 DEC Modul M9014, UNIBUS to 3 H854s ADAPTOR BOARD RR11-C (114676 Byte)
    M9015 3 H854s to UNIBUS   U 0
    M9016 RK06 MODULE Cabling board RK06/07 U 0
    M9031 UNIBUS to 3 3M cables for 11/74   U 0
    M9037 Grant continuity, Q-BUS   Q 0
    M9039 TE16 TERMINATOR, HEX BRD, UNIBUS TE16  U 0
    M9040 11/780 CPU SBI TERMINATOR,HEX 11/780 U 0
    M9041 M.P.C. MASS BUS PADDLE CARD  11/780 U 0
    M9042 U.P.C. UNIBUS PADDLE CARD  11/780 U 0
    M9043 11/780,SBI(BACKPLANE end TERM),HEX  11/780 U 0
    M9044 U.B.T. UBA UNIBUS TERMINAL  11/780 U 0
    M9045 BDI PADDLE CARD FOR MA780 ??   U? 0
    M9045 Q22 CABLE CONNECTOR    Q 0

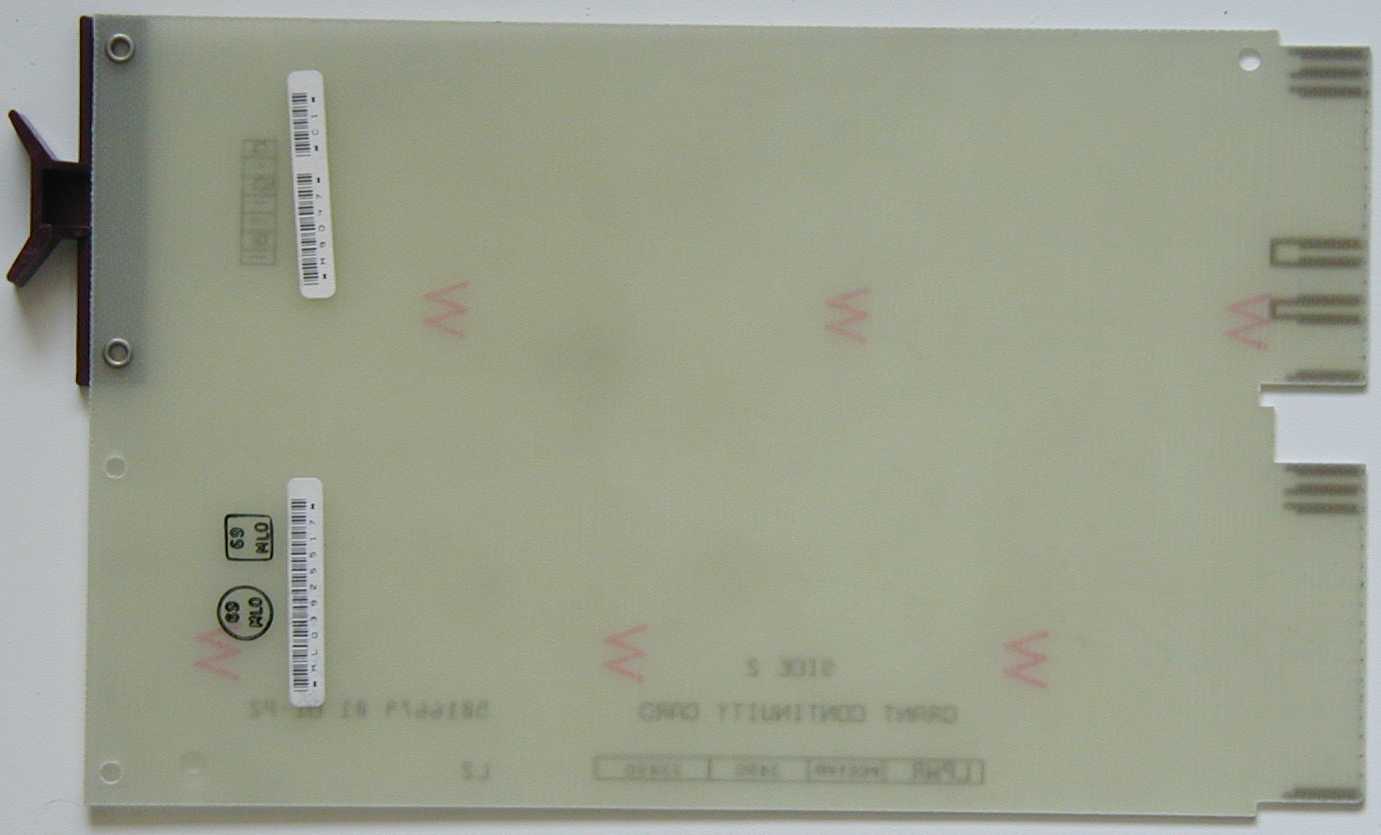

    M9047 QBUS GRANT CONTINUITY    Q 6 DEC Modul M9047, QBUS GRANT CONTINUITY (39581 Byte)
    M9049 ELEM POWER SUPPLY LOAD BOARD      0

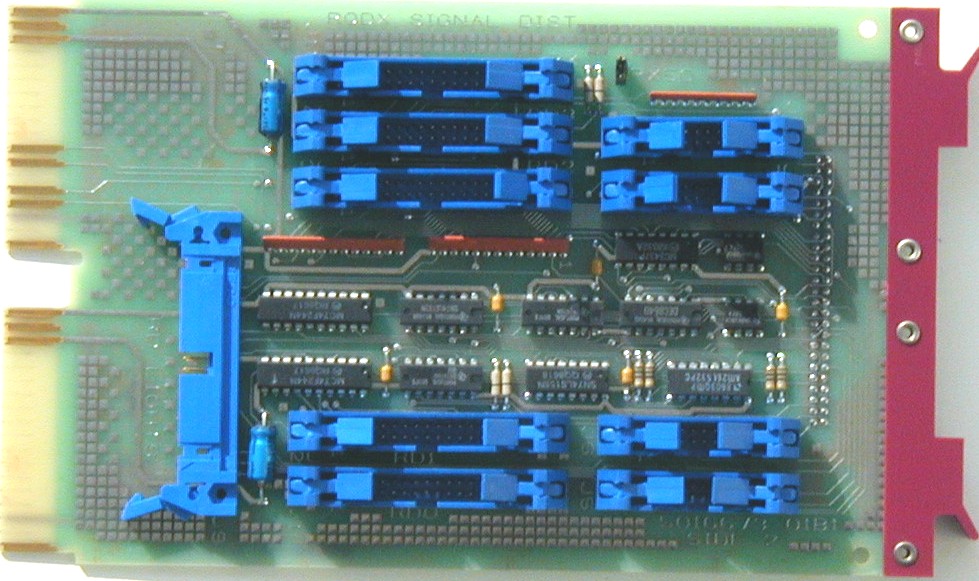

    M9058 Distribution/adapter/buffer board for RQDX1/2/3 to four drives and switch panels, fits BA23/124.SIGNAL DIST FOR RD52 AND RX50, Q-BUS   Q 1 DEC Modul M9058, Distribution/adapter/buffer board for RQDX1/2/3 to four drives and switch
    panels, fits BA23/124.SIGNAL DIST FOR RD52 AND RX50, Q-BUS (164045 Byte)
    M9060-YA +5/12V LOAD Modul FOR BA213 BOX   11/780 U 0
    M9061-AA 11/84 AC/DC reboot sequencer   U 0

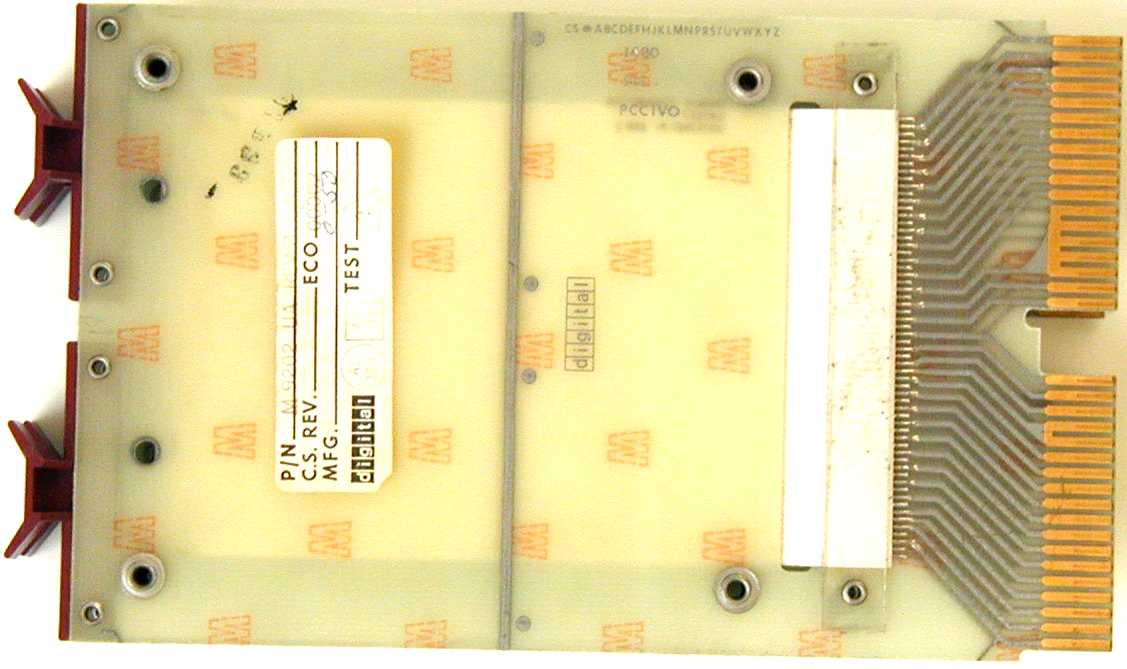

    M9202 M9192-M9292, 1"APART W/2'C , UNIBUS CONNECTOR   U 2 M9202.jpg (67533 Byte)

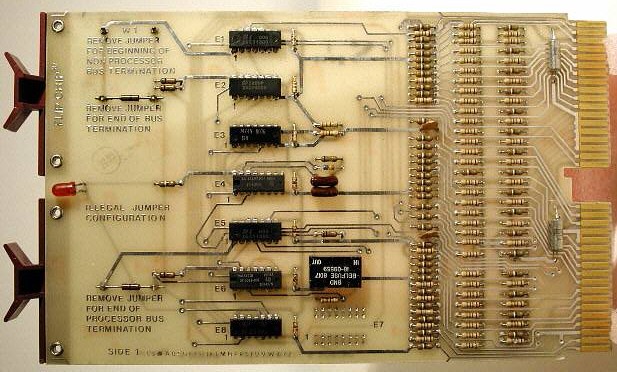

    M9300 UNIBUS B TERMINATOR   U 0
    M9301 UNIBUS B TERMINATOR with space for 512-word ROM BOOT Strap 11/34 U 0
    M9301-SA M9301 with Western Electric bootstrap 11/34 U 0
    M9301-SB M9301 with Chase bootstrap (M9301-YA + 2nd RP04) 11/34 U 0
    M9301-SC M9301 with Chase bootstrap (M9301-YC + 2nd RK11) 11/34 U 0
    M9301-SD M9301 with SEDM bootstrap for WECO 11/34 U 0
    M9301-SE M9301 with Canada Post Office bootstrap 11/34 U 0
    M9301-SF M9301 with DA11 bootstrap 11/34 U 0
    M9301-SH M9301-YC modified for RX11 11/34 U 0
    M9301-SJ M9301-YA + RF11 boot (WECO) 11/34 U 0
    M9301-SK Boot for DMC11, RX01, TU10, DL11, PTR, ASCII, diagnostics 11/34 U 0
    M9301-SL M9301-SE with no remote switch panel 11/34 U 0
    M9301-SV M9301 with DQ11-DA DECnet loader, RK, RX, TMA11 boots 11/34 U 0
    M9301-SW UNIBUS M9301-SF updated with DA11 DECnet 2 bootstrap 11/34 U 0
    M9301-SX M9301 with DA11 DECnet 2 loader 11/34 U 0
    M9301-SY M9301 with DMC11 DECnet & TJE16 loader 11/34 U 0
    M9301-WA M9301 with 765000 & 766000 addresses, DN87S SMP boot (TOPS-10) 11/34 U 0
    M9301-WB M9301-WA except DN20-CC, -CD SMP boot (TOPS-10) 11/34 U 0
    M9301-YC M9301 with 11/70 bootstrap 11/34 U 0
    M9301-YD M9301 with DDCMP bootstrap 11/34 U 0
    M9301-YE M9301 with bootstrap for DECnet, DL11-E, DU11, DUP11, low speed PTR, ASCII console 11/34 U 0
    M9301-YF M9301 with boot for PC11, RP02-6, RS03-4, RK05-6, RX01, TU10, TU16, TU56, TS03, TTY, ASCII console, diagnostics 11/34 U 0
    M9301-YH UNIBUS M9301 with 11/60 bootstrap (works with 11/70) 11/34 U 0
    M9301-YJ UNIBUS M9301 with bootstrap for DECnet DMC11, RX01, TU10, ASCII console 11/34 U 0
    M9301-YL UNIBUS M9301 with Olivetti bootstrap 11/34 U 0

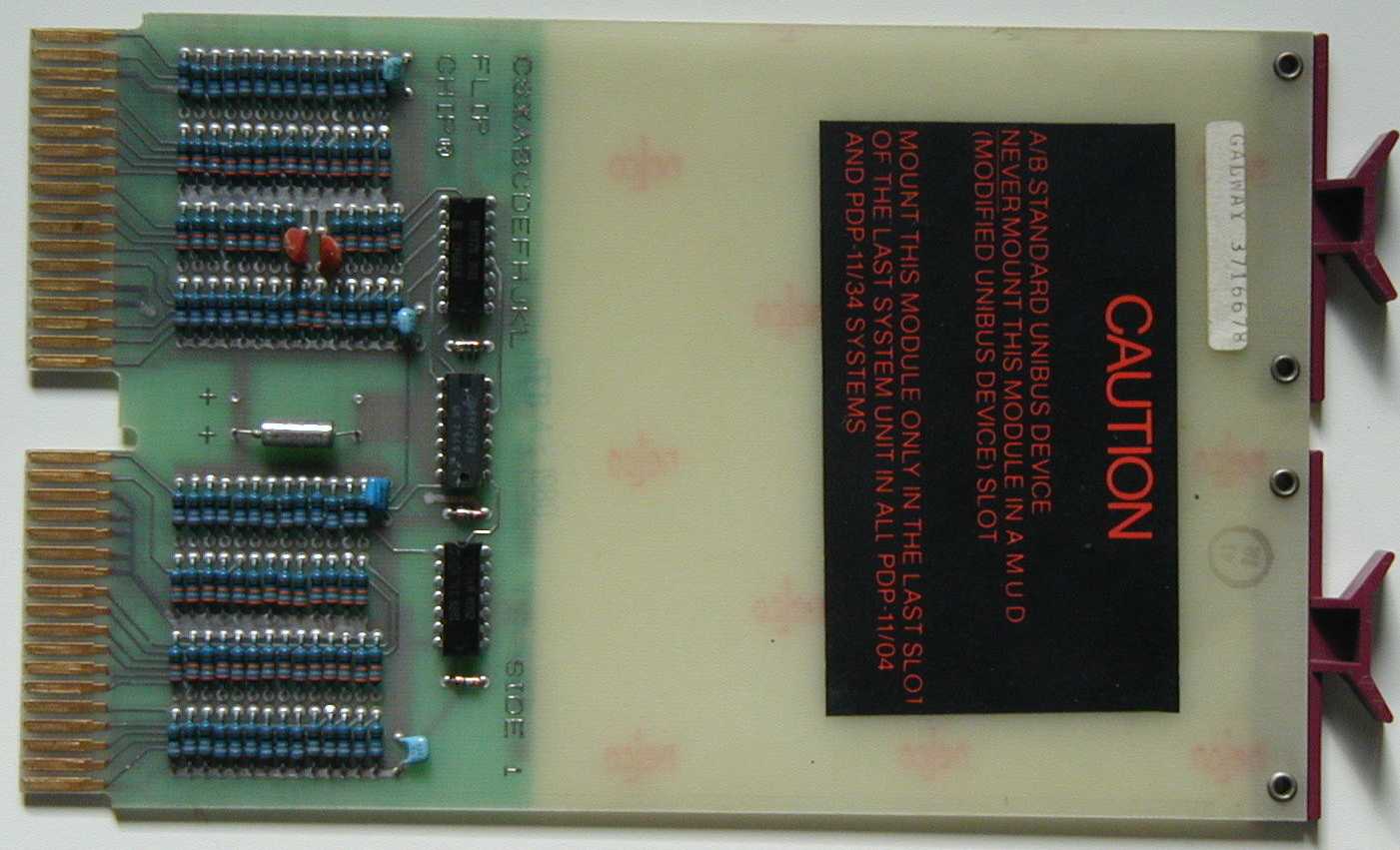

    M9302 UNIBUS 11/04 UNIBUS terminator, far end 11/34, 11/780 U 2 M9302.jpg (92072 Byte)
    M9302-YA M9302 with different resistors for minimum levels 11/34 U 0
    M9302-YB M9302 card used to mount an overtemperature relay 11/34 U 0
    M9303 M930 with individual +5V for each terminator 11/34 U 0
    M9303-YA M9303 + M9307 wired together with 1" spacers. 11/34 U 0
    M9304 Long M930 for low margin testing 11/34 U 0
    M9304-YA Long M930 for high margin testing 11/34 U 0
    M9305 M981 for low margin testing 11/34 U 0
    M9305 M981 for high margin testing 11/34 U 0
    M9306 11/04 near end UNIBUS terminator, no boot 11/34 U 0
    M9306-YB M9306 with different resistors to give a minimum UNIBUS level when put in parallel with another terminator. 11/34 U 0
    M9307 M919 for 2 40-conductor 3M cable 11/34 U 0
    M9308 Single-ended margin head (UNIBUS terminator with sack turn-around logic) 11/34 U 0
    M9309 Long M930 11/34 U 0
    M9311 M9301 with 766000 and 763000 addresses and GT62 comm boot loader 11/34 U 0
    M9312 Bootstrap terminator with 5 empty ROM sockets; one for CPU diagnostics, 4 for peripheral boots MR11 U 0
    M9312-YA M9312 revision C or later for 11/74 MR11 U 0
    M9313 UNIBUS EXERCIZER & TERMINATOR (UET)   U 0
    M9400 REV11-A LSI BUS,REF/BOOT,TERM KC780 U 0

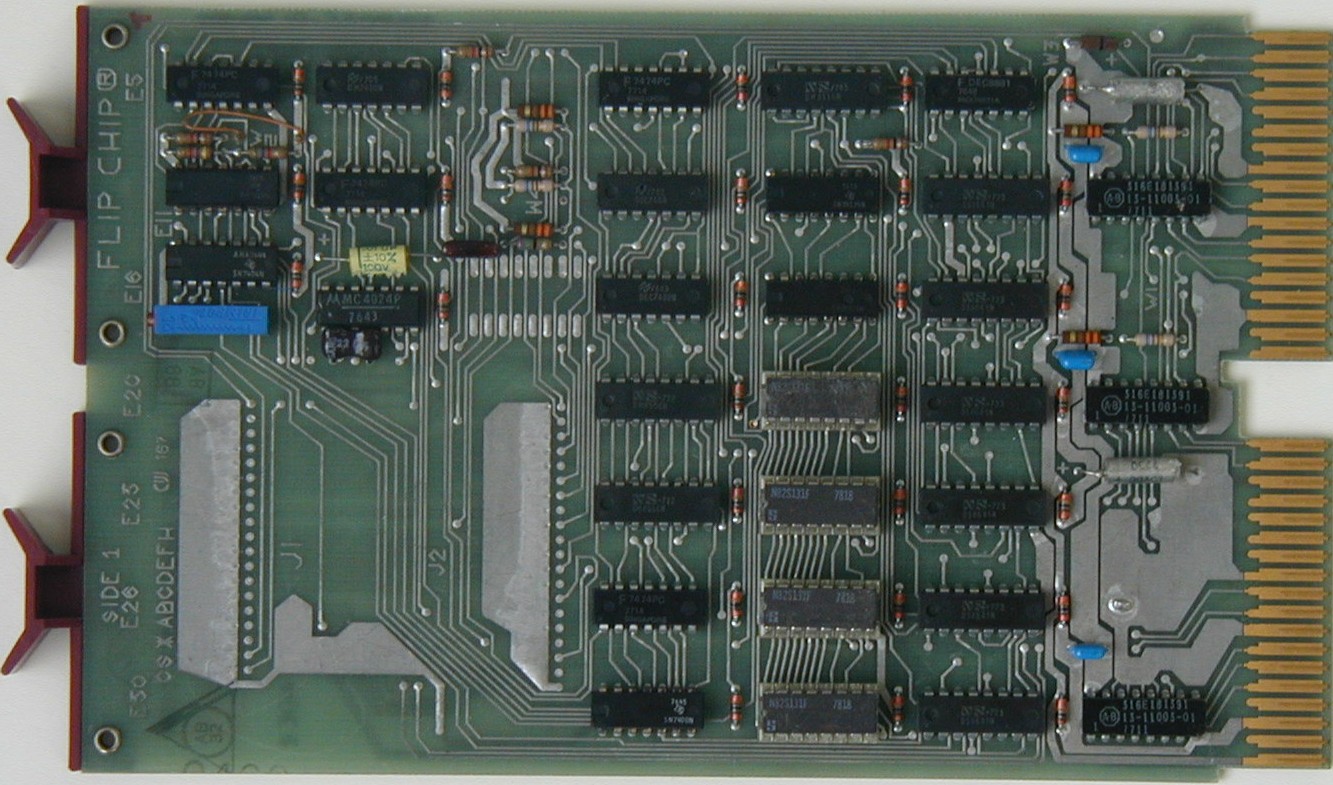

    M9400-YA  REV11-A LSI BUS,REF/BOOT,TERM KC780 Q 0

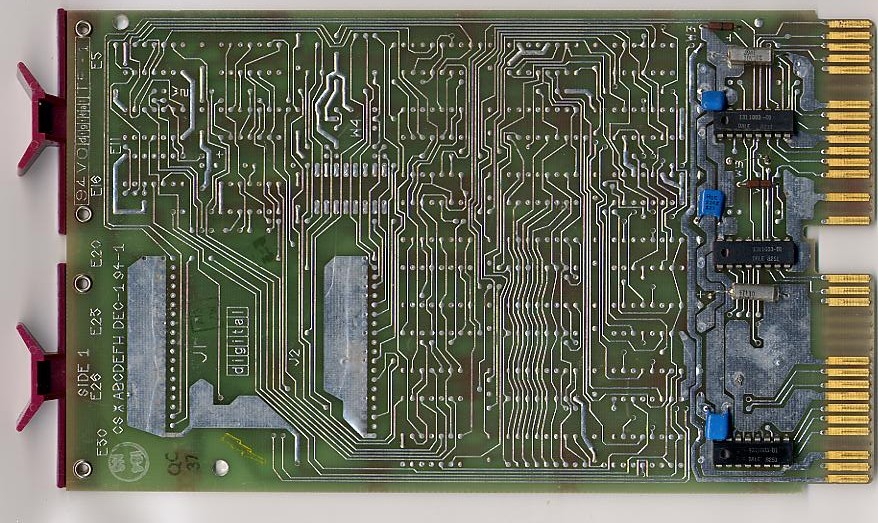

    M9400-YB TEV11 LSI BUS, 120-OHM TERM,Q-BUS REV11-B Q 1
    M9400-YC REV11-C LSI BUS, REF/BOOT, Q-BUS  REV11-C Q 0

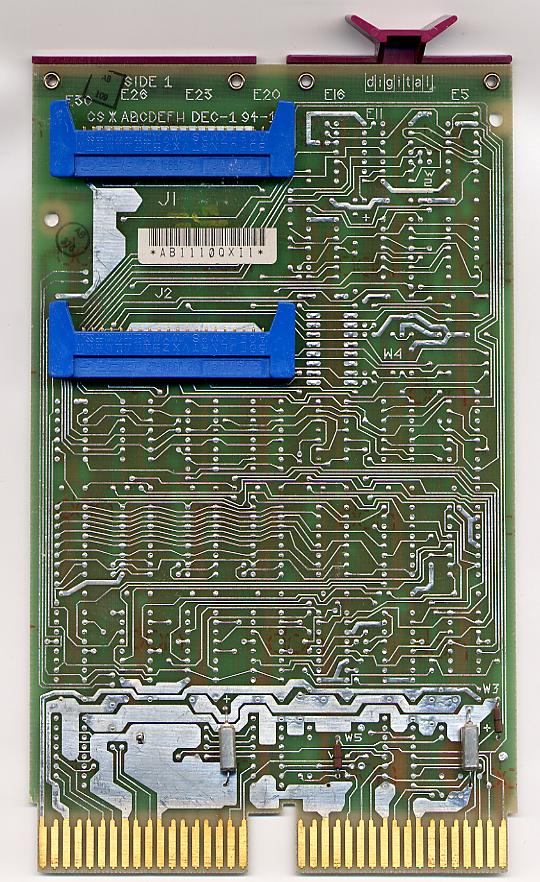

    M9400-YD LSI BUS, HEADER ALONE(2 H854), Q-BUS REV11-D Q 1 m9400yd.jpg (149274 Byte)

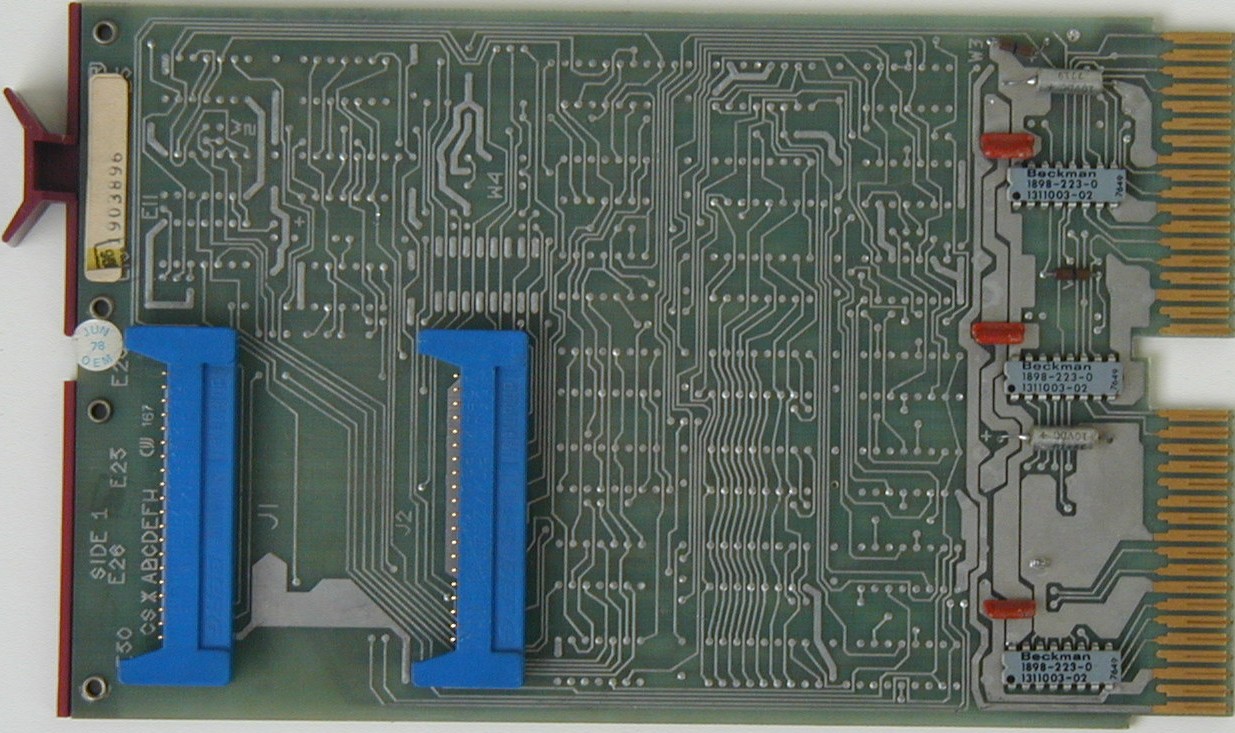

    M9400-YE LSI BUS,250-OHM TERM(2 H854), Q-BUS REV11-E Q 0
    M9400-YF M9400-YA with boot sockets with no ROMs, Q-BUS REV11-F Q 0
    M9400-YH LDP/COMM boot & floppy boot with terminators, Q-BUS REV11-H Q 0
    M9400-YJ DMA refresh bootstrap, cable connector, 250-ohm terminator, Q-BUS REV11-J Q 0
    M9400-YK M9400-YH with no terminators, Q-BUS REV11-K Q 0
    M9400-YL M9400-YH with cable connectors, Q-BUS REV11-L Q 0
    M9400-YM Refresh with DECnet bootstrap, Q-BUS REV11-M Q 0
    M9400-YN RX02 boot and refresh, Q-BUS REV11-N Q 0

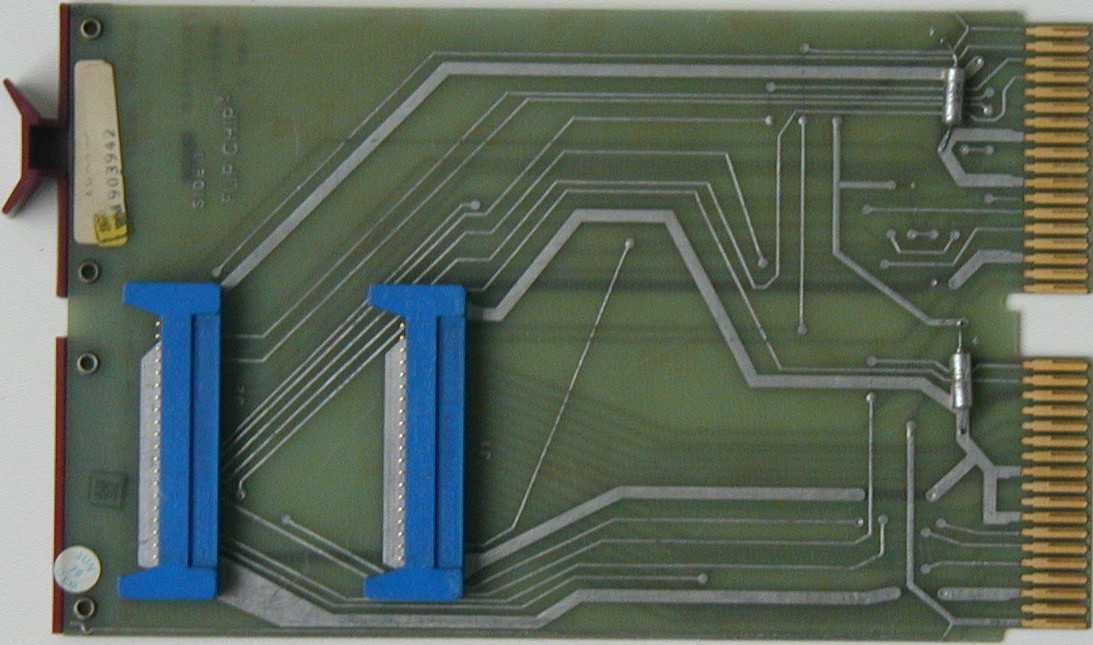

    M9401 LSI-11 MIRROR CABLE CONN   Q 2 m9401.jpg (81142 Byte)
    M9403 DW11-B Q-BUS CONNECTOR    Q 0

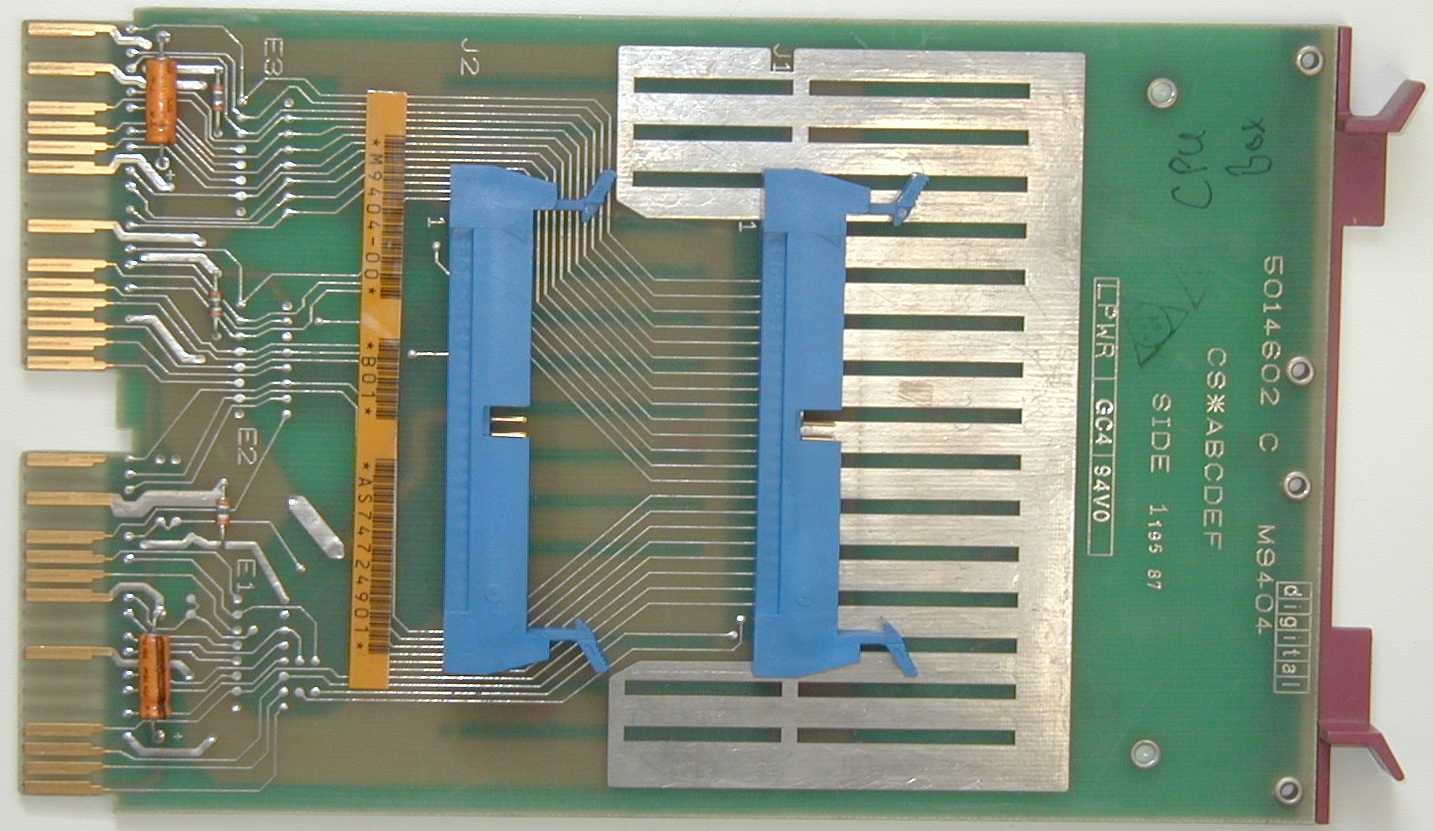

    M9404 1st Q22 bus cable connector, no terminators   Q 2 M9404.jpg (110013 Byte)
    M9404-YA Q-22 Cable connector for expansion box, with 240-Ohm terminators   Q 0
    M9405 Q-22, 2nd Q22 bus cable connector, no terminators,   Q 0
    M9405-YA Q-22, M9405 with 120-Ohm terminators.   Q 0

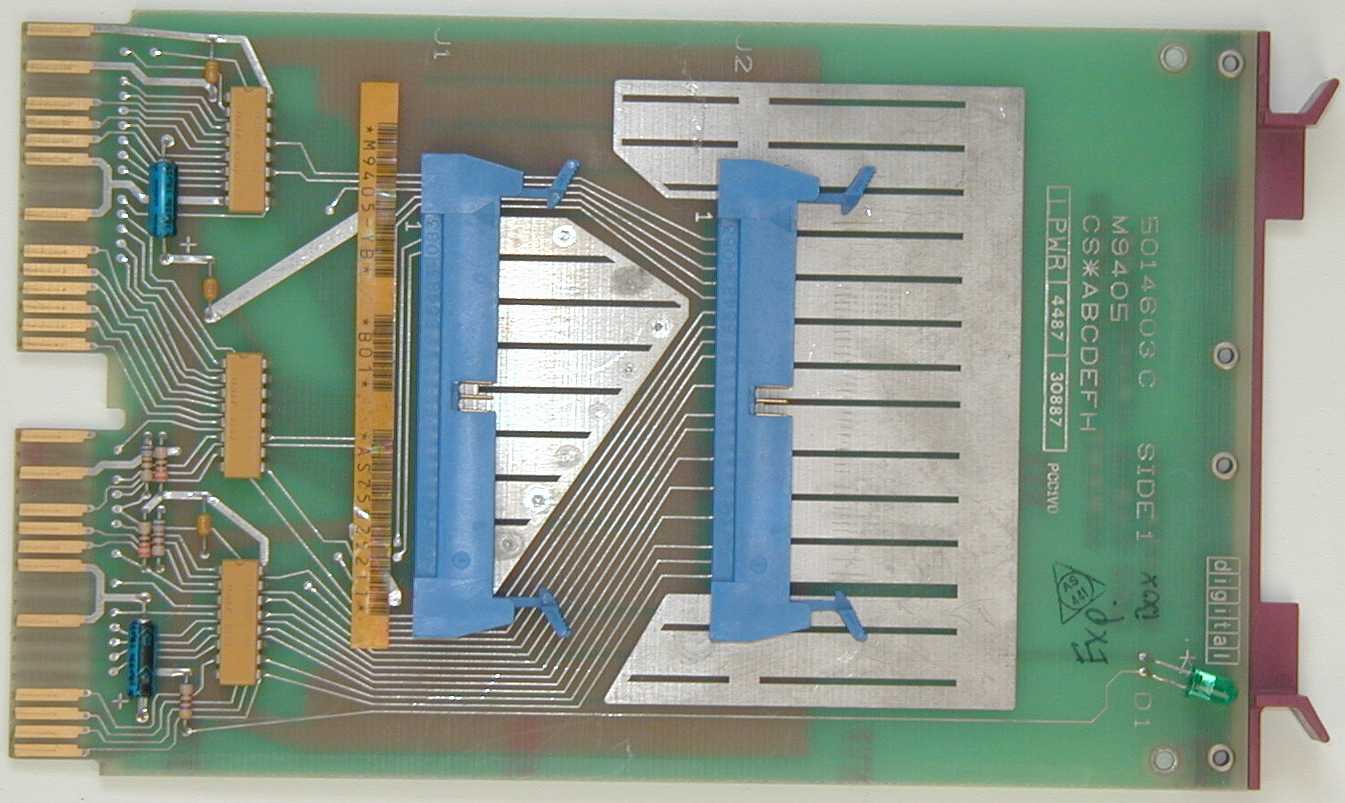

    M9405-YB Q-22 BUS MIRROR IMAGE CABLE Connector   Q 2 M9405.jpg (100593 Byte)
    M9405-YD Q-22, M9405 with 120-Ohm terminators.   Q 0
    M9405-YE Q-22, M9405 with 240-Ohm terminators   Q 0
    M9405-PA Q-22, cable connector with 240-Ohm terminators   Q 0

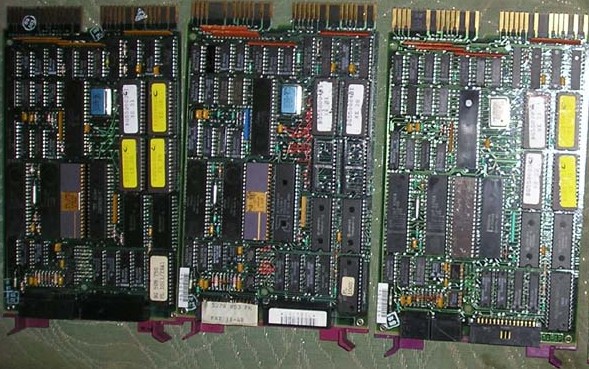

    M9676 PDP11/21+, KXT11-AB, single board computer SBC-11/21+  Q? 0
    M9700 M970/SPLIT LUGS (BC05M)     0
    M9713-AA +5V AND -15V MIN LOAD MODULE     0
    M9714-AA ALT POWER SOURCE MODULE (APS)     0
    M9715 'paddle' board, connects to KA660     0
    M9715-AA interface card for Vax Model B400X-B9- B04     0

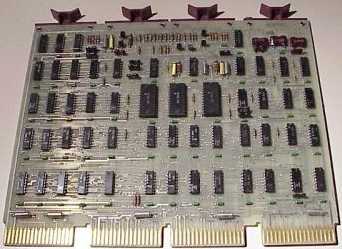

    M9801       0 M9801-YB.jpg (16728 Byte)
    M9970 M997, H854 Facing Edge (11/05)     0
