    Liste der D|I|G|I|T|A|L (DEC) Module, H-Serie: H001-H9999

    Diese Listen dienen zur Information, welche Module der Hersteller produziert hat. Die Anzahl unserer lieferbaren Module werden in der Spalte "Lagerbestand" dokumentiert.
    These lists are only informations, which parts were producted. Our available parts are shown in the row "Lagerbestand".
    Modul- name Bezeichnung System options Lager- bestand Bild
    H001 Bracket PDP8/11/16 0
    H002 Bracket PDP8/11/16 0
    H020 Frame casting PDP8/11/16 0
    H021 End plates PDP8/11/16 0
    H022 End plate assembly PDP8 PDP11 PDP16 0
    H114 (with G114 and G235, part of memory option), UNIBUS   0
    H201 core memory   0
    H207 4096x16 core stack for 11/15 (on G616 & G617), UNIBUS   0
    H211 4-Kword 12-bit stack on G648 (for 11/20), UNIBUS MM8-EH 0
    H213 4-Kword 16-bit stack on G645, UNIBUS    0

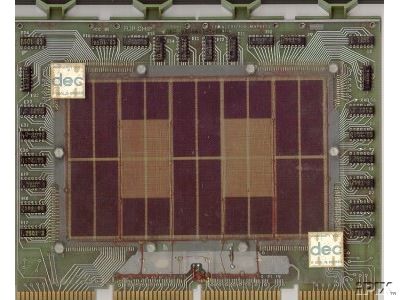

    H214 8K Core Stack modul, (16Bits), UNIBUS MF11-L 1 DIGITAL (DEC) UNIBUS Modul H214, 8K Core Stack modul, (28890 Byte)
    H214-YA 8-Kword 16-bit H213 (used in MM11-L), (same as H214, but 850NS), UNIBUS MM11-L 0
    H215 8KStack modul, with parity (16Bits), UNIBUS MF11-LP  0

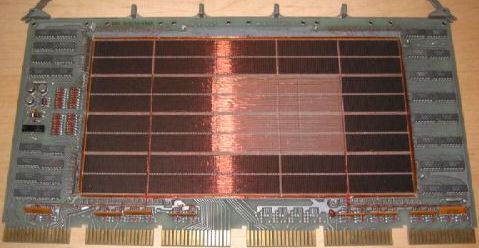

    H217 Stack modul, Core Memory 32K * 18, UNIBUS  MF11 0 DIGITAL (DEC) UNIBUS Modul H217, Stack modul, Core Memory 32K * 18
    H221-A 8-Kword 18-bit stack (plugs into G651), UNIBUS  MF11 0
    H221-B 8-Kword 16-bit stack (plugs into G651), UNIBUS MF11 0
    H222 16-Kword 18-bit stack, UNIBUS  MM11-DP 0
    H222A Memory 16K stack, UNIBUS MM11-YP 0 DIGITAL (DEC) UNIBUS Modul H222A Memory 16K stack, (34133 Byte)
    H223 4-Kword 16-bit stack & drive assembly, (plugs into G653), Q-BUS MMV11-A 0
    H224 32-Kword 18-bit core stack, Memory stack  PDP11/60 0
    H228-B 32-Kword 18-bit 14-mil core stack, (plugs into G657), UNIBUS MM11-YP 0

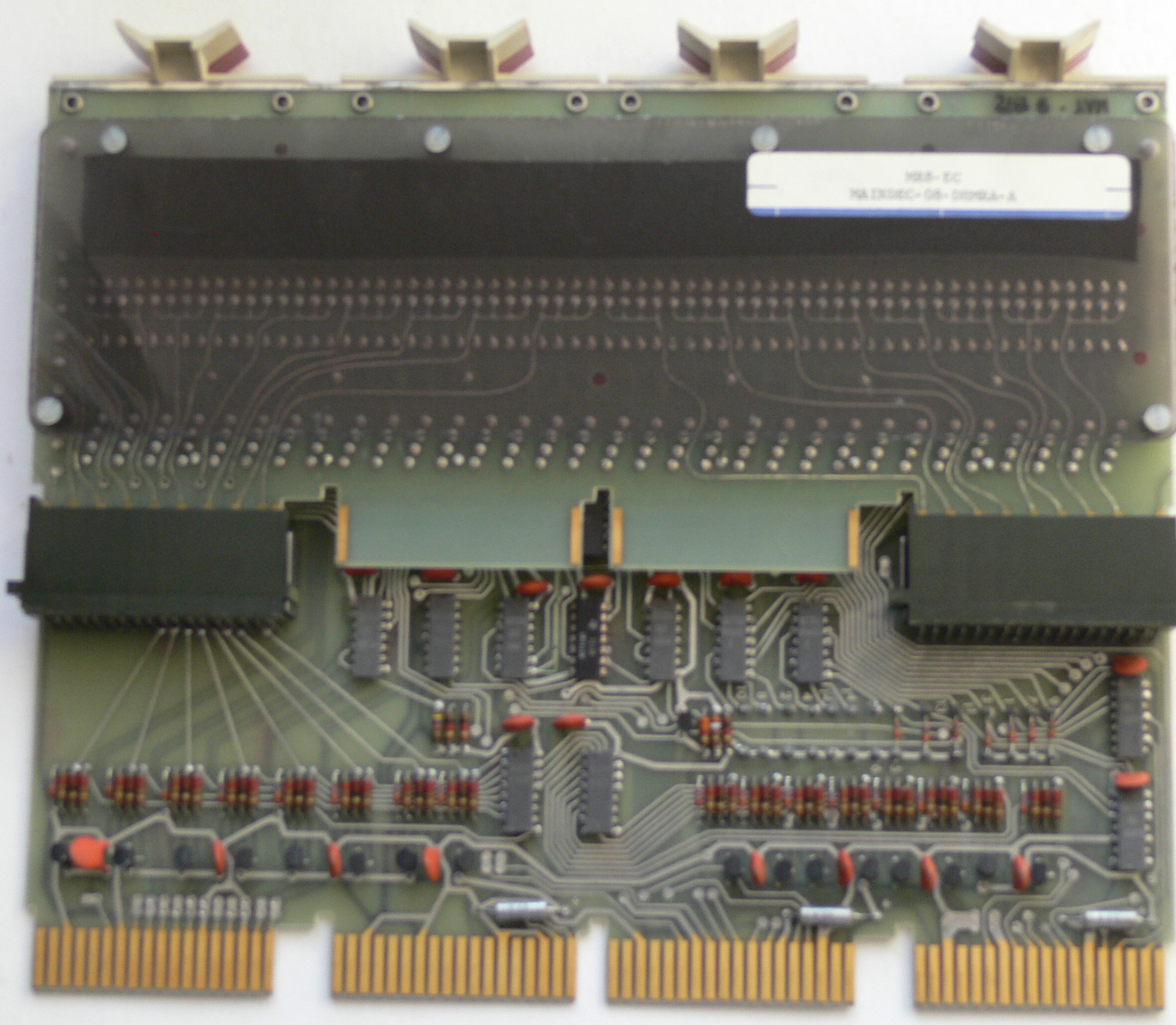

    H241   BA11 2 H241.JPG (1869470 Byte)
    H312-A Null Modem BA11  0

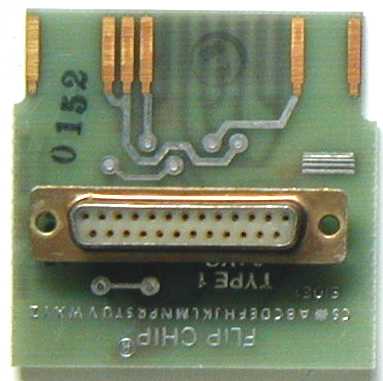

    H315-A MODEM TEST CONN (DH11, DL11E, DL11W, DLV11, DQ11, DU11, DUV11)    2 DIGITAL (DEC) UNIBUS Modul H315A, MODEM TEST CONN (DH11, DL11E, DL11W, DLV11, DQ11, DU11, DUV11) (15204 Byte)
    H317 Cable Box Assy  DZ11 0
    H317-B Distribution Panel (DH11) DH11 0
    H317-E Distribution Panel, EIA (DZ11)  DZ11 0
    H317-F Distribution Panel, 20mA (DZ11)  DZ11 0

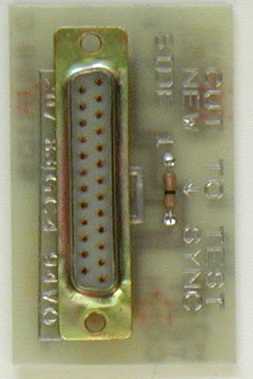

    H325 Line loopback test connector, (DMV11, DMP11, DMR11, DPV11, DUP11, DV11, DZ11, DZV11) DZ11  1 DIGITAL (DEC) UNIBUS Modul H325, Line loopback test connector (8778 Byte)
    H327 DZV11 Comm Loopback test connector DZV11  0
    H329 DZ11 Turnaround connector  DZ11 0
    H349 Distribution panel
    H403 AC Input Box  11/23 0
    H603 SERVO AMPLIFIER  TU10 ß

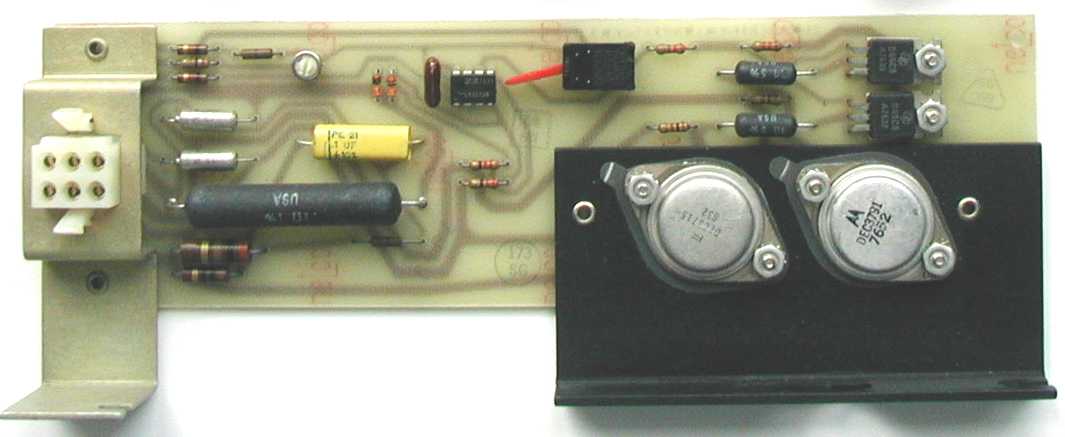

    H604 HEAD POSITION SERVO POWER AMPLIFIER RK05 1 DIGITAL (DEC) UNIBUS Modul H604, HEAD POSITION SERVO POWER AMPLIFIER (35051 Byte)
    H607 Power Board  TU10 0
    H681-C Test Connector (DH11, DV11)  DH11 0
    H701A Power supply
    H704 Dual Power supply (+-15V)
    H707 Dual Power supply (+-15V)
    H710 Power supply
    H716 Power supply  PDP16
    H722 Transformer   PC11-A 0
    H740 Power supply
    H742 Power supply   PDP11/45
    H743 Power supply  RK05

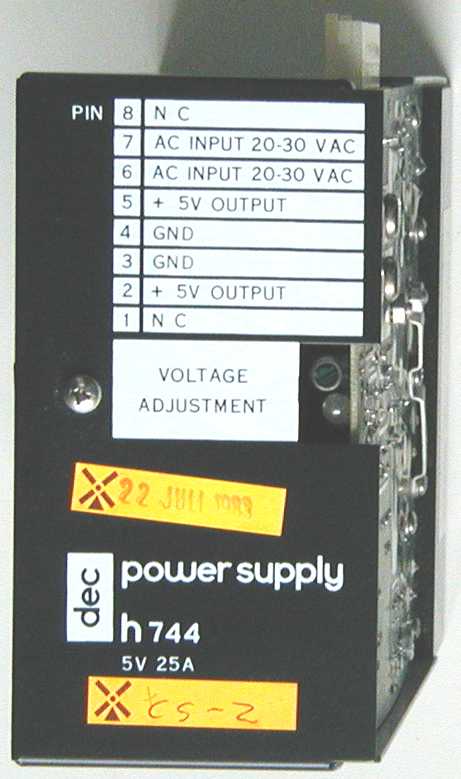

    H744 Regulator for box 10 1/2" 5V 25A, used in BA11-K BA11-K 1 DIGITAL (DEC) UNIBUS Modul h744, Regulator for box 10 1/2" 5V 25A, (35012 Byte)

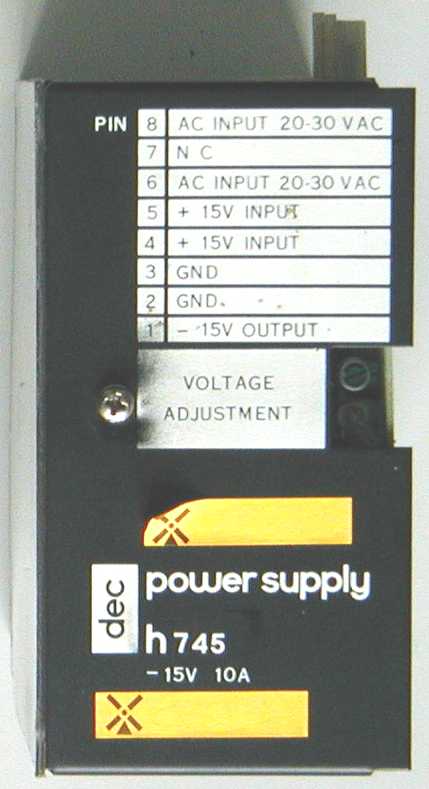

    H745 Regulator for box 10 1/2" -15V 10A, used in BA11-K  BA11-K 1 DIGITAL (DEC) UNIBUS Modul h745, Regulator for box 10 1/2" -15V 10A, (30302 Byte)
    H746 MOS Regulator  PDP11/45 0
    H754 Regulator for box 10 1/2" +20V 8A -5V 1A, used in BA11-K. MF11 0
    H765 Power supply  BA11-K 0
    H771 Power supply for RX02 RX02 0
    H777 Power supply for PDP11/04 and 11/34  BA11-K 0
    H780  Power supply (used in BA11-M, (120vac: -A, -C, -E, -H, -K, -M, -240vac: -B, -D, -F, -J, -L, -N, -R) BA11-M 0
    H781  Power supply (used in BA11-M) KD11/BA11 0

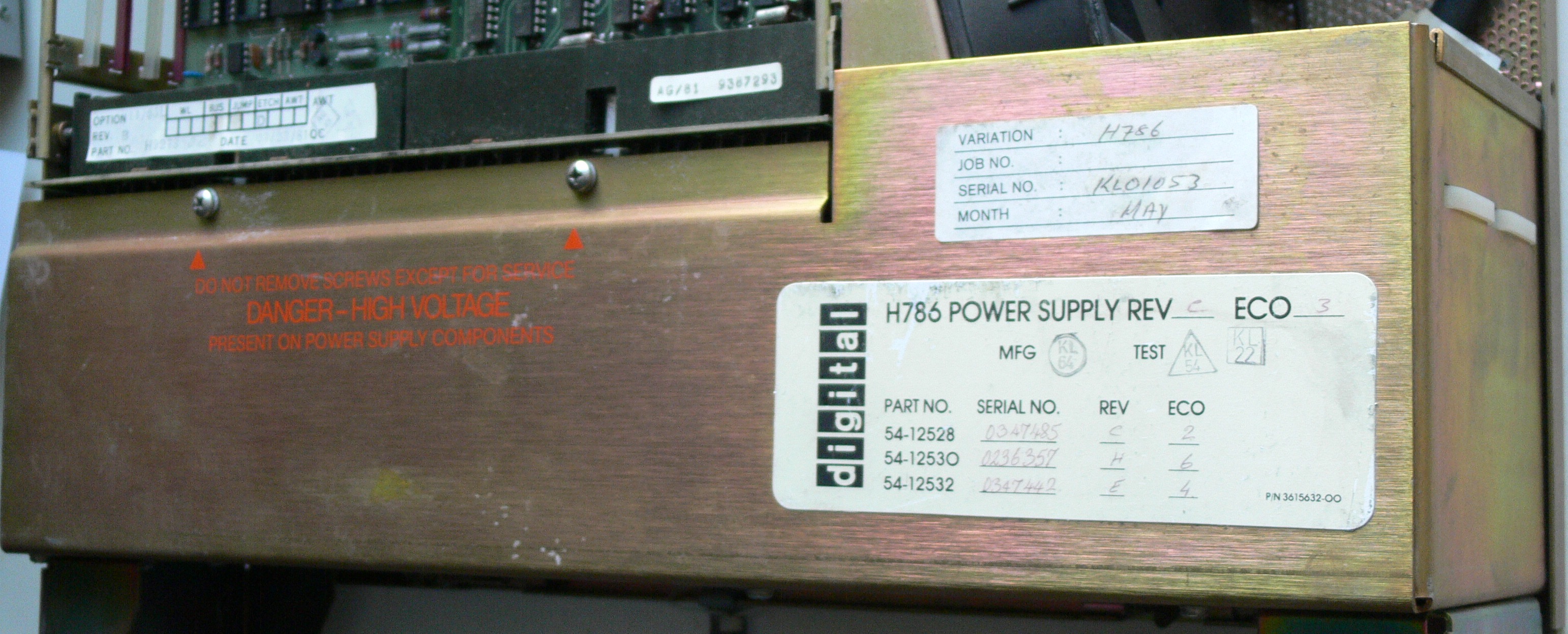

    H786 Power supply (used in BA11-N) PDP11/23 0 H786a.JPG (1097622 Byte)
    H800-W Connector block (wire-wrap)   0
    H800-F Connector block (solder-fork)   0
    H801 Connector block replaced by H800   0
    H802 Connector block   0
    H803 Module sockets   0
    H804 Module sockets   0
    H805 Connector pins    0
    H808 Connector block   0
    H810 Pistol grip wire-wrapping tool   0
    H811 hand unwrapping tool   0
    H812 hand unwrapping tool   0
    H813 hand unwrapping tool   0
    H814 hand unwrapping tool   0
    H820 grip clip   0
    H822 grip clip   0
    H825 hand crimping tool   0
    H826 hand crimping tool   0
    H830 Stack- on Reveting tool   0
    H856  Maintenance cable DR11 0
    H885-AA  Double SCSI-Connector    0
    H900 Mouting panel with power   0
    H901 Mouting panel   0
    H902 Switch and indicator panel    0
    H903 Analog digital panel
    H910A Mouting panels with power    0
    H911-j/-k Mouting panels Combination H020,H021,H803, 933 PDP16 0
    H911B-P Mouting panels   0
    H913 Mouting panel  PC11-A 0
    H913 Mouting panel  PC11-A 0
    H914 Mouting panel PC11-A 0
    H916 Mouting panel PC11-A 0
    H917 Mouting panel PC11-A 0
    H920 Module drawer PC11-A 0
    H921 Front panel for H920 PC11-A  0
    H923 Slides tracks for H920 PC11-A 0
    H925 module drawer PC11-A 0
    H930 system unit drawer PC11-A 0
    H933-C  Mouting panel (H803 blocks)  PDP11/45 0
    H933 Mouting panel (H808 blocks) PDP11/45 0
    H933-A 4-Slot system unit PDP11/45 0
    H933-B 4-Slot system unit PDP11/45 0
    H933-C 4-Slot system unit PDP11/45 0
    H933-CA 4-Slot system unit  PDP11/45 0
    H933-CB 4-Slot system unit  PDP11/45 0
    H933-D 4-Slot system unit PDP11/45 0
    H934-CB 9-Slot system unit PDP11/45 0
    H941-AA Mounting Panel Frame PDP11/45 0
    H941-BA 8-inch Deep cover for H941-AA PDP11/45 0
    H941-BB 11,4-inch Deep cover for H941-AA PDP11/45 0
    H950 Frame Assembly  PDP11/45 0
    H950-AA Cabinet Frame (standard size) PDP11/45 0
    H950-G cabinet table PDP11/45 0
    H950-H Short doors incl. mounting space PDP11/45 0
    H950-J Short doors incl. mounting space  PDP11/45 0
    H950-L Logo-Frame Panel  PDP11/45 0
    H952 Frame Assembly PDP11/45 0
    H952-AA End Panel PDP11/45 0
    H957 Frame Assembly PDP11/45 0
    H957-AA Cabinet Frame (short size) PDP11/45 0
    H960 Cabinet Assembly (standard size) PDP11/45 0
    H961 Cabinet Assembly (standard size)  PDP11/45 0
    H967 Cabinet Assembly (short size) PDP11/45 0
    H970 Free standing table PDP11/45 0
    H3006 8-Line RS232 Distribution panel   0
    H3020 DMF32 Multi-function distribution DMF32 0
    H3173-A Distribution Panel

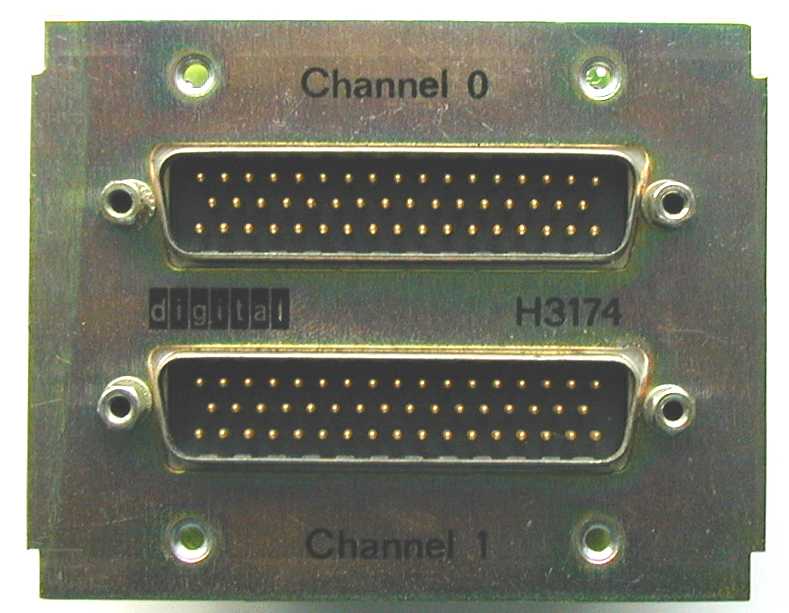

    H3174 CONNECTOR      H3174.jpg (44912 Byte)
    H3190 DZ11 Test connector, Turn around  DZ11 0

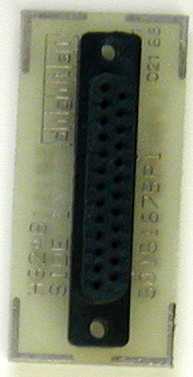

    H3248 LPBKMOD TEST CONN      H3248.jpg (7113 Byte)
    H3250 Test Connector (DMC11, DMP11, DMR11, DMV11)   KMV11
    H3251 Test Connector (DMP11, DMR11, DMV11)   DMP11
    H3254 Test Connector (DMP11, DMR11, DMV11)   DMP11
    H3255 Test Connector (DMP11, DMR11, DMV11)   DMP11
    H3257 Terminator Test Connector (DMP11, DMR11, DMV11)   DMP11
    H3258 Terminator Test Connector (DMP11, DMR11, DMV11)   DMP11
    H3259 Cable Turnaround test connector (DPV11, DZ32)   DPV11
    H3260 Cable Turnaround test connector (DPV11)   DPV11

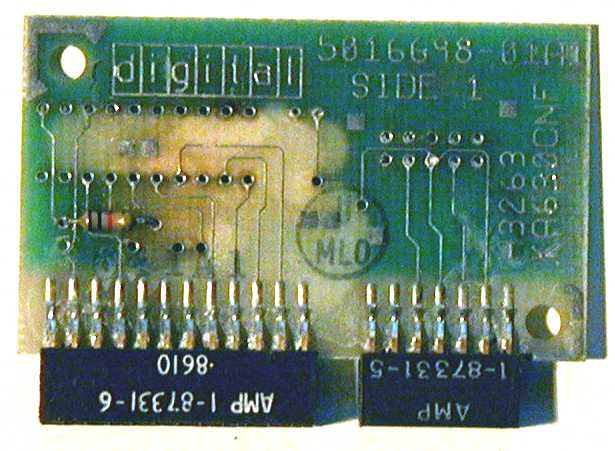

    H3263       H3263.jpg (39117 Byte)

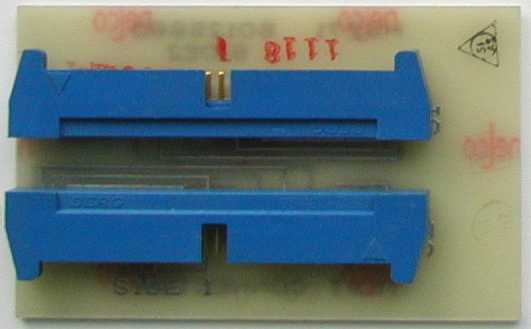

    H3271 Staggered Turnaround Test Connector (DZ11[-x]) (EIA)   DZ11 H3271.jpg (12173 Byte)
    H3272 Test Connector (DZ32)   DZ32
    H3273 Test Connector (DZ11-X)   DZ11
    H3274 Test Connector (DZ11)   DZ11

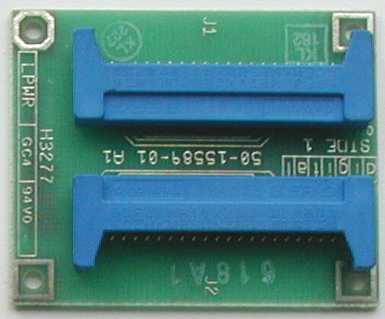

    H3277 TEST CONN      H3277.jpg (12603 Byte)
    H4005 Thickwire to AUI
    H7004-B 20mA Static Filter
    H7004-C EIA Static Filter
    H7082-AB Power supply for DEC-Server
    H7100 Power supply
    H7111 TODC Power supply
    H7104-C Power regulator, +2.5V 85A, used in VAX-11/750
    H7104-D Power regulator, +5V 120A, used in VAX-11/750
    H7105 Power regulator, +15V, used in VAX-11/750
    H7112 Battery charger
    H7420 Power supply   KD11/BA11
    H7422 Power supply   TU58
    H7440 Power supply   KD11/BA11 h7440.jpg (26055 Byte)
    H7441 Regulator module (PDP11/34)   KD11/BA11
    H7450 Power supply   KD11/BA11
    H7476 Regulator   TU58
    H7660A Power supply
    H7816-AA Netzteil für AlphaStation 3000/400
    H7819-AA Netzteil für VAX4000-60, VS46K oder SZ16   SZ16
    H7821-00 Netzteil für VAX3100-30   SZ12
    H7822-00 Netzteil für VAX-Server 3100, Model DV-31ETA-A
    H7822-00 Netzteil für VAX-Server 3100, Model DV-31ETA-A
    H7826-AA Power Supply DECStation 5120
    H7827-AA Netzteil
    H7835 Power supply (used in VT103 terminal)
    H7837 Netzteil for LA100
    H7847-AA Power Supply , laut Label 154W     H7847-AA.jpg (9802 Byte)
    H7848-BB Power Supply to TK50 Box   TK50
    H7861 Power supply (used in BA11-N)   BA11
    H7862 Power supply (used in Professional 300 series)   BA23

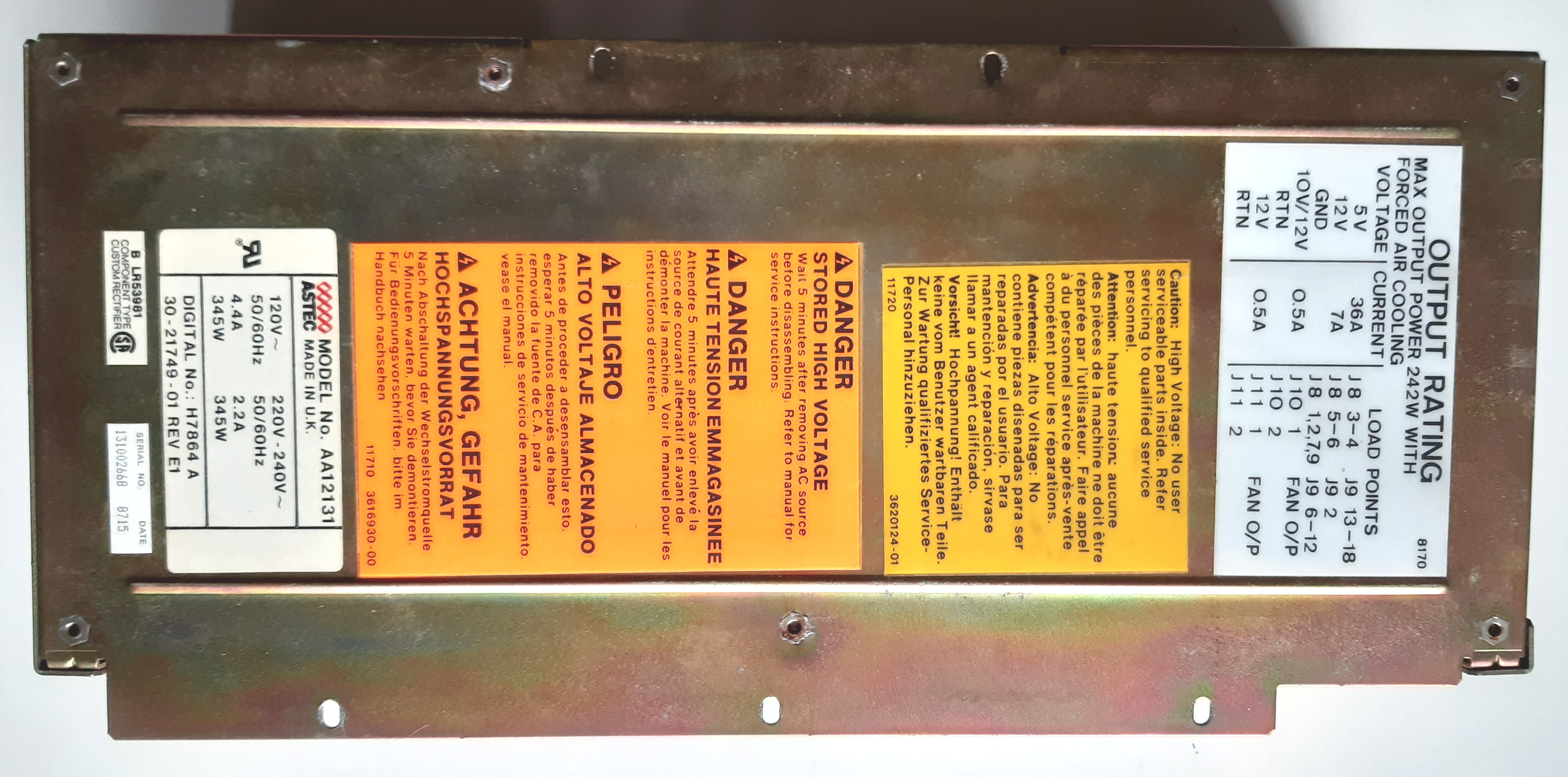

    H7864 Power Supply to BA23 Box   BA23
    H7864-A Power Supply to BA23 Box   BA23
    H7864-B Power Supply to BA23 VAX-Box   BA23
    H7868-B Power Supply to BA213 / BA215   BA213
    H7874-00 Power Supply to BA400 X-B9- B04 VAX   BA400
    H7876-AA Power Supply to BA213 / BA215   BA213
    H7868-B Power Supply to DEHUB-AX DEChub90   DEHUB
    H7883-AA Power Supply to Alphastation 3000, Leistung 830 Watt   AXP3000 Power Supply to Alphastation 3000 h7883-aa (3890 Byte)
    H7887-AA Power Supply to Alphastation 3000/300   AXP3000
    H7890-MA Power supply
    H7894-MA Power Supply to DEChub900   DEChub900 Power Supply to DEChub900 H7894-MA (310905 Byte)
    H8571-A Adapter MMJ auf DB25 (female)   MMJ6
    H8571-E Adapter MMJ auf DB25 (male)   MMJ6 H8571.jpg (2903 Byte)
    H8571-K Adapter MMJ auf DB25 (female)   MMJ6
    H8574-A SCSI low-density (Centronics) terminator   SCSI
    H8575-A 25pin RS232 connector to MMJ6   MMJ6
    H8584-AC MMJ6 zu MMJ9   MMJ6
    H8611 Test Connector (DH11)   DH11
    H8612 Test Connector (DV11)   DV11
    H8673-AA 20mA current Loop zu EIA Adapter
    H8800 Terminator Board   TU10

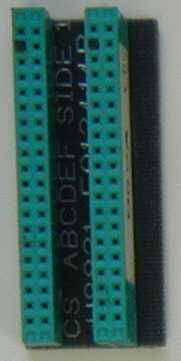

    H8821 Board interconnect 40pin, TEST CONN (PDP11/34)   KK11/FP11 H8821.jpg (6987 Byte)
    H8822 Board interconnect 40pin, TEST CONN (PDP11/34)   KK11
    H9270-A 4 x 4 Qbus backplane, Q18 (used in BA11-M), Q-BUS   DDV11-A
    H9270-Q 4 x 4 Qbus Backplane, Q22 (used in BA11-M), Q-BUS   DDV11-A
    H9273 Backplane jumpers   11/23
    H9273-A 4 x 9 Qbus backplane, Q18/CD   11/23
    H9275-A 4 x 9 Qbus backplane, Q22 (used in BA11-N)   BA11
    H9276-A 4 x 9 Qbus backplane, Q22/CD (used in BA11-N)   BA11
    H9278-A 4 x 8 Qbus backplane (used in BA23),3 slots (1-3) Q22/CD, 5 slots (4-8) Q22   BA11
    H9281-BA 2 x 4 Qbus backplane, Q18 (used in BA11-VA)   BA11
    H9281-BB 2 x 8 Qbus backplane   BA11
    H9281-C 2 x 12 Qbus Backplane   BA11
    H9281-QA 2 x 4 Qbus backplane, Q22, dual height   BA11
    H9281-QB 2 x 8 Qbus backplane, Q22, dual height   BA11
    H9281-QC 2 x 12 Qbus backplane, Q22, dual height   BA11
    H9502 MAG TAPE DRIVE UNIT   11/780
    H9602-H CPU Expander (Unit Assy)   11/780
    H9604-B 40" UNIBUS-VAX Field upgrade kit   RK711
    H9542 40" Frame Assembly   RK711
    H9544 40" end panel Assy   RK711

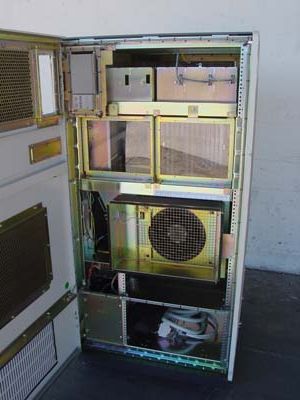

    H9567-CA power supply und Gehäuse für VAX6000-300   VAX6300 H9567-CA-h.jpg (23238 Byte)
    HSD05-AA StorageWorks DSSI-Controller
